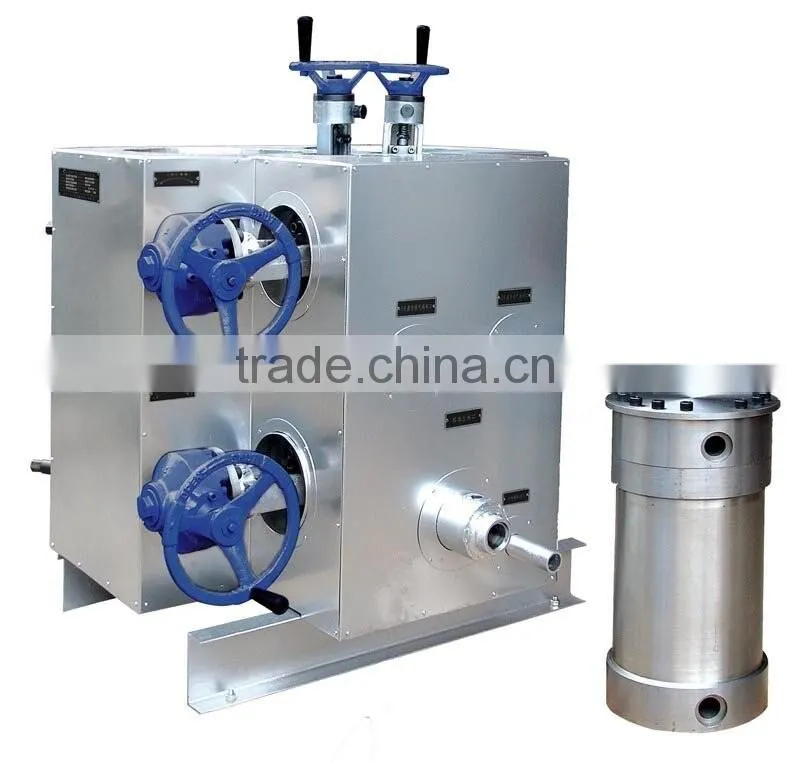

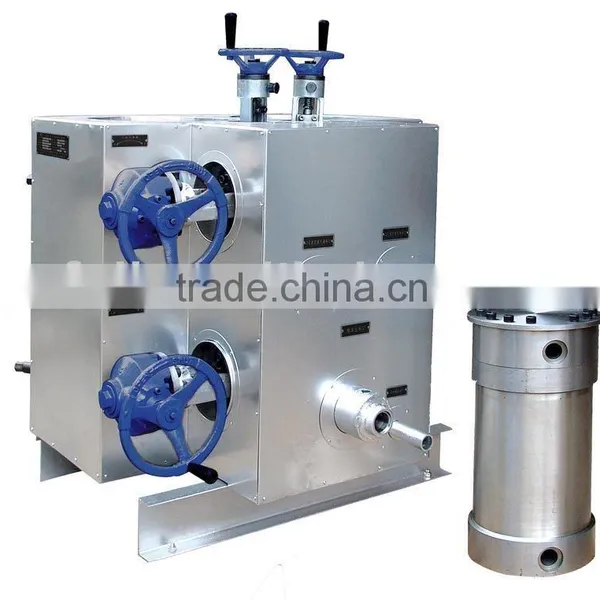

Vertical melt filter,Melt filter for CPF Spining line,Polymer Filter
It is used in the chemical fiber field. There are many chemical fiber factories all over China use our filter to select the granule of fixed filter rating and filter impurities. According to your requirement, we can supply you the exact products.
It is a nonstandard article. Hence, further understanding will lead further cooperation. If you have further interest, please let us know.
1. Advantages: (1). High filter precision
(2). Widely applicable
(3). High efficiency
2. Applications: POY, FDY, Nylon (PA6, PA66, PA11), compound fiber of nylon and polyester, PP spun-bonded non-woven, melt-blown non-woven, PP, PE spinning fiber, BOPET stretch film, spinning polyurethane fibers, viscose fiber, plant fiber, etc.
3. Heating Method: (heat transfer)oil recirculation heating, biphenyl recirculation heating, electric heating of heat transfer oil, or electric heating if biphenyl.
4. Technical Parameters:
Model |
Diameter (mm) |
Filter Area (m2) |
Rated Flow(kg/h) |
Main Specification |
System Pressure |
Biphenyl Jacket Pressure |
Allowable Pressure Differentia |
Operating Temperature |
||||||
PET |
PA, PP, PE |
H |
H1 |
H2 |
B |
B1 |
A |
|||||||
CPF-PT-0.6C |
30 |
0.6 |
75-150 |
50-110 |
1100 |
User-Defined |
User-Defined |
770 |
850 |
1000 |
Max 25Mpa |
≤0.6Mpa |
Max 6Mpa |
≤310 |
CPT-PT-1.05C |
30 |
1.05 |
200-300 |
150-220 |
1100 |
770 |
950 |
1050 |
||||||
CPT-PT-1.26C |
30 |
1.26 |
250-350 |
180-250 |
1150 |
770 |
950 |
1050 |
||||||
CPT-PT-1.8 CPT-PT-1.8C |
40 |
1.8 |
300-420 |
220-300 |
1200 |
900 |
1310 |
1100 |
||||||
CPT-PT-2.5C |
40 |
2.5 |
480-600 |
330-420 |
1250 |
900 |
1310 |
1100 |
||||||
CPT-PT-3.5C |
50 |
3.5 |
700-900 |
490-630 |
1250 |
950 |
1530 |
1200 |
||||||
CPT-PT-4.5C |
50 |
4.5 |
800-1000 |
600-780 |
1250 |
950 |
1530 |
1200 |
||||||
CPT-PT-5.5C |
50 |
5.5 |
900-1100 |
650-800 |
1250 |
1050 |
1580 |
1280 |
||||||
CPT-PT-6.5C |
65 |
6.5 |
1000-1200 |
700-850 |
1300 |
1050 |
1580 |
1280 |
||||||
CPT-PT-7.5C |
65 |
7.5 |
1200-1500 |
770-910 |
1350 |
1100 |
1650 |
1350 |
||||||
CPT-PT-9.5C |
65 |
9.5 |
1550-2000 |
850-1000 |
1350 |
1200 |
1650 |
1350 |
||||||
High-Tech and Science results certificates
Iso 9001 international quality certificate
Patents (we have 20 patents which are authorized by State intellctual property office of P.R.C)
Now we start a representative office in Xiaoshan.Hangzhou.we warmly welcome your visit in Hangzhou and Wenzhou!
