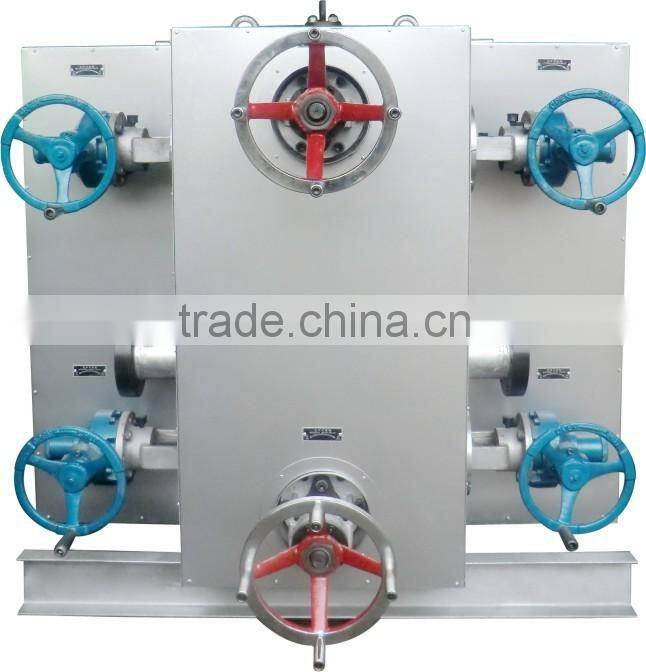

Stainless Steel Vertical Continuous Switch Melt Strainer
It is used in the chemical fiber field. There are many chemical fiber factories all over China use our filter to select the granule of fixed filter rating and filter impurities. According to your requirement, we can supply you the exact products.
It is a nonstandard article. Hence, further understanding will lead further cooperation. If you have further interest, please let us know.
1. Advantages: (1). High filter precision
(2). Widely applicable
(3). High efficiency
(4).Ce and ISo9001 Approved
2. Applications: Precision filter of recycled PET.PP.PE.spinning Poy Pet flake one-step spnning PF non-woven fabics etc.
3. Heating Method: electric heating of heat transfer oil, electric heating of biphenyl. bipheny static heating , biphenyl recirculation heating.
4. Technical Parameters:
Model |
Diameter (mm) |
Filter Area (m2) |
Rated Flow(kg/h) |
Main Specification |
System Pressure |
Biphenyl Jacket Pressure |
Allowable Pressure Differentia |
Operating Temperature |
||||
PET |
PP, PE |
H |
H1 |
H2 |
A |
|||||||
CPF-PT3-5.5C |
40 |
5.5/3.5 |
260-350 |
320-400 |
1250 |
User-Defined |
User-Defined |
2400 |
Max 25Mpa |
≤0.6Mpa |
Max 6Mpa |
≤310 |
CPF-PT3-7.5C |
50 |
7.5/4.5 |
400-520 |
550-650 |
1350 |
2500 |
||||||
CPF-PT3-9.5C |
50 |
9.5/5.5 |
500-600 |
650-750 |
1350 |
2600 |
||||||
CPF-PT3-12C |
65 |
12/7.5 |
650-750 |
800-900 |
1500 |
2600 |
||||||
| CPF-PT3-15C | 65 | 15/9.5 | 800-1000 | 950-1100 | 1760 | 2650 | ||||||
| CPF-PT3-19C | 65 | 19/12 | 1100-1500 | 1350-1450 | 2080 | 2650 | ||||||
High-Tech and Science results certificates
Iso 9001 international quality certificate
Patents (we have 20 patents which are authorized by State intellctual property office of P.R.C)
