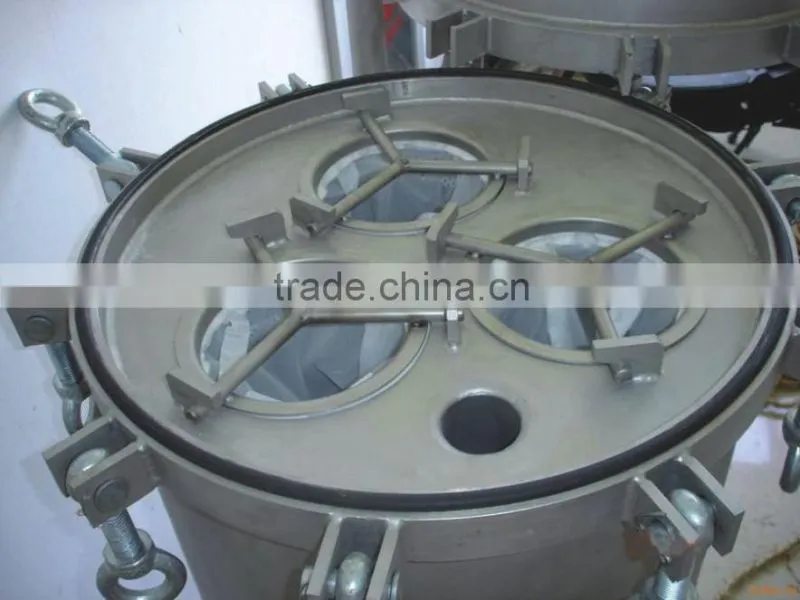

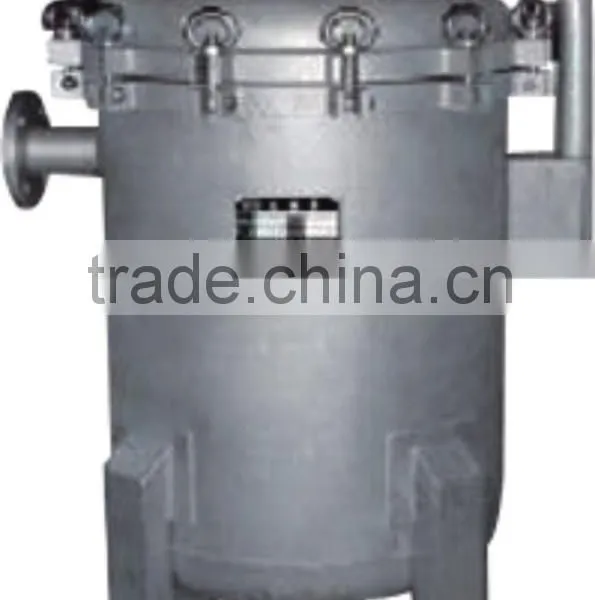

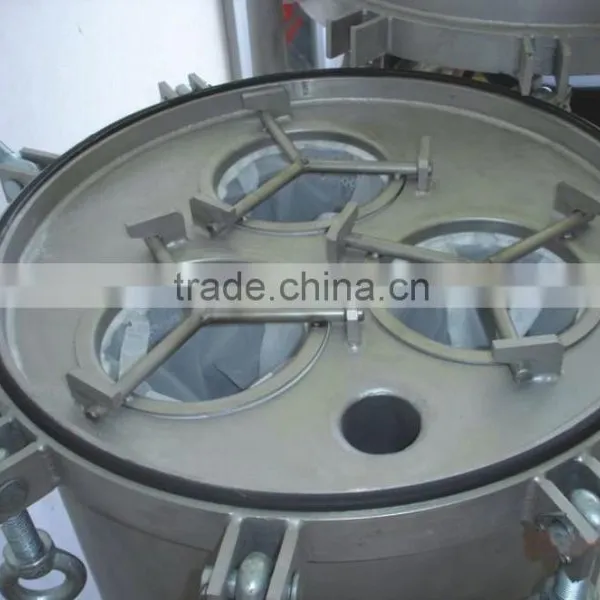

Bag type filter
Introduction: Itis sa pressure filtration unit mainl comprised by filter cylinder, filter cylinder cover, quick-opening mechanism, stainless steel filter bag reinforced netting basket and so on, its filterin gliquid is flowed into teh filter bag through the side entrance pipe at the filter case, the filter bag is mounted in teh reinforced netting baasket, the liquid is qualified after penetrating teh filter bag with required fineness degree while the impurities is blocked by teh filter bag. It is very convinent to change the filterbag, and teh filtering is basicallu consuming no materials.
Application: Industrial water, syrup, resin, oil ink, industrial waste water, juice,edible oil, waxes, electroplating liquid, milk, mineral water, hot disolving agent, emulsion, beer, plant oil, medicines, chemical drugs, petroleum products and so on.
Features:
- The side leakage probablity is rare, to greatly ensure the quality of filtration.
- The bag filtration van bear heavier working pressure, less pressure loss, low operating cost, obvious energy saving.
- The filter precision is gradually increased, at present reachable to 0.5µm.
- The bag filtration has large handling capacity, small volume adn large impurities storage.
- Based on the work principle and structure of bag filtering system, it is easy and quick to change the filter bag, moreover, it i sfree from cleansing, saces labor and time.
- After cleansing, the filter bag can be repeatedly used to save the cost.
- The bag filter has a wide application range, flexible usage and varied modes of installation.
Advantages: 1. high efficient
2. power-effective
It is used filter impurities. According to your requirement, we can supply you the exact products.
It is a nonstandard article. Hence, further understanding will lead further cooperation. If you have further interest, please let us know.
|
|
Materials of filter bag | Filtering area | Filtering precision | Nominal pressures(internal)Mpa | Work presssure difference | Nominal diameter(mm) | Working temperature(℃) | Sealing materials |
|
SS304 321 316L CS |
Pepolymer filter bag | ~8m2 | 1~200μ | PN1.0~5.0 | 1.0kgf/cm2 | DN 15~500 | ≤100 |
PTFE NBR Silicon rubber Metal wound gasket |
| Nylon filter bag | ~8m2 | 25~400μ | PN1.0~5.0 | 1.0kgf/cm2 | DN 15~500 | ≤100 | ||
| PP filter bag | ~8m2 | 1~100μ | PN1.0~5.0 | 1.0kgf/cm2 | DN 15~500 | ≤80 | ||
High-Tech and Science results certificates
Iso 9001 international quality certificate
Patents (we have 20 patents which are authorized by STATE INTELLECTUAL PROPERTY OFFICE OF THE P.R.C)
Exhibition
