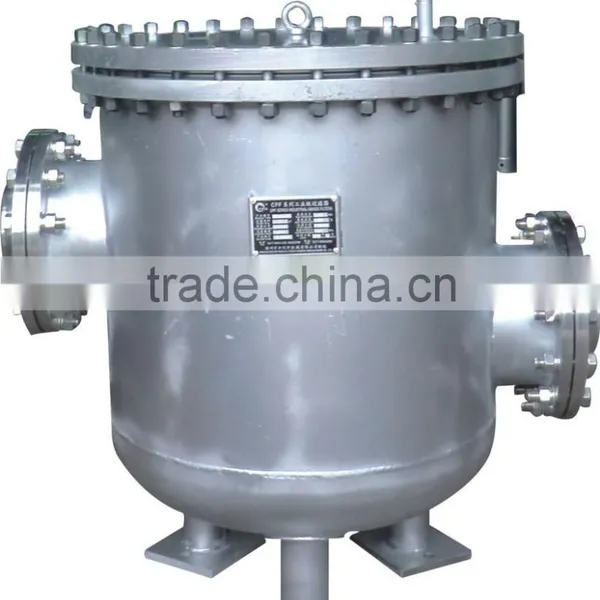

Basket type Liquid Filter

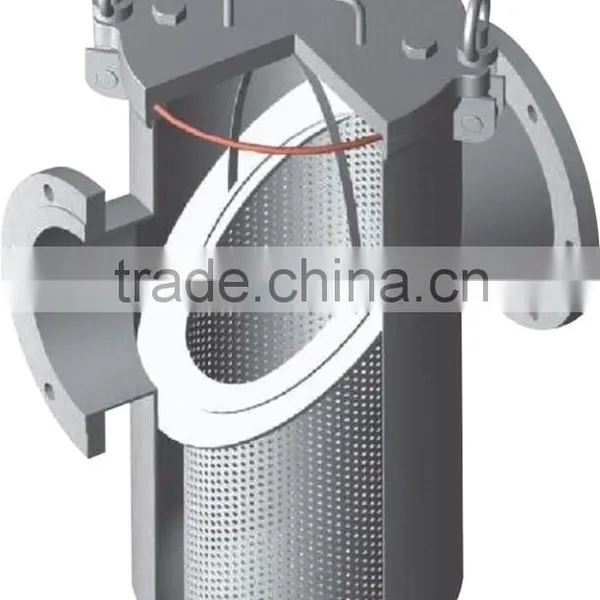

Introduction: it is applied to oil or other liquid pipelines, its filter structure is different from others, because its shape is just like a basket. It is installed in the pipeline to remove the large solid impurities in the liquid and enable the machinery(including compressor, pumps) and instrumentation to be normallly worked or operated, attain a result of stablize the process and safequard the safety production. When the liquid runs into the filter drum with a certain sepcification of filter, its impurities is blocked, and thus the filtered liquid is discharged from the outlet of the filter, when cleaning is required, just take off the detachable drum and re-install after cleansing, therefore, it is very convenient for operating and maintaining.
Application:weak corrosion medium for chemical or petrochemical production such as warter.ammonium.oil rrosive medium for chemical production such as casutic da ncentrated(diluted sulfuric acid.carbonic acid.acertic acid.acid esters and so on
Advantages: 1. high efficient
2. power-effective
It is used filter impurities. According to your requirement, we can supply you the exact products.
It is a nonstandard article. Hence, further understanding will lead further cooperation.
If you have further interest, please let us know.
Features:
- Divided into two types, i.e., with jacket or without jacket.
- The materials of filter can be designed according to the needs of customers.
- Its outer surface is treatment by shot blastign or polishing, beautiful & elegant, while its welding seam is treated of acid cleaning and passivation, so as to increase its anti-corrosion capacity.
- The relative position of inlet/outlet and installation height can be customized to suit the specific requirements of applications.
Technical parameters
| Material of main body | the main form | Filtering area(m2) | Filtering precision |
Nominal pressure (internal) MPa |
Nominal pressure (jacket) |
Work pressure difference |
Nominal diameter (mm) |
Working temperature (℃) |
Sealiing material |
| SS304 | insulation jacket ype | ~8 m2 | 25μ~ | PN1.0~5.0 |
≤0.60Mpa | 2kgf/cm2 | DN15~500 | -80~+350 | PTFE |
| 321 | ordinary structure type | ~8 m2 | 25μ~ | 2kgf/cm2 | ordinary temperature+80 | NBR | |||
| 316L | Silicon rubber | ||||||||
| CS | Metal wound gasket |
High-Tech and Science results certificates
Iso 9001 international quality certificate
Patents (we have 20 patents which are authorized by STATE INTELLECTUAL PROPERTY OFFICE OF THE P.R.C)
Exhibition
