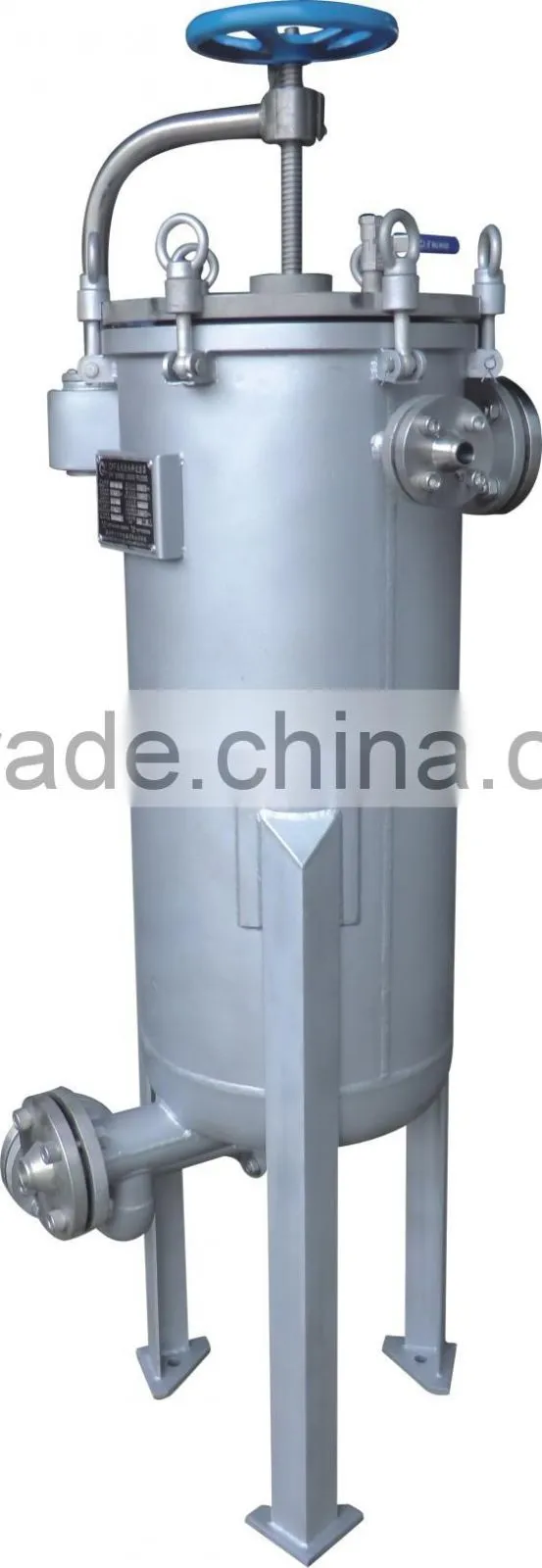

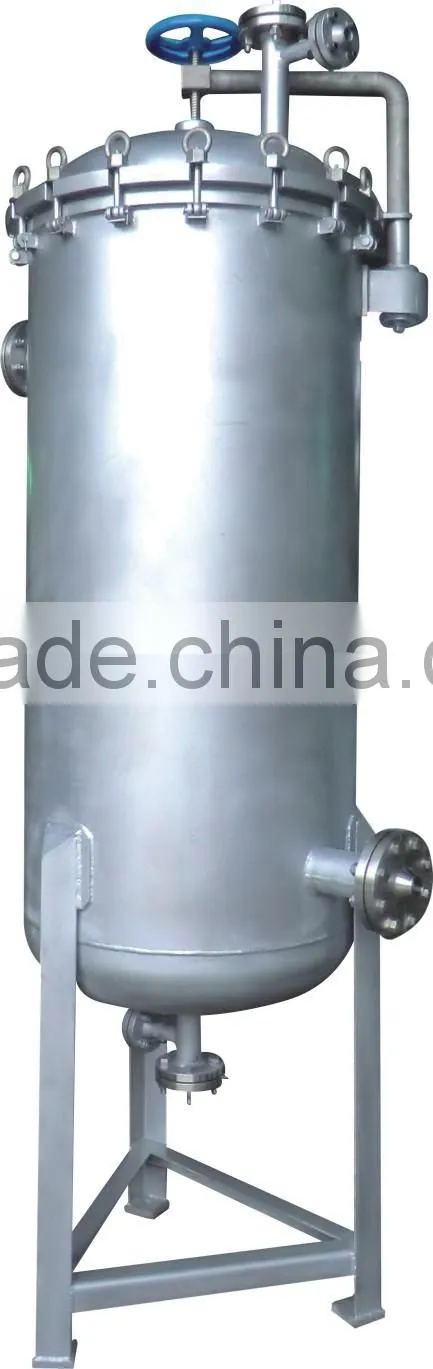

Jacketed Liquid Filter,Filtration System for Chemical Fiber Production Line,
Introduction:
it is a double structure, the space of the interlayer can pass through steam or heat conducting oil to retain or increase the temperature of liquid, prevent from solidification of liquid, improve the filtering speed of viscous liquid, or suit the needs of temperature applicable for next work procedure.
Application:
Filtration of Caprolactam during nylon polymerization process, filtration of acid liquor. concentrated liquor and modifier, PVA liquor, coating, paint, caustic soda, soda ash, concentrated(diluted)sulfuric acid, carbonic acid, aldehyde acid.amines, hydrocarbons and so on.
Advantages: 1. high efficient
2. power-effective
3.CE and ISO9001 approved
4.Warranty 1 year.
It is used filter impurities. According to your requirement, we can supply you the exact products.
It is a nonstandard article. Hence, further understanding will lead further cooperation. If you have further interest, please let us know.
Technical parameterers list
| Material of main body | Form of cartridge | Filtering area(m2) | Filtering precision |
Nominal pressure (internal) MPa |
Nominal pressure (jacket) |
Work pressure difference |
Nominal diameter (mm) |
Working temperature (℃) |
Sealiing material |
| SS304 | Metal mesh pleated wave type | ~60 m2 | 3μ~ | PN1.0~5.0 |
≤0.60Mpa | 25kgf/cm2 | DN15~500 | -80~+350 | PTFE |
| 321 | Filter basket type | ~8 m2 | 25μ~ | 2kgf/cm2 | -80~+350 | NBR | |||
| 316L | Wire-wound filter cartridge | ~12.5 m2 | 1μ~ | 2kgf/cm2 | -80~+150 | Silicon rubber | |||
| CS | metal sintering type | ~12.5 m2 | 1μ~ | 25kgf/cm2 | -80~+350 | Metal wound gasket |
