Product Details
| Place of Origin: | China | Brand Name: | Proge led light stage curtain | Model Number: | PG-ISC-P16 |
| Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
| Pixels: | 16mm | Screen Dimension: | led light stage curtain |
Product Description

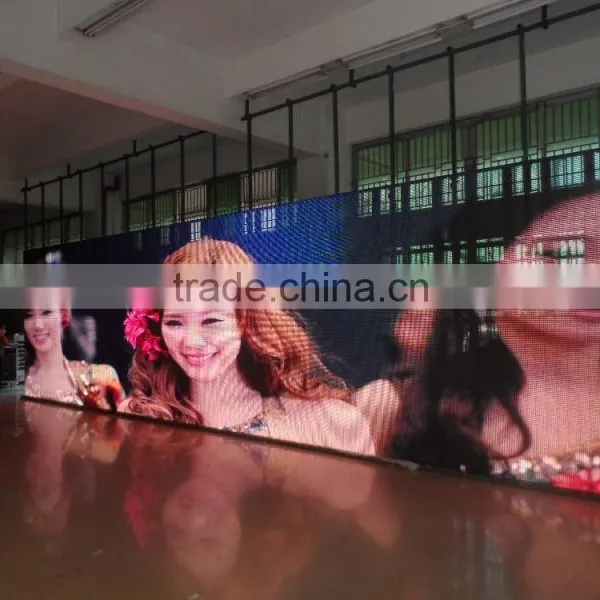

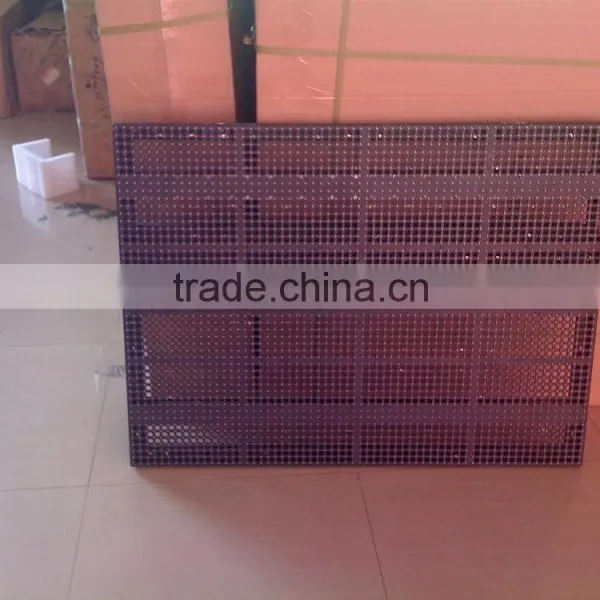

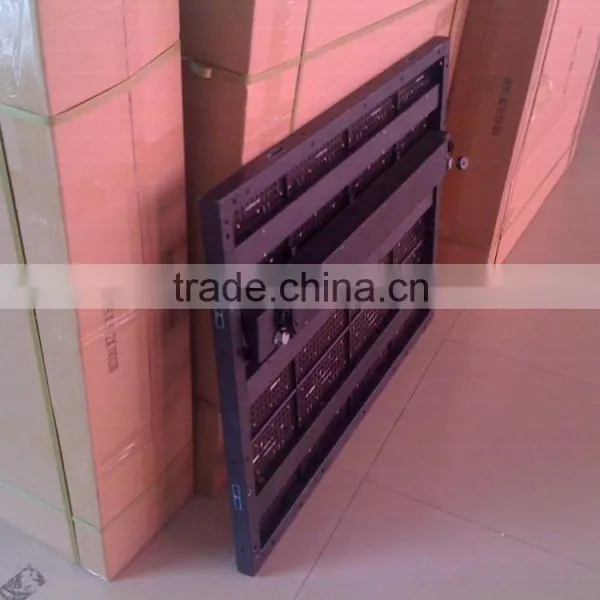

low price p16 indoor full color led light stage curtain
Features:
*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA
Main Application: Stage and outdoor fixed installation
Specification:
| Parameter | Unit | Value |
| Pitch | mm | 16 |
| Brightness | nits | 1,000 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 120(-60~ +60) |
| Viewing angle – Vertical (50% brightness) | deg. | 120(-60~ +60) |
| Cabinet weight | kg | 20 |
| Cabinet width | mm | 768 |
| Cabinet height | mm | 1024 |
| Cabinet depth | mm | 65 |
| Cabinet area | sq. m. | 0.48 |
| Cabinet material | Epoxy paint coated Aluminum Strip | |
| Transparent Rate | 25% | |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| International Protection | IP | IP31 |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel | 40x40 | |
| Dot per panel | 1,600 | |
| Dot per sq. meter | 6,400 | |
| LED per sq. meter | 6,400 | |
| Recommended minimum viewing distance | m | 9.5 |
| Drive Mode | Constant current drive Static | |
| Colors | 281 Trillion | |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 1,000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/ panel | 200 |
| Input power (typical) | Watts/ panel | 140 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Mounting System | Hanging/Fix Installation |
