Low Resolution P12.5 Indoor Full Color Smd Led Media Mesh

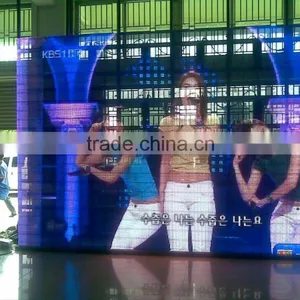

Low Resolution P12.5 Indoor Full Color Smd Led Media Mesh thumbnail-1
Low Resolution P12.5 Indoor Full Color Smd Led Media Mesh thumbnail-2
Low Resolution P12.5 Indoor Full Color Smd Led Media Mesh thumbnail-3

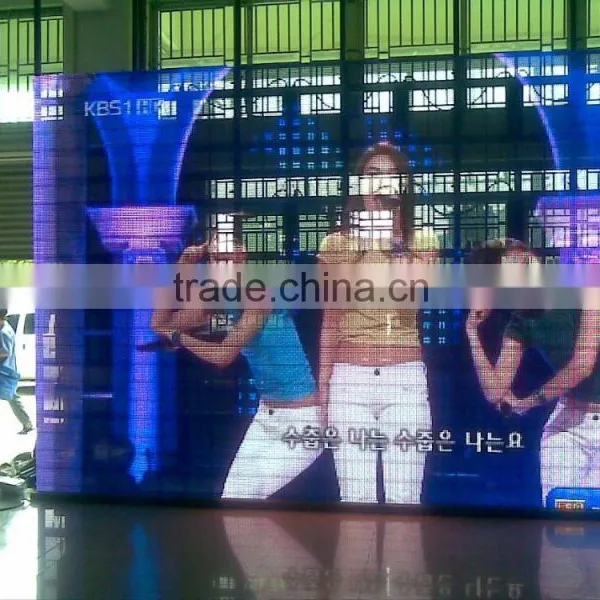

Low Resolution P12.5 Indoor Full Color Smd Led Media Mesh photo-1
Low Resolution P12.5 Indoor Full Color Smd Led Media Mesh photo-2
Low Resolution P12.5 Indoor Full Color Smd Led Media Mesh photo-3
Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Proge led media mesh
Model Number:
PG-OSC-P12.5
Contact Supplier Request Quote Chat Now
Shenzhen Proge Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Proge led media mesh
Model Number PG-OSC-P12.5
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 12.5mm
Screen Dimension led media mesh

low resolution p12.5 indoor full color smd led media mesh

Features:

*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA
Main Application: Stage and outdoor fixed installation



Specification:

Parameter Unit Value
Pitch mm 12.5
Brightness nits 6,000
Color temperature deg. K 6,500
Viewing angle – Horizontal (50% brightness) deg. 120(-60~ +60)
Viewing angle – Vertical (50% brightness) deg. 120(-60~ +60)
Cabinet weight kg 6
Cabinet  width mm 800
Cabinet  height mm 600
Cabinet depth mm 65
Cabinet  area sq. m. 0.48
Cabinet material   Epoxy paint coated Aluminum Strip
Transparent Rate   25%
Operating temperature range deg. C -30 to +60
Humidity operating RH 10% ~ 90%
International Protection IP IP65/43
Pixel type and configuration R/G/B 3in1 SMD
Resolution per panel   40x40
Dot per panel   1,600
Dot per sq. meter   6,400
LED per sq. meter   6,400
Recommended minimum viewing distance m 9.5
Drive Mode   Constant current drive Static
Colors    281 Trillion
Grey scale (linear) Levels 65,536 levels per color
Brightness control Levels 100
Contrast ratio   1,000:1
Processing depth bit 16
Video frame rate Hertz 60
Display refresh rate Hertz 180~3,000
Input voltage (nominal) VAC 110 to 240
Input power frequency Hertz 50 to 60
Input power (max) Watts/ panel 200
Input power (typical) Watts/ panel 140
Lifetime (50% brightness) Hours ≥100,000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 525~530
Blue wavelength (dominant) nm 470~475
Multimedia data format   DVI,MPG,AVI,WMV,RM etc.
Mounting System   Hanging/Fix Installation



low resolution p12.5 indoor full color smd led media mesh

 low resolution p12.5 indoor full color smd led media mesh



low resolution p12.5 indoor full color smd led media mesh
