XCMG GR100 Small Motor Grader for Sale

Name: XCMG GR100 Small Motor Grader for Sale
Brand: XCMG
Availability: InStock

FOB Price

US$ 20,000 - 60,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Forward Speed(km/h)	39
Reverse Speed(km/h)	25	Place of Origin	Jiangsu, China
Brand Name	XCMG	Model Number	GR100
Weight	7000kg	Dimension(LWH)	688023753150mm
Certification	ISO, CE	After-sales Service Provided	Overseas service center available

XCMG GR100 small motor grader for sale

Product Description

Detail Specification of XCMG new motor grader blade for sale

Basic specification
Engine model	4BT3.9
Rated power/speed	75/2400kw/rpm
Dimension(LxWxH)	6880×2375×3150mm
Operating weight(Standard)	7000kg
Performance specification
Travelling speed ,forward	5,10,20,39km/h
Travelling speed ,reverse	8,25km/h
Tractive force(f=0.75)	41.6KN
Max. gradeability	20%
Tire inflation pressure	350KPa
Working hydraulic pressure	16MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box
Frame articulation angle	±27°
Min. turning radius using articulation	5.9m
Blade
Maximum lift above ground	300mm
Maximum depth of cutting	350mm
Maximum blade position angle	45°
Blade cutting angle	28°—70°
Circle reversing rotation	120°
Moldboard width X height	3048×500mm

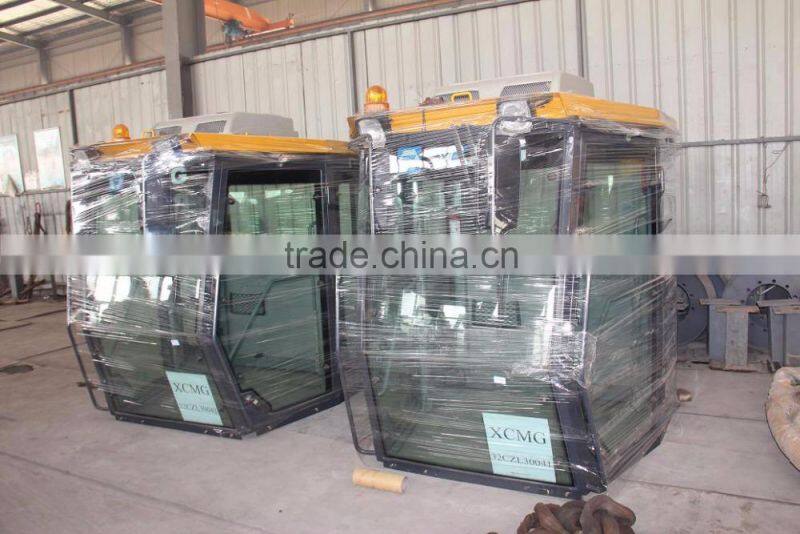

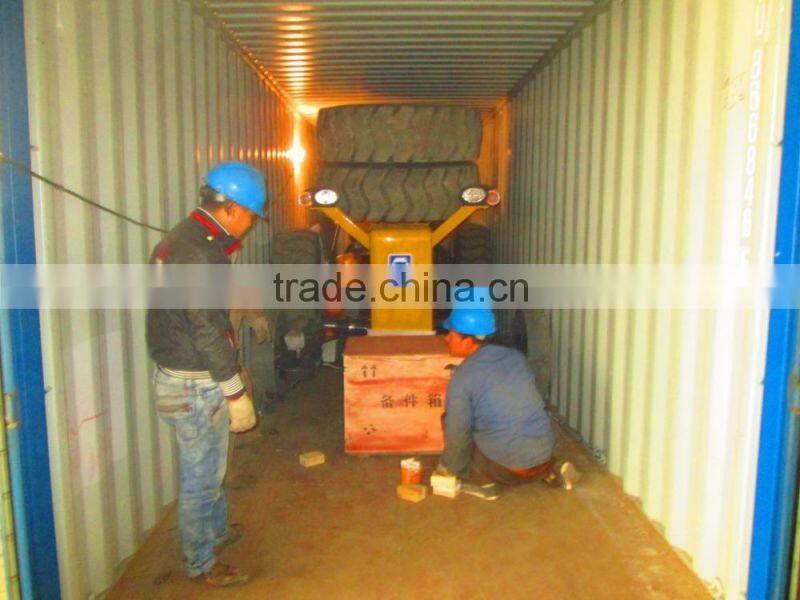

Packaging & Shipping
