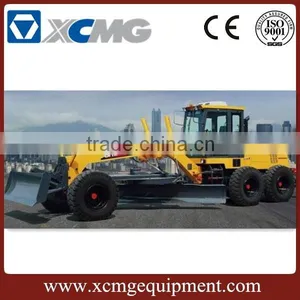

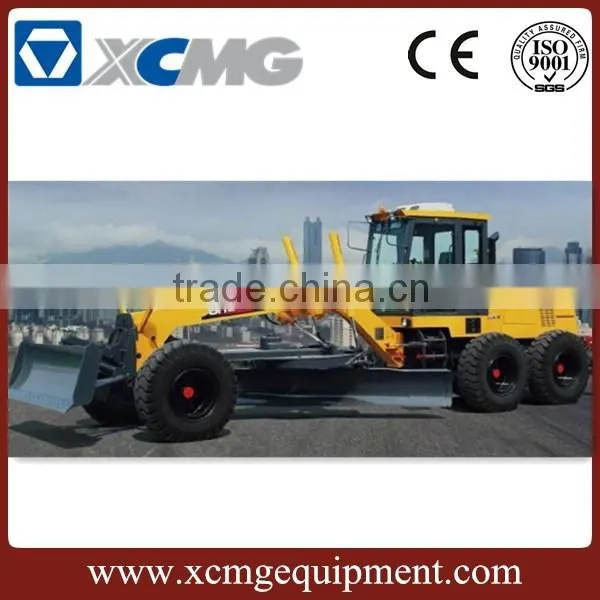

XCMG Motor Grader Gr215 Made in China

Name: XCMG Motor Grader Gr215 Made in China
Brand: XCMG
SKU: 124866037
Availability: InStock

US$ 20,000 - 60,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Forward Speed(km/h):

Reverse Speed(km/h):

Xiamen Xinlongteng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Lianyuangang

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Forward Speed(km/h) 38

Reverse Speed(km/h) 23

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number GR215

Weight 16500kg

Dimension(L*W*H) 8970*2625*3470mm

Certification ISO, CE

After-sales Service Provided Overseas service center available

Product Description

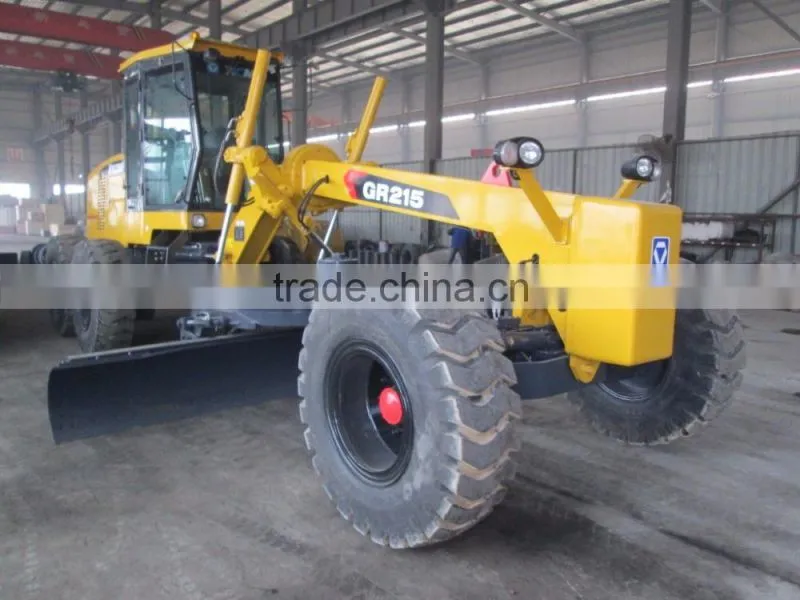

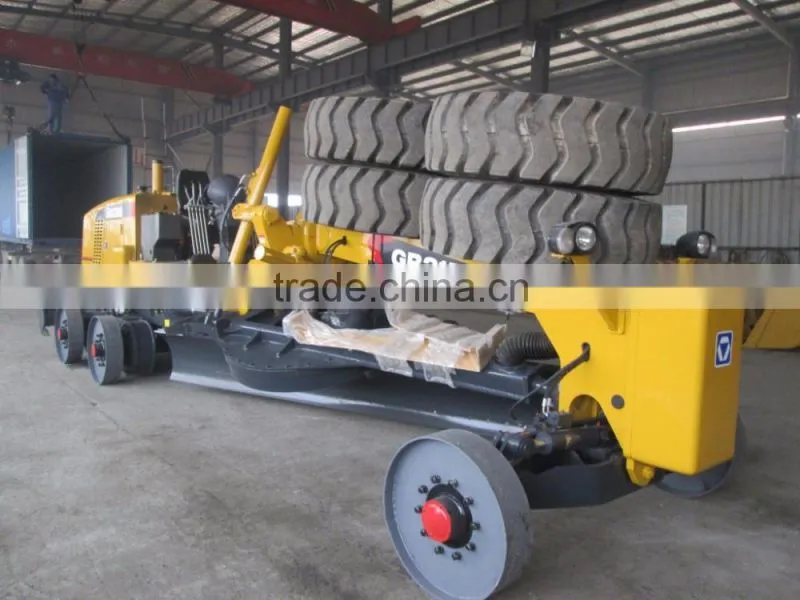

XCMG motor grader gr215 made in China

Detail Specification of XCMG motor grader gr215 made in China

Basic specification
Engine model	6CTAA8.3 6CTA8.3
Rated power/speed	153kW/2200rpm 160kW/2200rpm
Dimension(LxWxH)	8970×2625×3470mm
Operating weight(Standard)	16500kg
Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.75)	82KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Blade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	4270×610mm
