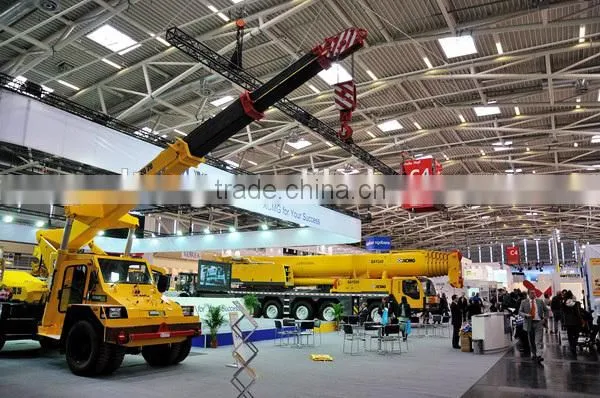

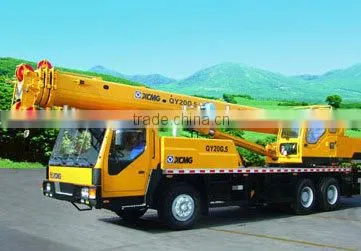

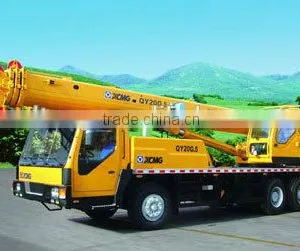

XCMG Factory Price Brand New 20 Ton Truck Crane Quality Choice

Name: XCMG Factory Price Brand New 20 Ton Truck Crane Quality Choice
Brand: XCMG
SKU: 124866043
Availability: InStock

US$ 60,000 - 100,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

construction,agriculture,forestry,railway,ports,roads,electricity

Rated Loading Capacity:

20t

Xiamen Xinlongteng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Lianyuangang

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction,agriculture,forestry,railway,ports,roads,electricity

Rated Loading Capacity 20t

Rated Lifting Moment 860kN.m

Max. Lifting Load 20 ton

Max. Lifting Height 42.12m

Span 5.4m

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number QY20B.5

Certification ISO9001

Warranty 1 Year

After-sales Service Provided Overseas service center available

Product Description

Detail Specification of XCMG Factory Price Brand New 20 Ton Truck Crane

Dimension	Unit	QY20B.5
Overall length	mm	12400
Overall width	mm	2500
Overall height	mm	3300
Weight
Total weight in travel	kg	26020
Front axle load	kg	6900
Rear axle load	kg	19120
Power
Engine model		SC8DK260Q3, WD615.327
Engine rated power	kW/(r/min)	192/2200 198/2200
Engine rated torque	N.m/(r/min)	1100/1400 1150/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	20
Min. ground clearance	mm	270
Approach angle	°	21
Departure angle	°	11
Max. grade ability	%	35
Fuel consumption for 100km	L	≈35
Main performance
Max. rated total lifting capacity	t	20
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.385
Max. lifting torque	kN.m	860
Base boom	m	10.06
Fully extended boom	m	32.76
Fully extended boom+jib	m	42.12
Longitudinal outrigger span	m	4.97
Lateral outrigger span	m	5.4
Working speed
Boom luffing time	s	75
Boom full extension time	s	95
Max. swing speed	r/min	3
Max. speed of main winch (single rope)	m/min	100
Max. speed of aux. winch (single rope)	m/min	100
