XCMG Function of China Motor Grader Blades

Name: XCMG Function of China Motor Grader Blades
Brand: XCMG
SKU: 124866085
Availability: InStock

Xiamen Xinlongteng Machinery Co., Ltd.

US$ 20,000 - 60,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Forward Speed(km/h):

Reverse Speed(km/h):

Payment & Shipping

Payment Methods:

Port of Shipment:

Lianyuangang

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Forward Speed(km/h) 38

Reverse Speed(km/h) 23

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number GR260

Weight 24000kg

Dimension(L*W*H) 10280*3100*3550mm

Certification ISO, CE

After-sales Service Provided Overseas service center available

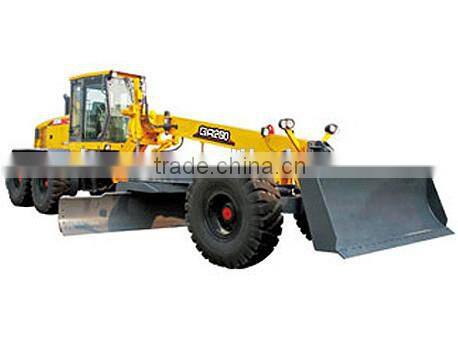

GR260 XCMG function of China motor grader blades

Product Description

Detail Specification of XCMG China GR260 motor grader blades

Basic specification
Engine model	6CTA8.3—C260
Rated power/speed	194kW/2200rpm
Dimension(LxWxH)	10280×3100×3550mm
Operating weight(Standard)	24000kg
Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.8)	132KN
Max. gradeability	36%
Tire inflation pressure	350 MPa
Working hydraulic pressure	18 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	Left / Right 50°
Max. lean angle of front wheels	Left / Right 17°
Max. oscillation angle of front axle	Up / down 15°
Max. oscillation angle of balance box	Before / after 15
Frame articulation angle	Left / Right 27°
Min. turning radius using articulation	8.3m
Blade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	4572×787mm
