XCMG Road Grader GR165 Motor Grader Manufacturer

Name: XCMG Road Grader GR165 Motor Grader Manufacturer
Brand: XCMG
SKU: 124866047
Availability: InStock

Xiamen Xinlongteng Machinery Co., Ltd.

US$ 20,000 - 60,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Forward Speed(km/h):

Reverse Speed(km/h):

Payment & Shipping

Payment Methods:

Port of Shipment:

Lianyuangang

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Forward Speed(km/h) 38

Reverse Speed(km/h) 23

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number GR165

Weight 15000kg

Dimension(L*W*H) 8900*2625*3470mm

Certification ISO, CE

After-sales Service Provided Overseas service center available

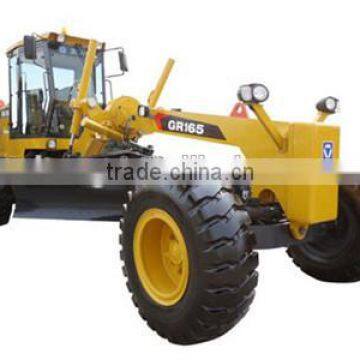

XCMG GR165 tractor road grader blade

Product Description

Detail Specification of XCMG Road Grader GR165 Motor Grader Manufacturer

Basic specification
Engine model	D6114
Rated power/speed	125kW/2300rpm
Dimension(LxWxH)	8900×2625×3470mm
Operating weight(Standard)	15000kg
Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.75)	77KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Biade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	3965×610mm
