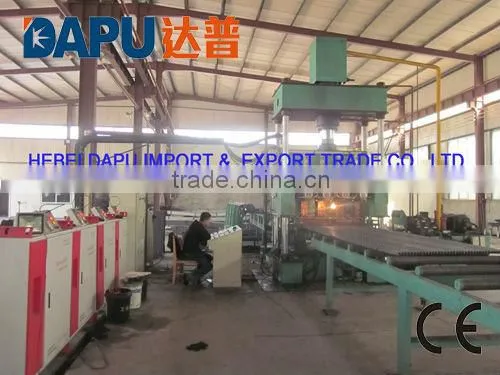

Steel grating forge welding machine for sale
Grating machine
Steel doses of board weld production line to finish flat-rolled steel and round steel (it is entangle square steel to sprain) horizontal to weld automatic production line of shaping alternately while being vertical, the products can reach hundreds of kinds of specifications, apply to the platforms of such trades are petroleum, chemical industry, electricity, quay, municipal administration, environmental protection, national defence, etc., hang and carry, enclose the bar, walk etc. extensively.
Length of mesh: |
6000mm |
|
Bearing flat bar space: |
25--60mm(customized) |
|
Cross bar diameter: |
4--8mm |
|
Cross bar space: |
From 38mm to 160mm adjustable |
|
Welding speed: |
7--10times/min(weld 2 cross bar each time) |
|
Specified input power: |
1600 KVA |
|
Welding transformer: |
1000KVA |
|
Bearing flat bar: |
Thickness |
2.5—7.0mm |
Width |
20—75mm |
|
Welding frequency: |
1000Hz—intermediate frequency |
|
Power transformer needed: |
630KV |
|
|
Rated amount welding electric current: |
AC 200KA |
|
|
Max amount welding electric current: |
AC350 KA |
|
Input voltage: |
380v 50hz 3phase |
|
Overall size: |
18000*3800*4800mm |
|
