Help CenterFull Automatic Electric Mesh Welding Machine
Related Products
-
Automatic Steel Mesh Machine ManufacturerUS$ 10,000 - 20,000MOQ: 1 Set -
Welded Wire Mesh Net Making Machines ManufacturerUS$ 10,000 - 20,000MOQ: 1 Set
-
Wire Mesh Welding Machine (hot Sale)US$ 10,000 - 30,000MOQ: 1 Set
-
Steel Wire Reinforced Concrete Mesh Machine in RollsUS$ 8,000 - 20,000MOQ: 1 Set
-
Welded Wire Mesh Machine for Rolled MeshUS$ 10,000 - 30,000MOQ: 1 Set

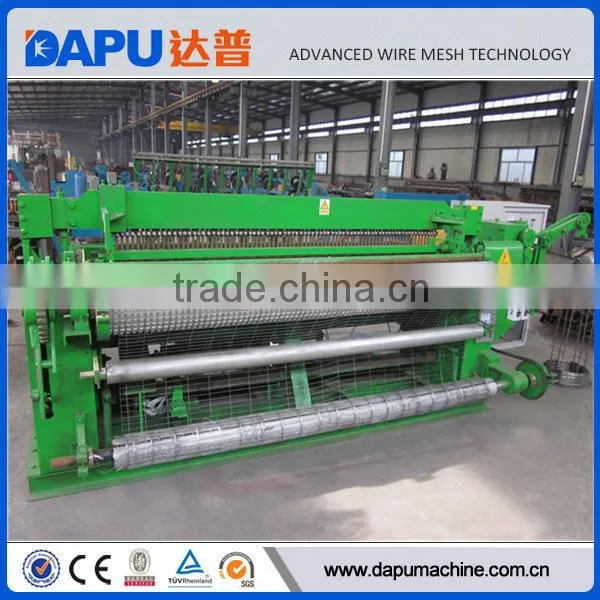

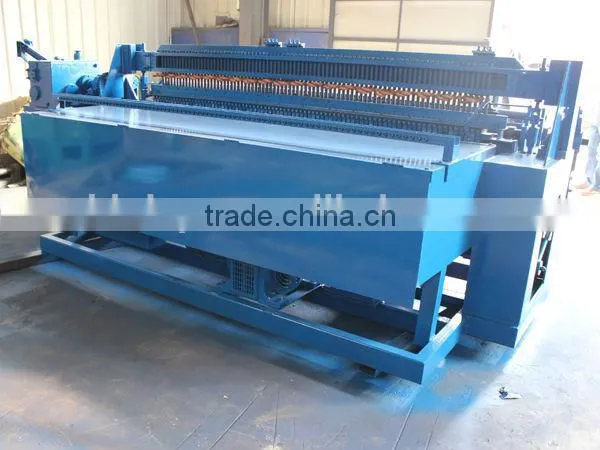

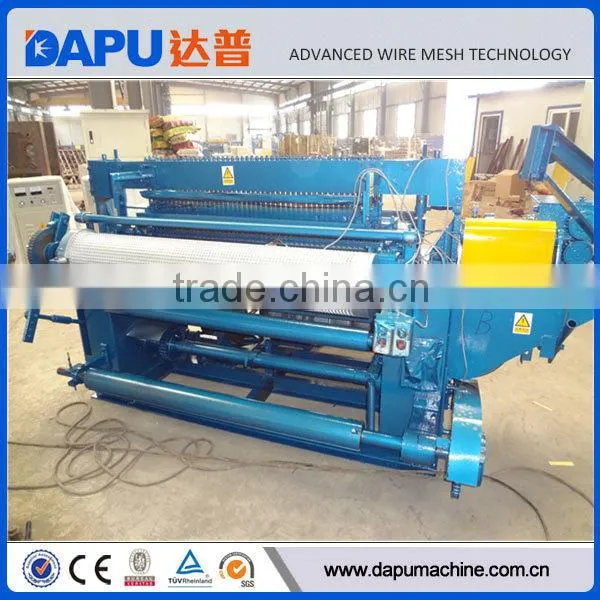

Full automatic electric mesh welding machine (front side)
Machine Description
1. This machine is fully automatic to feed wires, weld mesh, cut edge and roll mesh.
2. The raw material is applicable for low-carbon steel wire, galvanizing wire and stainless steel wire.
3. It has advantages of reasonable design, low noise, stable working, easier operation etc.
4. The mesh size is precise and can be set according to customers’ requirements.

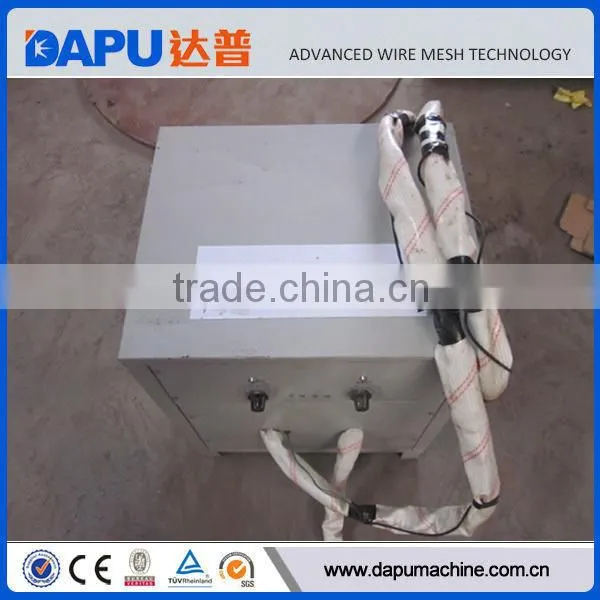

5. It adopts sealed &water cooling welding transformers, the scoria can not easily goes in.

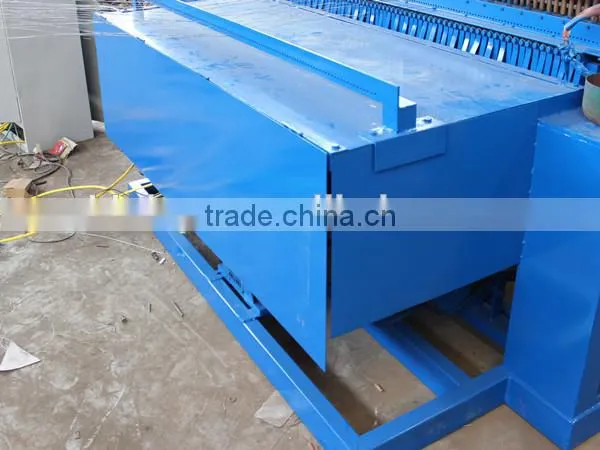

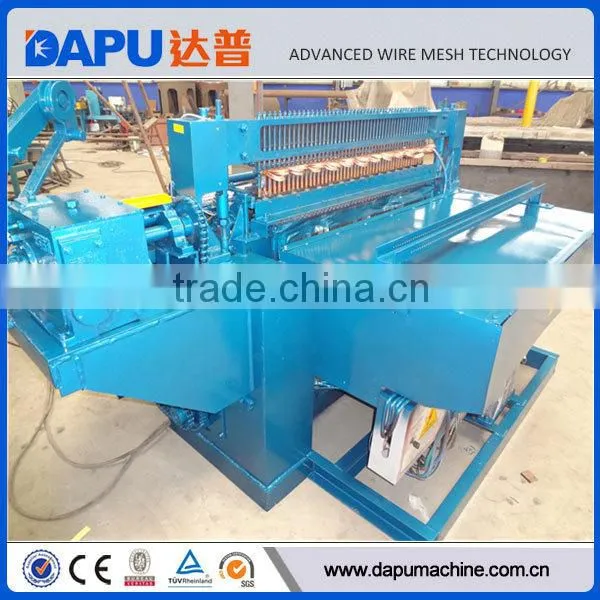

Full automatic electric mesh welding machine (back side)
Technical Parameters
Model |
DP-DNW-1 |
DP-DNW-2 |
DP-DNW-3 |
Wire diameter |
0.4-0.65mm |
0.65-1.2/1.8mm |
1.0-2.2mm |
Aperture/pitch |
1/4”-1/2” |
1/2”-4” |
1”-4” |
Mesh width |
3 feet, 4feet |
4 feet, 5 feet |
4 feet, 5 feet, 6 feet, 7feet |
Motor |
2.2kw |
2.2kw |
2.2kw;4.0kw |
Welding speed |
Max. 75 rows/min |
Max. 120 rows/min |
Max. 80 rows/min |
Measurement |
2.3*1.3*1.4m |
2.5/2.9*1.3*1.4m |
2.5/2.9*1.3*1.4m |
Weight |
1.5T |
2T, 2.5T |
2T, 2.5T, 3T, 3.5T |
Transformers |
50kva*3 |
60kva*4;60kva*5 |
60kva*4/5/6/7 |

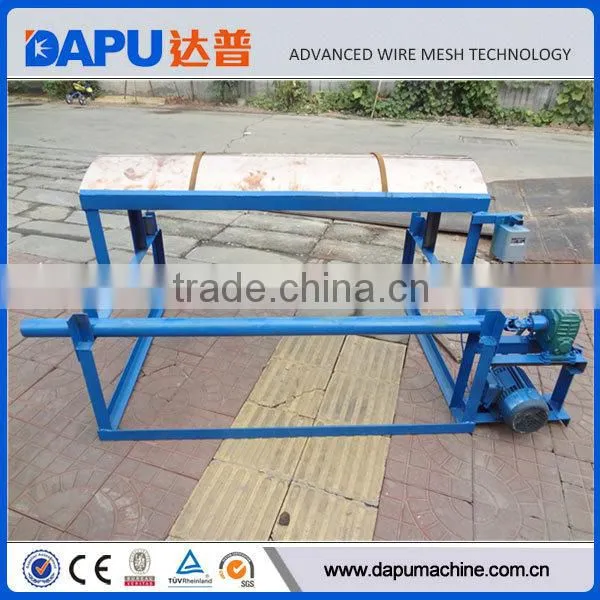

Auxiliary Equipments

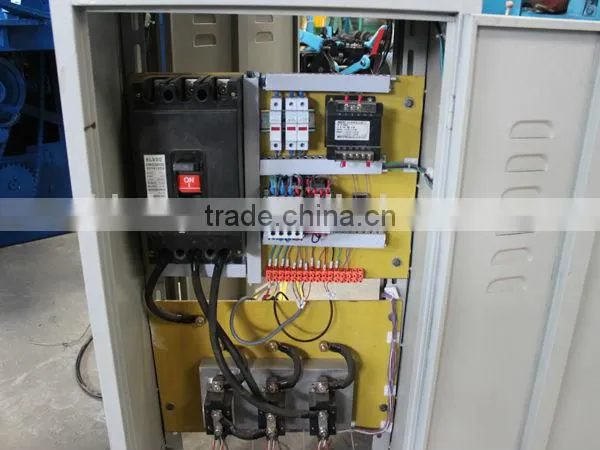

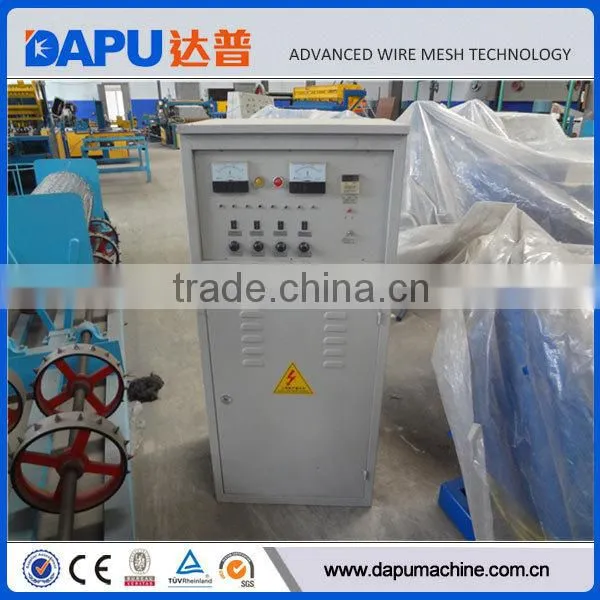

1. Electric control cabinet 2. Mesh repairing table

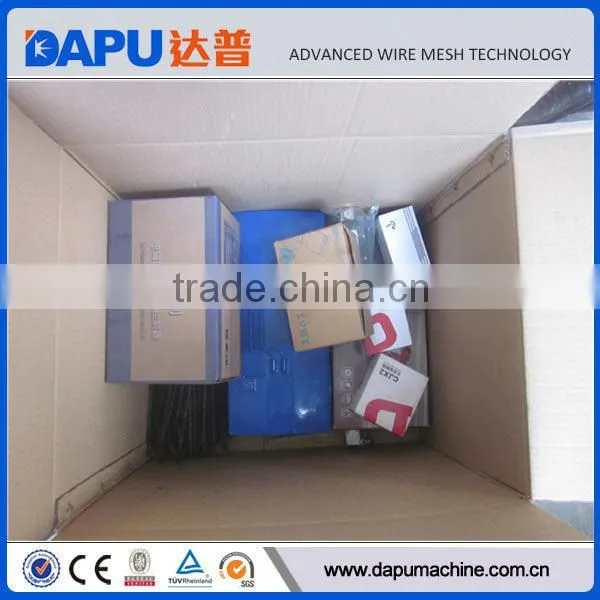

3. Mesh repairing machine 4. Free spare parts

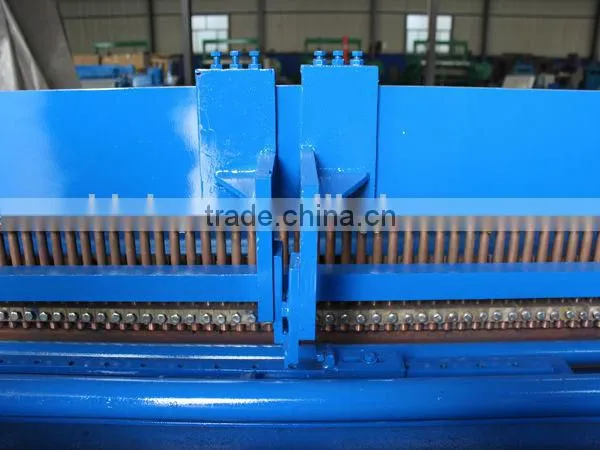

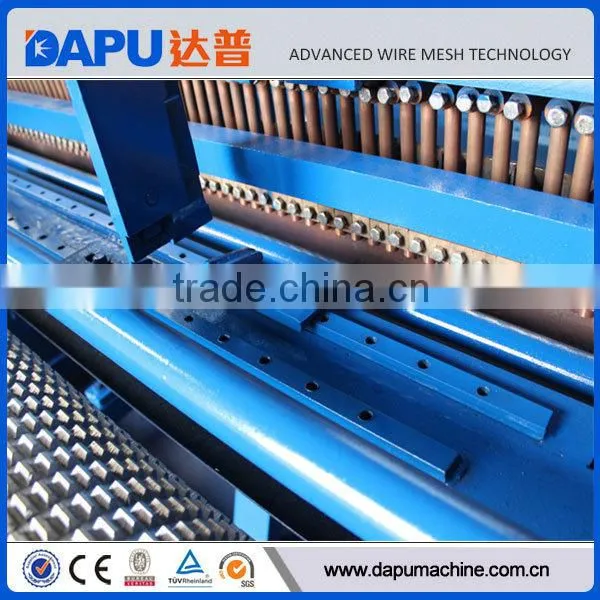

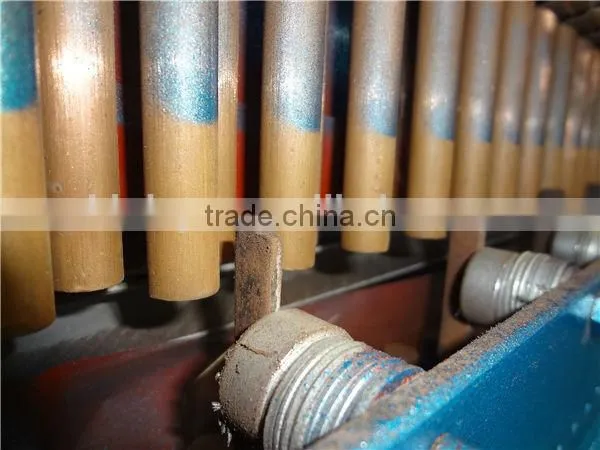

Welding electrodes (double line)
Machine Advantages

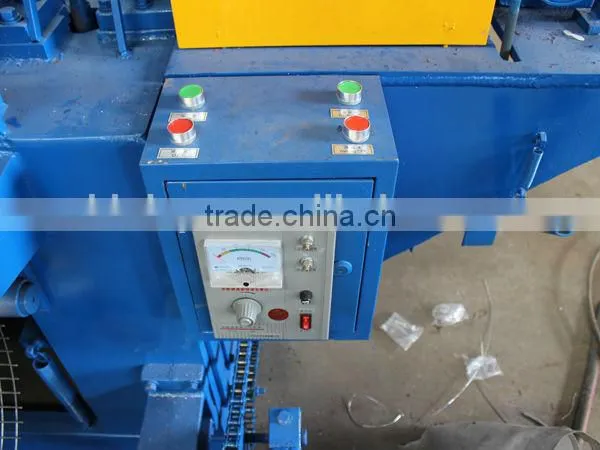

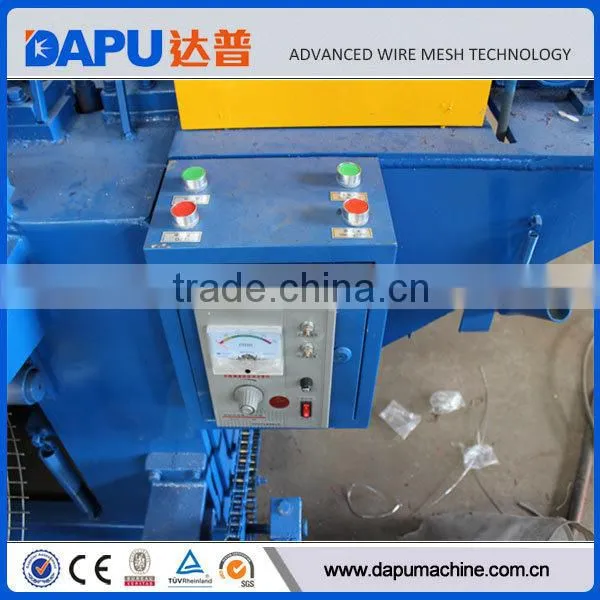

1. Different button&speed meter design 2. Thick steel plate and square steel
3. Moveable middle cutter 4. Separate control technology

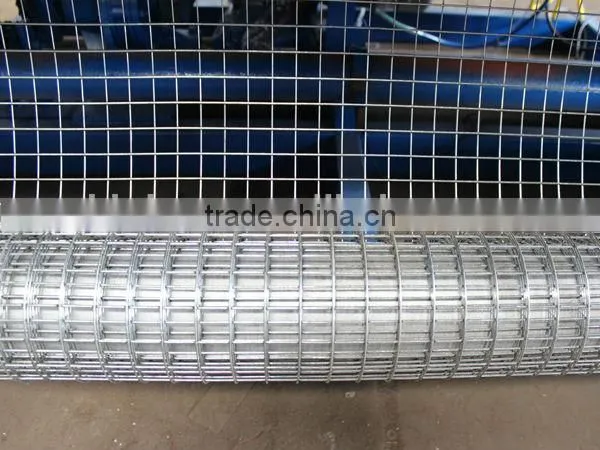

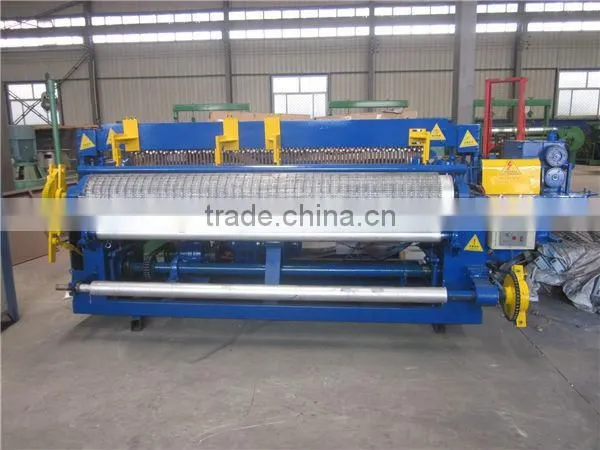

Finished mesh roll
Best After-sales Service
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
Factory Picture
We are a professional manufacturer of wire mesh machines in China. Our main products are:
Reinforcing mesh welding machine, Fence mesh welding machine, Roll mesh welding machine, Chicken cage welding machine, Automatic welded mesh machine, Wire straightening and cutting machine, Cold rolling ribbed machine etc.
Welcome to visit our factory!
