Specifications
Bird breeding cages mesh welding machine1)Pneumatic components
2)Used for many kinds of animal cages
3)ISO9001:2000;CE
4)CE

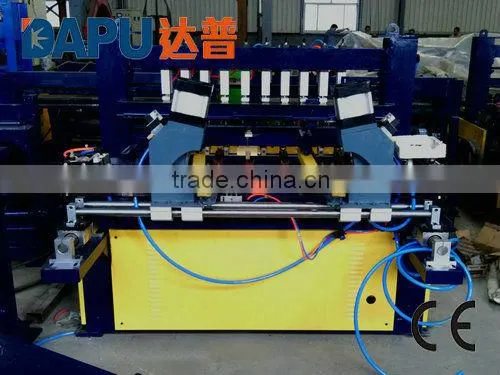

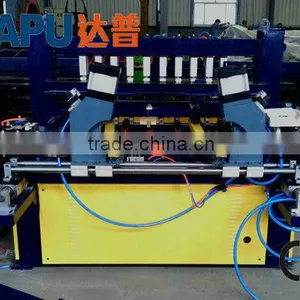

Bird breeding cages mesh welding machine
------------------------------------------------------------------------------------------------------------
Bird breeding cages mesh welding machine
1. The machine adopts air cylinder pulling mesh and the mesh aperture is accurate. Both sides air cylinder will cut both edges automatically.
2. The longitude wires are feeding from coils. The cross wires are feeding from coils.
3. The cross wires are feeding by servo motor automatically from coils. It can feed different length for cross wires in the same mesh sheet. It can be fed short cross wire to reserve the designed mesh hole.
4. The machine is controlled by PLC&Touch screen and it’s very easy to operate.
-------------------------------------------------------------------------------------------------------------
Technical Parameters:
Wire Diameter |
2-3.5mm |
Width of Mesh |
1200mm |
Longitude Wire Space |
50-200mm |
Cross Wire Space |
25-200mm |
Welding Electrodes |
16 pcs |
Welding Speed |
45 times/min |
Longitude Wire Feeding |
From Wire Coils |
Cross Wire Feeding |
From Wire Coils |
Rated Electrical Power |
60kva*2 pcs |
Rated Voltage |
3-phase,380V/220V/415V/440V 50Hz or 60Hz |
Overall Size |
5.5*2.1*1.5mm |
Weight |
2500kg |
-----------------------------------------------------------------------------------Accessorial Parts:
Repairing mesh machine; Electric control cabinet; Wire plate(16 pcs);
