Help CenterPoultry Breed Mesh Welding Machine
Related Products
-
Chicken Cages Mesh Welding MachineUS$ 3,000 - 13,000MOQ: 1 Set -
Layer Chicken Cage Welding MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Animal Cage Welding MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
Chicken Cage Welding Machine-hot SaleUS$ 3,000 - 13,000MOQ: 1 Set
-
Poultry Farming Welding Equipment MachineUS$ 5,000 - 15,000MOQ: 1 Set
Specifications
Poultry breed mesh welding machineWire dia:1.8-3mm
Welding aperture:25-200mm
Mesh width:1200mm
Welding speed:55 times/min

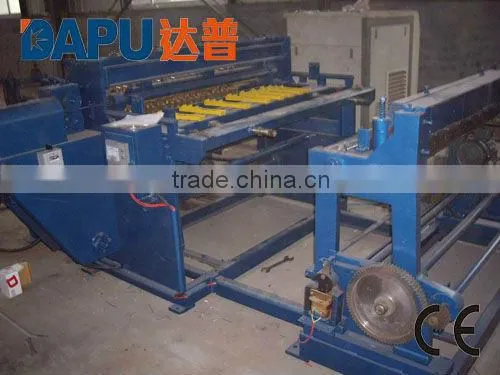

Poultry breed mesh welding machine
Poultry breed mesh welding machine
Function Characteristics:
1. This machine adopts electrical & electronic control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit.
2. The operation is accurate, it has stable function, firm welded point, and without welded tracks.
3. Not only welding speed is fast, it is easy to learn and operate.
4. The machine is equipped with precise equipment for weft cutting positioning, so the length of wefts is identical and regular, it is unnecessary to slice the side.
5. Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole, and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
Use of the product:
1. Welding for breed aquatic/animal cage mesh (poultry cage mesh, coop, pigeon cage mesh, bird cage mesh, chicken cage mesh, rabbit cage mesh, pet cage mesh and breed dog cage)
2. Building (reinforcing construction mesh, floor warming mesh, seed-bed mesh)
Technical Parameters:
Model |
120B-1 |
120B-2 |
Input power |
380V 50 Hz |
380V 50 Hz |
Max. width |
1200mm |
1200mm |
Line wire space |
25—200mm |
25—200mm |
Cross wire space |
25—200mm |
25—200mm |
Line wire diameter |
1.8—3.0mm |
1.8—3.0mm |
Cross wire diameter |
1.8—2.5mm |
1.8—2.5mm |
Rated capacity |
60kva*2 |
60kva*2 |
Welding point No. |
16 |
16 |
Motor power |
2.2kw |
2.2kw |
Feed line wire |
Coils wire |
Coils wire |
Feed cross wire |
Coil wire |
Coils wire & pre-cut wire |
Cutting mesh |
Automatic & manual |
Automatic & manual |
Welding speed |
55times/min |
55times/min |
Weight |
2500kg |
2800kg |
Dimension(l*W*H) |
2500*1800*1400mm |
2500*1800*1500mm |
Poultry breed mesh
