Specifications
Chicken cage welding machine-hot saleWire diameter:1.8-3mm
Mesh aperture:25-200mm
Mesh width:1.2m
Speed:55 times/min

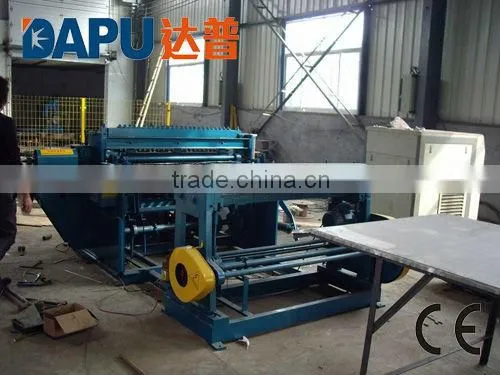

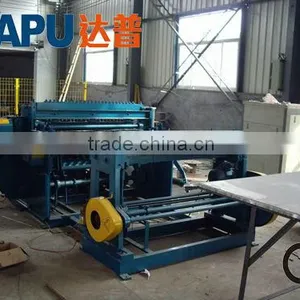

Chicken cage welding machine-hot sale
Chicken cage welding machine-hot sale
Function Characteristics:
1.This machine adopts electrical & electronic control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit.
2.The operation is accurate, it has stable function, firm welded point, without welded tracks.
3.Easy to learn and operate, high speed, low price
4.The machine is equipped with precise equipment for weft cutting positioning, so the length of wefts is identical and regular, it is unnecessary to slice the side.
5.Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole, and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
Use of the product:
1. Welding for breed aquatic/animal cage mesh (poultry cage mesh, coop, pigeon cage mesh, bird cage mesh, chicken cage mesh, rabbit cage mesh, pet cage mesh and breed dog cage)
2. Building (reinforcing construction mesh, floor warming mesh, seed-bed mesh)
Technical Parameters:
Model |
120B-1 |
120B-2 |
Input power |
380V 50 Hz |
380V 50 Hz |
Max. width |
1200mm |
1200mm |
Line wire space |
25—200mm |
25—200mm |
Cross wire space |
25—200mm |
25—200mm |
Line wire diameter |
1.8—3.0mm |
1.8—3.0mm |
Cross wire diameter |
1.8—2.5mm |
1.8—2.5mm |
Rated capacity |
60kva*2 |
60kva*2 |
Welding point No. |
16 |
16 |
Motor power |
2.2kw |
2.2kw |
Feed line wire |
Coils wire |
Coils wire |
Feed cross wire |
Coil wire |
Coils wire & pre-cut wire |
Cutting mesh |
Automatic & manual |
Automatic & manual |
Welding speed |
55times/min |
55times/min |
Weight |
2500kg |
2800kg |
Dimension(l*W*H) |
2500*1800*1400mm |
2500*1800*1500mm |
Accessorial Parts:
Straightening&cutting wire machine; Repairing mesh machine; Electric control cabinet; Wire plate(16 pcs); Electric scissors(2 pcs)
After-sale service:
1.We can offer installation and train the workers for the customers.
2.Guarantee time:one year since the chicken cage welding machine was installed at buyer's factory but within 18 months against B/L date.
3. We can help design the layout of the machine placed in the factory.
