Specifications
Breed aquatics mesh welding machine1.Wire diameter:1.8-3mm
2.Mesh opening size:25-200mm
3.Mesh width:1.2m
4.Auto welding

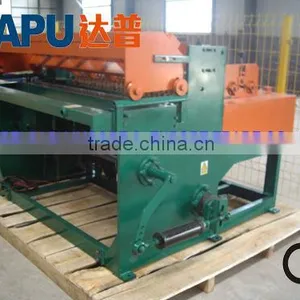

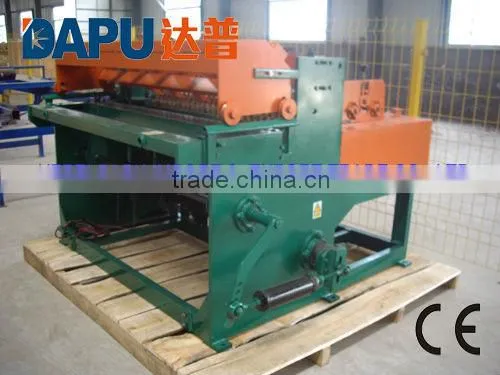

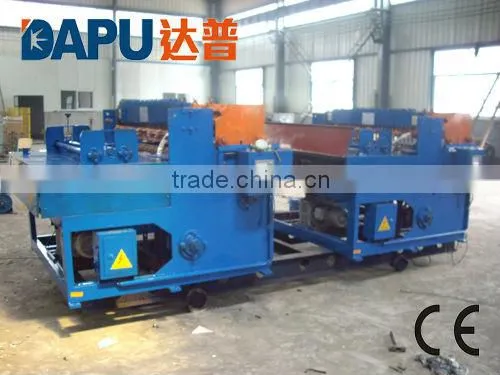

Breed aquatics mesh welding machine
Breed aquatics mesh welding machine
Function Characteristics:
1. This machine adopts electrical & electronic control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit.
2. The operation is accurate, it has stable function, firm welded point, and without welded tracks.
3. Not only welding speed is fast, it is easy to learn and operate.
4. The machine is equipped with precise equipment for weft cutting positioning, so the length of wefts is identical and regular, it is unnecessary to slice the side.
5. Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole, and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
Usage:
1. Welding for breed aquatic/animal cage mesh (poultry cage mesh, coop, pigeon cage mesh, bird cage mesh, chicken cage mesh, rabbit cage mesh, pet cage mesh and breed dog cage)
2. Building (reinforcing construction mesh, floor warming mesh, seed-bed mesh)
Main Parameters:
Model |
120B-1 |
120B-2 |
Input power |
380V 50 Hz |
380V 50 Hz |
Max. width |
1200mm |
1200mm |
Line wire space |
25—200mm |
25—200mm |
Cross wire space |
25—200mm |
25—200mm |
Line wire diameter |
1.8—3.0mm |
1.8—3.0mm |
Cross wire diameter |
1.8—2.5mm |
1.8—2.5mm |
Rated capacity |
60kva*2 |
60kva*2 |
Welding point No. |
16 |
16 |
Motor power |
2.2kw |
2.2kw |
Feed line wire |
Coils wire |
Coils wire |
Feed cross wire |
Coil wire |
Coils wire & pre-cut wire |
Cutting mesh |
Automatic & manual |
Automatic & manual |
Welding speed |
55times/min |
55times/min |
Weight |
2500kg |
2800kg |
Dimension(l*W*H) |
2500*1800*1400mm |
2500*1800*1500mm |
Accessorial Parts:

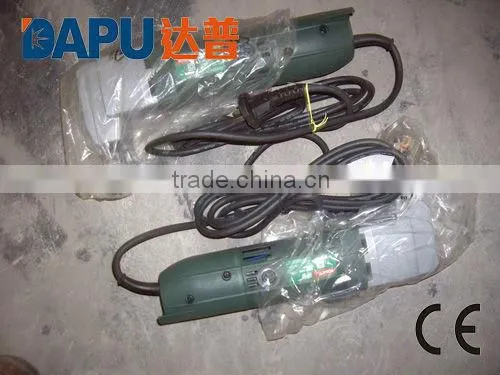

Straightening&cutting wire machine; Repairing mesh machine; Electric control cabinet; Wire plate(16 pcs); Electric scissors(2 pcs)
After-sales service:
1.We can offer installation and train the workers for the customers.
2.Guarantee time:one year since the machine was installed at buyer's factory but within 18 months against B/L date.
