Specifications
Wire panel mesh machine1. PLC control system
2. automatic welding line
3. accurate mesh size

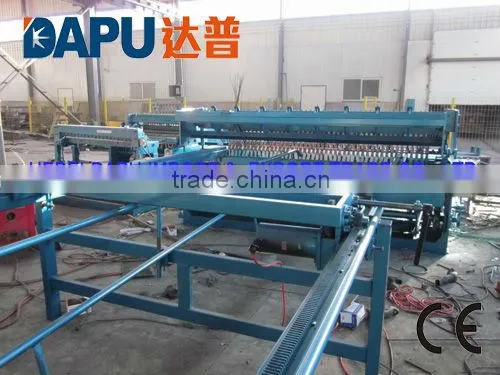

Wire panel mesh machine

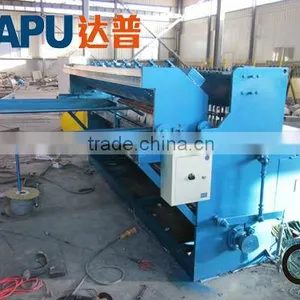

Wire panel mesh machine
A. This welded wire mesh fence machine adopts synchronous control technique, both welding time and separate-control welding is controlled by PLC.
B. Input panel has been divided into two kind, they are touch screen and button. This made the operation more intelligent and rationalization.
C. This machine use electric as its motive power and it use the step motor hopper, brake motor drive the car to put the weft. And drawing mesh use the step motor.
D. The longitudinal and weft should be pre-cut.
E. The biggest advantage of the welded wire mesh fence machine is that it can produce different aperture in both longitudinal and weft.
Welded wire mesh panel machine
Input power |
380V 50Hz |
Max. width |
2500mm |
Line wire space |
50—300mm |
Cross wire space |
≥25mm |
Wire diameter |
2.5—6.0mm |
Rated capacity |
85kva*6 |
Welding point No. |
48 |
Motor power |
4.0KW |
Feed line wire |
Pre-cut wire |
Feed cross wire |
Pre-cut wire |
Welding speed |
25-40times/min |
Weight |
4200kg |
Dimension(L*W*H) |
8480*3160*1700mm |
|
|
After-sales service: We offer installation and train the workers for the customers.
Our guarantee time: one year since the machine was installed at buyer's factory but within 18 months against B/L date.
