Specifications
Fence wire mesh welding machine Hebei1.Wire diameter:2.5-6.0mm
2.Mesh width:2500mm
3.Mesh opening:50*50-300*300mm
4.CNC

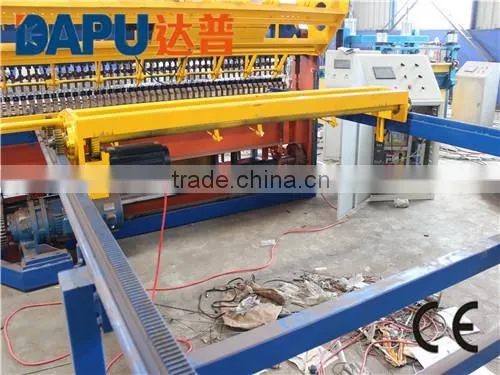

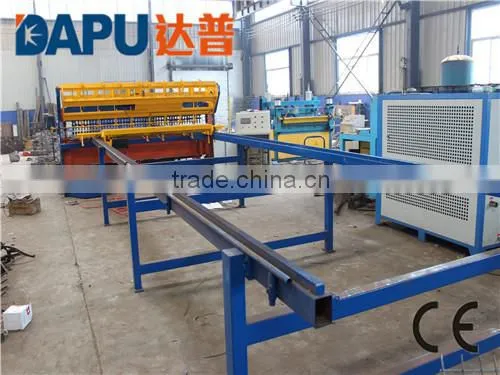

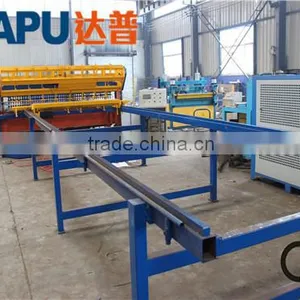

Fence wire mesh welding machine Hebei

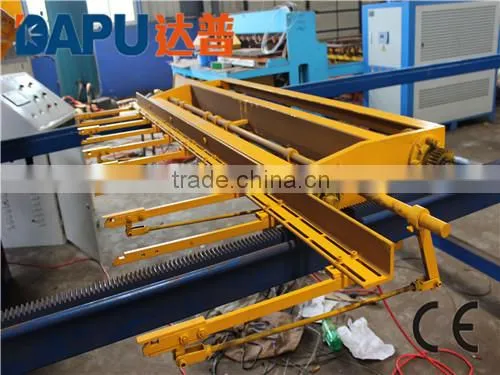

Mesh pulling system
Fence wire mesh welding machine Hebei
1.This machine adopts synchronous control technique, both welding time and separate-control welding is controlled by PLC, input panel has been divided into two kind, they are touch screen and button. This made the operation more intelligent and rationalization. This machine use electric as its motive power, and it use the step motor hopper, brake motor drive the car to put the weft. And drawing mesh use the step motor. The longitudinal and weft should be pre-cut. The biggest advantage is that can produce different aperture in both longitudinal and weft.
2. Accessorial parts:

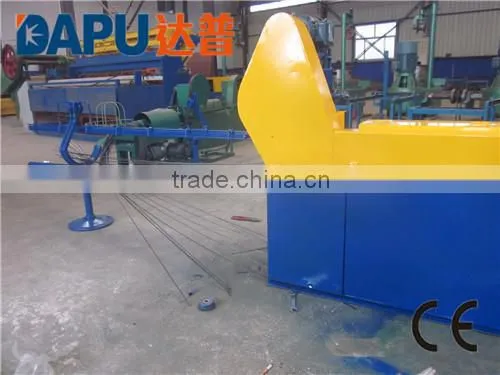

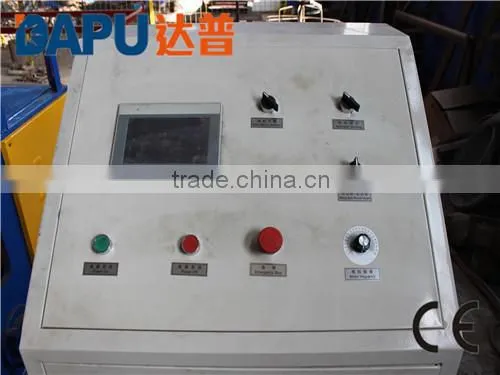

Electric control cabinet, straightening and cutting machine, bracket.
3. Mainly used for: railway, highway, Bridges, buildings, such as residential fence and shelves, warehouse cage welding
4. Material: low carbon wire, galvanized wire.
Fence wire mesh welding machine Hebei
Wire Diameter |
2.5-6mm |
Width of Mesh |
2500mm |
Longitude Wire Space |
50-300mm |
Cross Wire Space |
25-300mm |

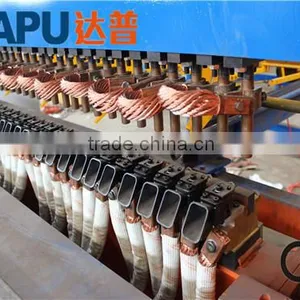

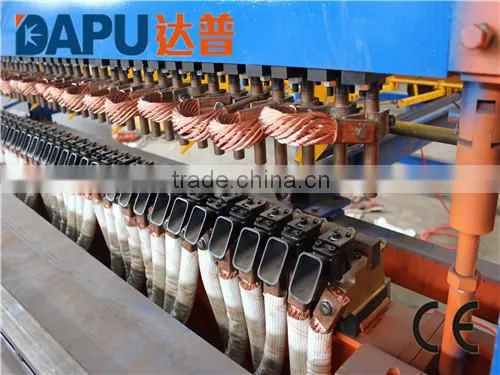

Welding Electrodes |
48 pcs |
Welding Speed |
60 times/min |
Longitude Wire Feeding |
Pre-straightened&pre-cut |
Cross Wire Feeding |
Pre-straightened&pre-cut |
Rated Electrical Power |
85kva*6 pcs |
Rated Voltage |
3-phase,380V/220V/415V/440V 50Hz or 60Hz |
Overall Size |
8.4*3.1*1.7m |
Weight |
4200kg |
For more information, please contact:
Contact Person: Bruce Ma
Skype: dapumachine
QQ: 1228185359
Wechat: dapumachine
Mobile: 0086-15930181601 (whatsapp)
Inquiry now, I will reply at first time.
