Home > Manufacturing & Processing Machinery > Lifting Equipment > Winch > QJH150PACMB-25-150 15T Marine Mooring Air Winches

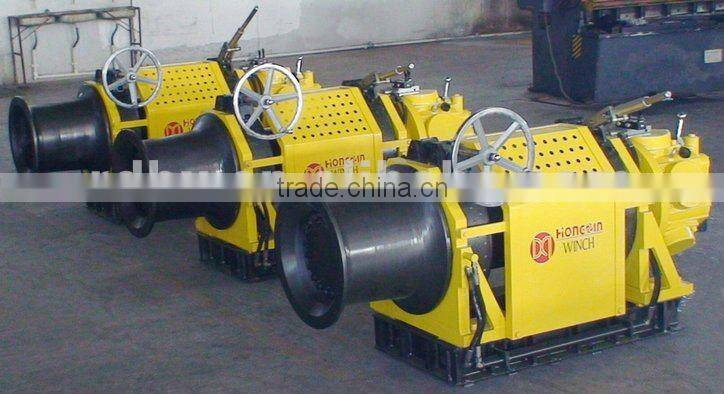

QJH150PACMB-25-150 15T Marine Mooring Air Winches
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Hongxin
Model Number:
QJH150PACMB-25-150
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5T Pneumatic Capstan WinchNegotiableMOQ: 1 Set -
HXQJH60 Speed Regulation Air Boat Lift WinchNegotiableMOQ: 1 Set
-
HXQJH20 2ton Air WinchNegotiableMOQ: 1 Set
-
2T Cable Pulling Air WinchNegotiableMOQ: 1 Set
-
8KN 800KGS Capacity Underground Mining Used,Air Scraper Winch,Double Drum,Scraper Air WinchUS$ 6,000 - 8,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
Hongxin
Model Number
QJH150PACMB-25-150
Power Source
Pneumatic
Application
Other, mooring ship,dock winch,boat lift winch,ocean platform,mining,etc
Capacity
150KN
Specifications
15T Air WinchesWinches for all industries
Handle and Handwheel brake design
Pneumatic clutch device
Mature advanced product
15T Air Winches
This mooring air winch is applicable to hoist and pull heavy objects in the field of ship,marin platform,engineer,mine,etc.
Main technical characteristics are as follows:
1.Manual braking: the brake system is supplied with hand press brake and hand shake brake.
2.Easily operation: the control valve of the winch is designed together with the air motor;the mooring winch designed with one control handle which can control the speed and the rotation direction at the same time.
3.Pneumatic clutch device: by operating the handle control valve,it can make drum work separately,simultaneously,and totally disengaged.
| Technical parameters | |||||||

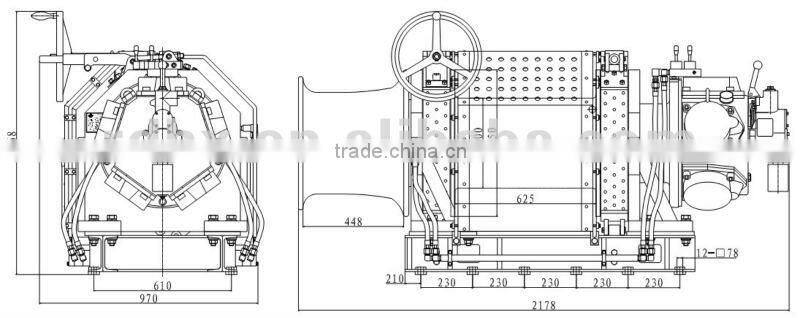

| Model | Rated pull | Rope speed | Rope dia. | Rope capacity | Air pressure | Outline dimension | Weight |
| QJH150PACMB-25-150 | 150KN | 6m/min | 25mm | 150m | 0.69Mpa | 2178*970*1168mm | 2600kg |
