Help CenterHXQJH20 2ton Air Winch
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONGXIN
Model Number:
HXQJH20
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2T Cable Pulling Air WinchNegotiableMOQ: 1 Set -
8KN 800KGS Capacity Underground Mining Used,Air Scraper Winch,Double Drum,Scraper Air WinchUS$ 6,000 - 8,000MOQ: 1 Set
-
QJH50PKMB-16-438 Piston Air WinchUS$ 5,000 - 20,000MOQ: 1 Set
-
QJH50AMBG-18-150 Piston Air WinchUS$ 5,000 - 20,000MOQ: 1 Set
-
QJH20 2T Air WinchUS$ 5,000 - 15,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONGXIN
Model Number
HXQJH20
Power Source
Other, Air compressor
Application
Other, Boat,mine,construction,dock,cargo lifting,etc
Capacity
20KN
Specifications
2ton Air Winch1.piston air motor
2.Manual band brake,Automatic band brake
3.environment & safety
fessional factory

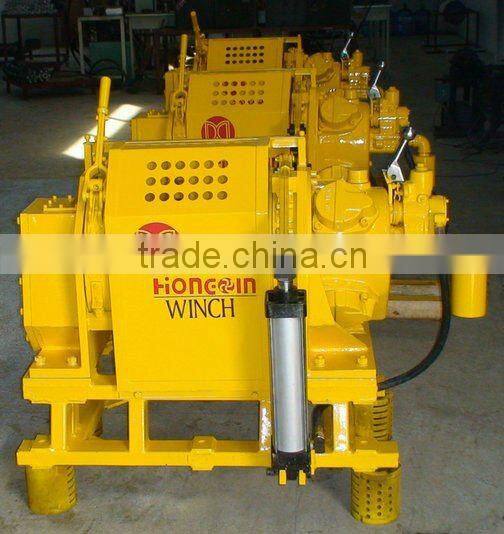

HXQJH20 2ton Air Winch
With manual or remote control design
Powered by compressed air
High lifespan and low cost price
Intrinsically safe in hazardous environments,eg.mines,petro-chemical,etc
Resistant to dirty,damp conditions
Rugged,reliable design
Main technical parameters:
Model |
HXQJH20 |
Rated line Pull (KN) |
20 |
Rope Speed (m/min) |
20 |
Rope Diameter (mm) |
16 |
Rope Capacity (m) |
60 |
Air Pressure (MPa) |
0.69 |
Overall Dimensions (mm) |
1100*830*800 |
Weight (kg) |
380 |
|
|
