8KN 800KGS Capacity Underground Mining Used,Air Scraper Winch,Double Drum,Scraper Air Winch
Air Scraper Winch Model Number: QJHPK8B-9.3
Q: Pneumatic
J: Winch
H: Piston air motor
PK: Scraper
8: Top layer capacity 8KN,800KGS
B: 5 cylinders piston air motor
9.3: wire rope diameter 9.3mm

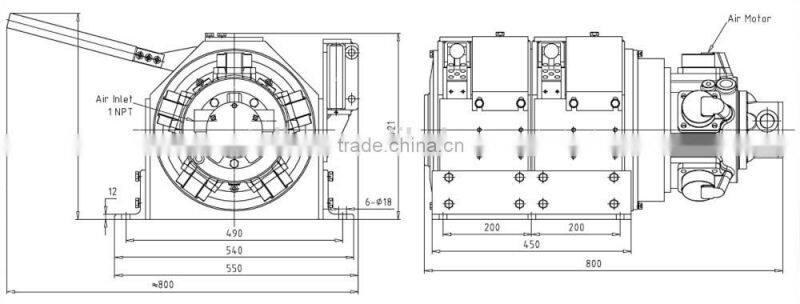

QJHPK8-9.3 Air Scraper Winch Drawing
QJHPK8-9.3 Air Scraper Winch Technical Parameters:
Name |
Parameter |
Unit |
|
Working pressure |
0.69-1.0 |
MPa |
|
Traction |
8 |
kN |
|
Max rope speed |
32 |
m/min |
|
Air motor |
Rated power |
7.5 |
kW |
Rotating speed |
2400 |
rpm |
|
Drum |
Diameter |
190 |
mm |
Length |
110 |
mm |
|
Wheel flange diameter |
320 |
mm |
|
Wire-rope diameter |
9.3 |
mm |
|
Rope capacity |
45 |
m |
|
External dimension |
Length × width × height |
800×550×421 |
mm |
Working condition |
Temperature |
-10 +60 |
℃ |
Humidity |
100% |
|
|
Wind speed & wave height |
6 / 2 |
level/M |
|
Weight |
350 |
kg |
|

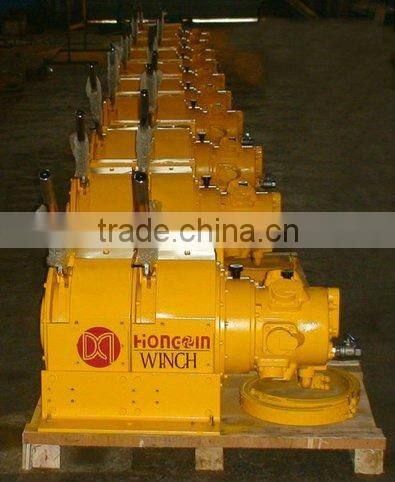

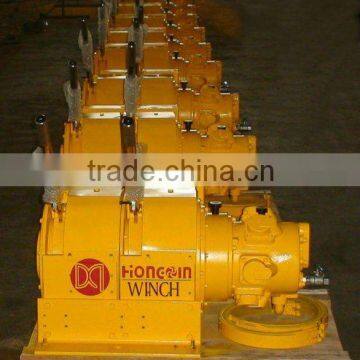

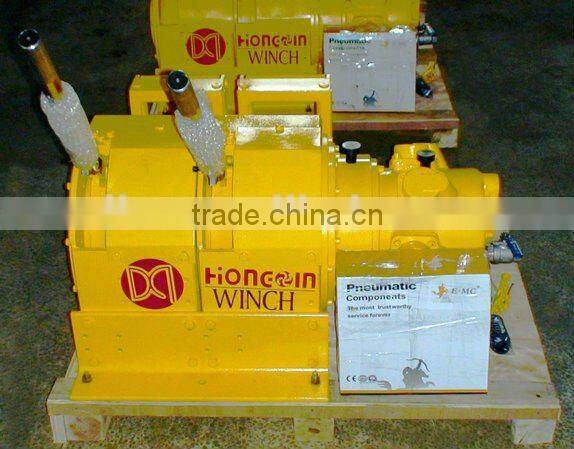

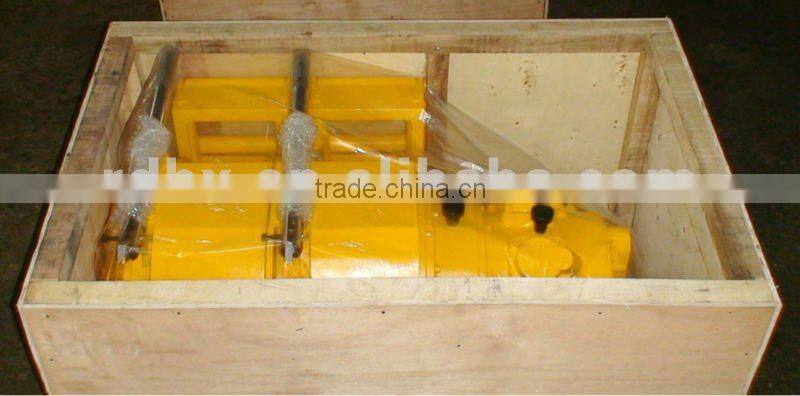

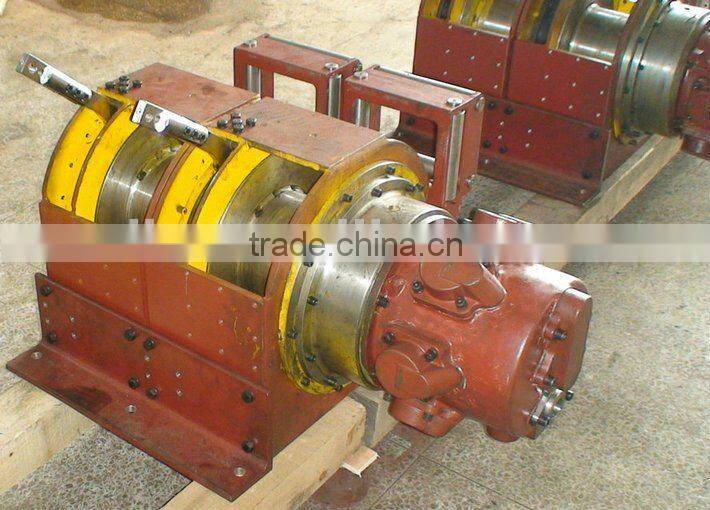

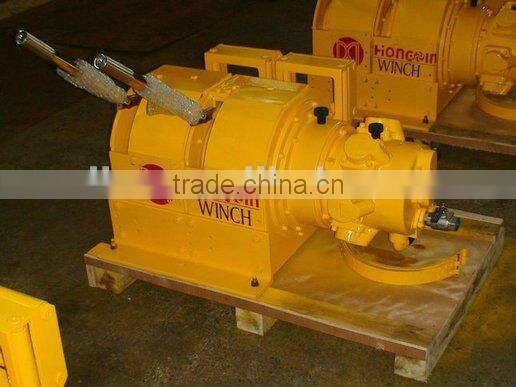

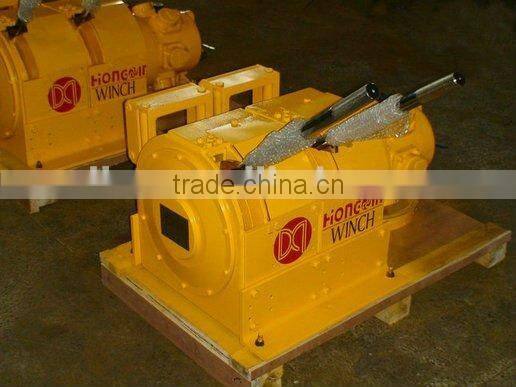

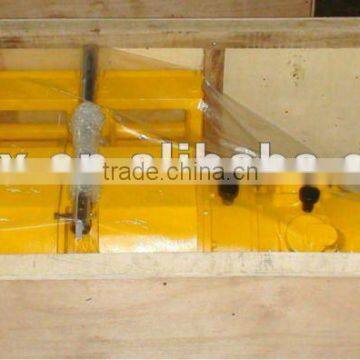

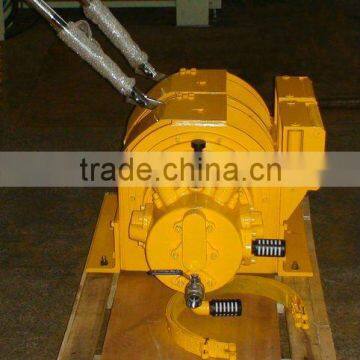

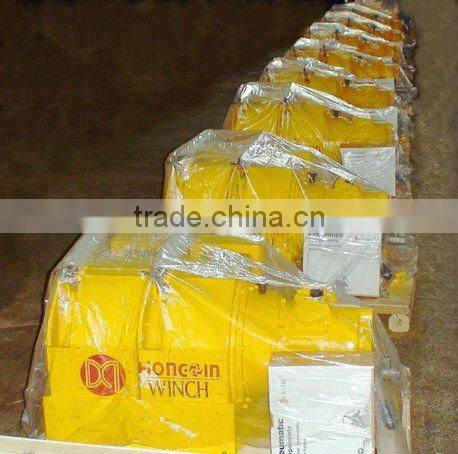

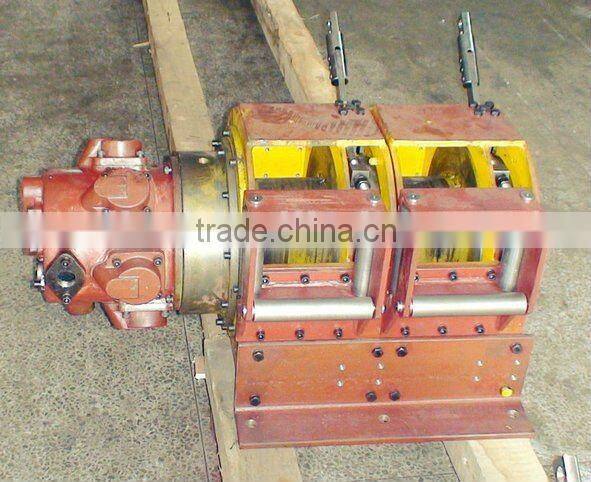

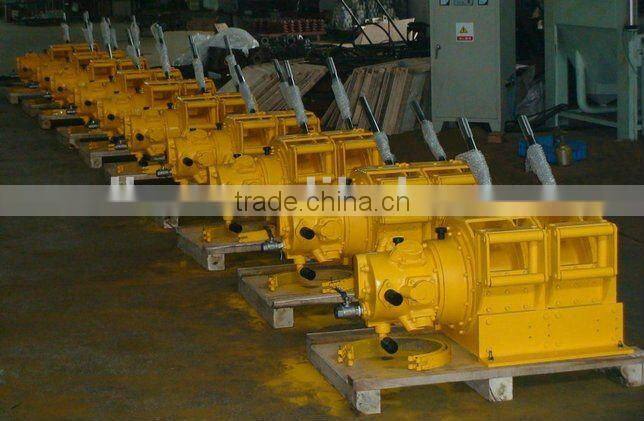

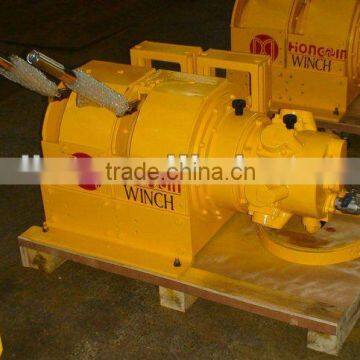

QJHPK8-9.3 Air Scraper Winch Photoes
