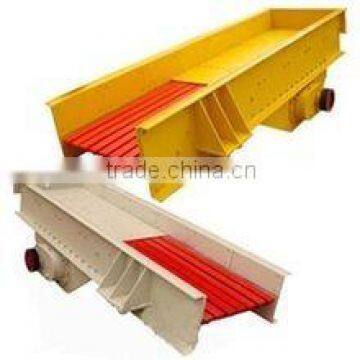

GZD series Small Vibrating grizzly feeder price
Product description
Brief introduction to vibrating grizzly feeder
The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from Silo to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The Vibrating Feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding,
Vibrating grizzly feeder structure :
In sand production line to avoid continuous evenly feed crusher blockage by machine mouth. Machine is used to the vibrator in the centrifugal force produced by the rotation of eccentric block, cause the sieve, vibrators and other moving parts as the compulsory or approximate the continuous circular movement. Material with the screen stays in tilt movement of screen surface of continuous casting and continuous evenly will deliver material to the material inside the machine mouth.

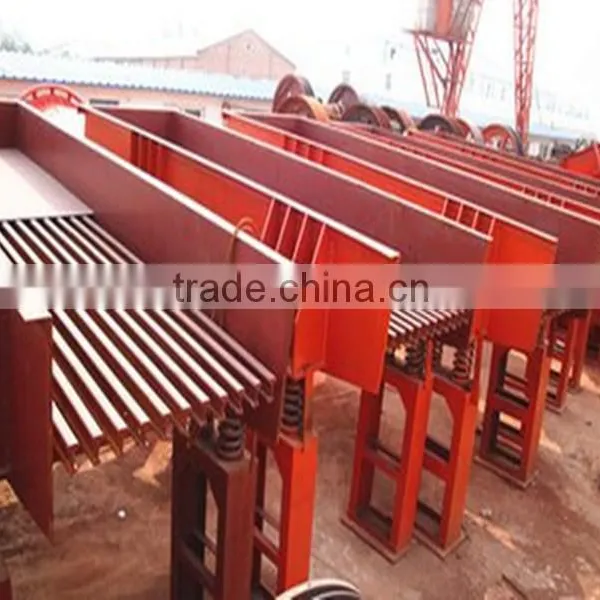

Vibrating grizzly feeder structure photo
Vibrating grizzly Feeder Technical Parameters:
Model |
Size of funnel mm |
Max feed lump size mm |
Capacity t/h |
Power kw |
Weight t |
Overall size mm |
GZD600*1800 |
600*1800 |
300mm |
30-80 |
1.1*2 |
1050 |
2200*1100*600 |
GZD800*3000 |
850*3000 |
400mm |
80-120 |
1.5*2 |
3195 |
3110*1600*1600 |
GZD960*3800 |
950*3800 |
500mm |
120-210 |
2.2*2 |
3980 |
3850*1950*1630 |
GZD1100*4200 |
1100*4200 |
580mm |
200-430 |
3.7*2 |
5570 |
4400*2050*1660 |
GZD1100*4900 |
1100*4900 |
580mm |
280-500 |
5.5*2 |
6520 |
5200*2050*1700 |
GZD1300*5200 |
1300*5200 |
650mm |
450-600 |
7.5*2 |
8200 |
5200*2350*1750 |
ZSW960*3800 |
960*3800 |
500mm |
90-200 |
11 |
3980 |
3882*2224*2121 |
ZSW1100*4900 |
1100*4900 |
580mm |
180-380 |
15 |
5320 |
4957*2500*1365 |
ZSW1300*4900 |
1300*4900 |
750 |
250*450 |
22 |
5900 |
4957*2580*2083 |
Our service
Before sale
Be a good consultant and assistant of our customer to ensure our customer's investment will be rewarded with great profit.
1.Select the right model of equopment for customer.
2.Our service engineers would be ready for service 24 hours per day.
3.We will answer your qustion any time
4.Provide training for customer's technician
During sale
Respect every customer and provide them convenience and reliability.We are devoted to help customer gain more.
1.Inspect before accept the products sent by us.
2.Assist our customer to make a constrution plan.
After sale
1.The installation and testing of equipment.
2.We would be ready for service 24 hours per day to accept your feedback .
3.we would provide maintaince if our product have problem.
Packing&Shipping
Packing :
1.Standard export containers,bare main machine, motors and small parts are packed in wooden cases..
2.If you need special package ,we can do as your requirement.
Shipping:
About 20-30 days after receipt the deposit
Our company
Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.
How about the quality of our machine?
Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery.
How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.
How about the after-sale service of your company?
Our engineer is aviliable to installation machine overseas.
The guarantee period of our machine is one year.
Spare parts will supply at any time.
Note: Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
