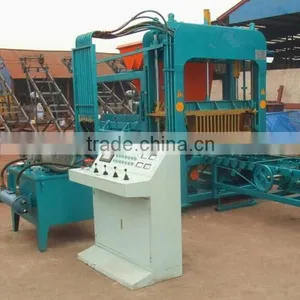

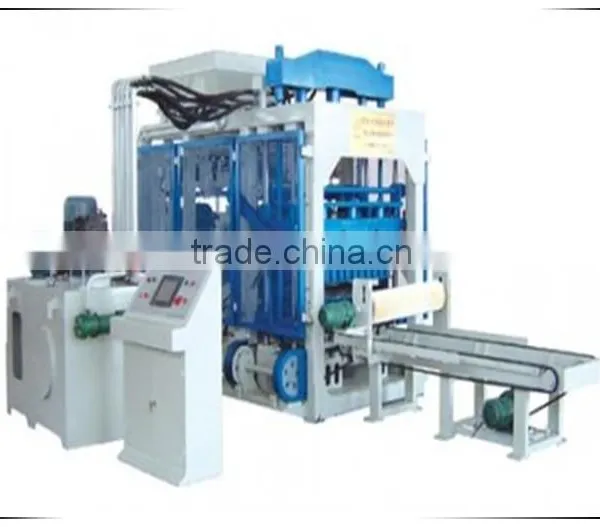

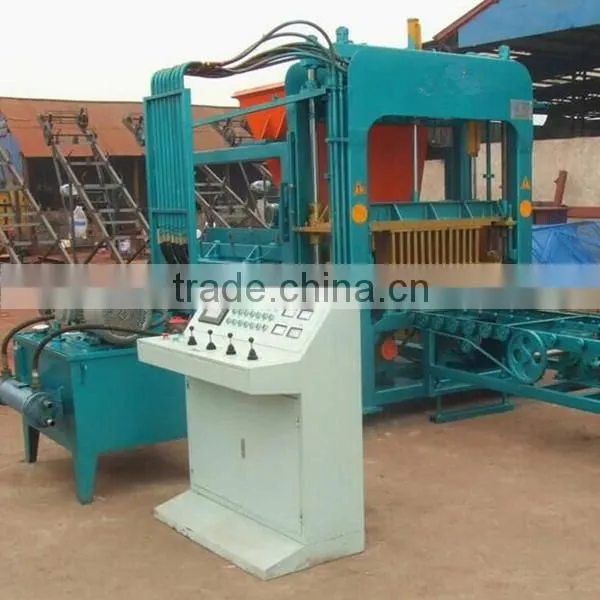

Full automatic hydraulic concrete Brick production plant
I. Description of QT8-15 Brick production plant :
1. The reasonable design, compact structure, the body made of steel and special welding technology widely USES the import original joint venture, make the body more stable and reliable.
2. High efficiency, strong vibration system design, using computer control frequency converter, so as to realize a variety of vibration frequency and amplitude, and improve the compactness of the products and production efficiency.
3. Complete PLC and man-machine interface control system, the realization of random signal analysis and fault diagnosis, and forming the required parameters setting, so that the machine work best effect.
4. Equipped with special hydraulic machine, can easily achieve large production, automated production, save a lot of manpower, maintenance depot and liquidity.
5. Semi-closed is compulsory spiral charging system, make the fabric more uniform quickly.
6. The loading device, the enclosed electrical roller rotation, strictly control the hopper hoppers, use it do feeding time, prevent the concrete from aftershocks liquefied ahead of time, influence of cloth.
II. The whole unit of QT8-15 Brick production plant :

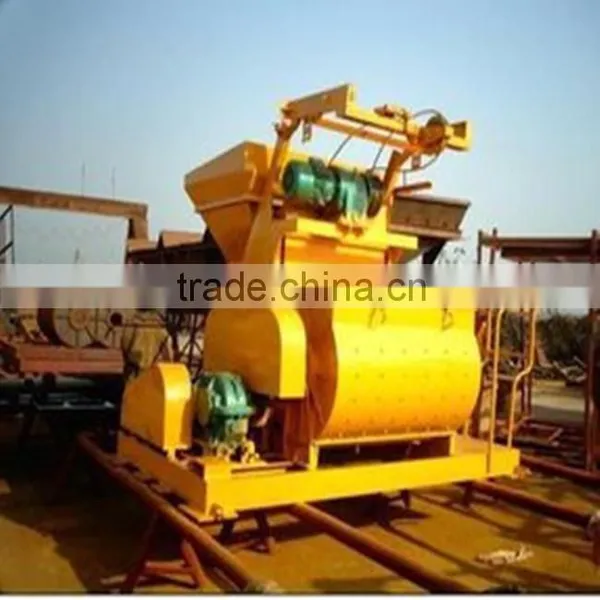

1.Mixing system:
Mixing after putting in place a materials, ascension will rise in the raw material into the mixing barrel, mix well in a set time, stirring, feeding, material into the machine small storage hopper, waiting for the next cycle ingredients;
2.The molding system:
Molding machine plate box plate, mould box down on the plate, belt conveyor, the material is sent to storage hopper, head rises in place, after all the conditions in place (chain), hopper forward to above the molding box, computer according to the different products, different materials can be set: forced feeding time, after vibration time, vibration feeding material feeding time, can choose whether to add the fabric, do face brick can choose to add fabric after 3 ~ 5 mm or slightly after vibration and fabric..
According to the demands of different materials, different products splice any mechanical action, realize the man-machine dialogue, multi-usage.
Batching machine working photo
3.Intelligent control:
Affected by the material dry humidity, aggregate changes after mixing different materials, on the premise of guarantee the quality of products, PLC control system can be set products optimal molding parameters at any time. To meet the needs of different products, different materials, the real-time dynamic display of mechanical movement, fault inspection, display the input/output fault location, and other functions.
PLC control
4.Send the brick machine, liters machine:
Send brick machine will products sent out, after brick surface cleaners cleaning products into the machine.
Liters machine with useful wear chain and plate frame, send sent after putting in place a plank brick, brick machine plate rack up 20 cm, with products to the full by sending a scooter to bring products to the maintenance area after stacking.
III. Making bricks materials :
Making blocks materials

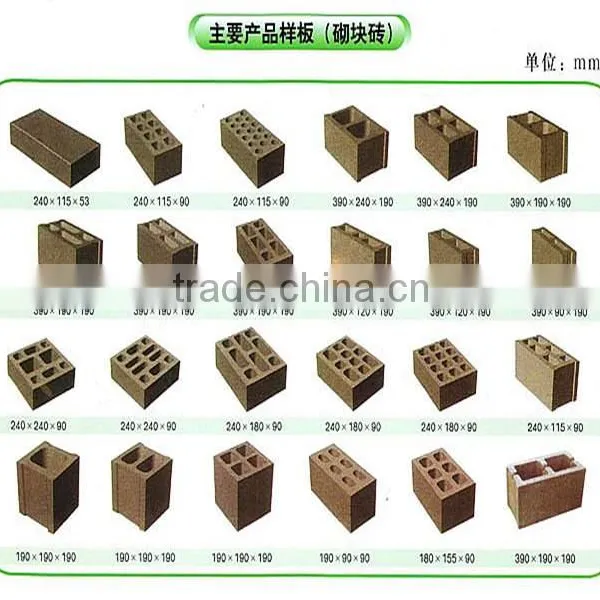

Pavers and blocks sample for reference .

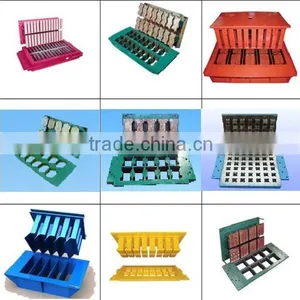

Bricks moulds photo
Concere bricks photo
IV. Technical parameter of QT8-15 Brick production plant :
Pieces/mould |
240*115*53mm 42pcs |
Forming cycle |
15-20second |
Capacity |
77760-98860pcs |
Vibrating frequency |
0-3000(Can be adjusted) |
Vibrating force |
110KN(Can be adjusted) |
Main machine power |
37.5KW |
Stacker power |
3KW |
Pallets size |
990*850*30mm |
Main machine size |
7564*2060*2868mm |
Stacker size |
2500*2000*2350mm |
Total weight : |
15Ton |
Blocks |
Pieces |
Standard blocks size mm |
Capacity (pcs/h) |
Hollow blocks |
8 |
390×190×190 |
1300-1400 |
Solid blocks |
42 |
240×115×53 |
7560-8894 |
Porous blocks |
21 |
240×115×90 |
3780-4420 |
Brick machines be sent photos
Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.
How about the quality of our machine?
Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery
How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.
Note: Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
