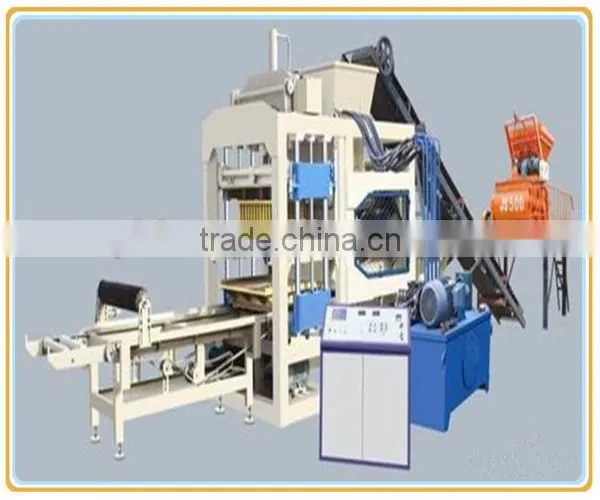

China Mult function Fully auto brick making machine line
I. Description of brick making machine line:
QT4-15 Concrete block machine is suitable for each concrete block factory production of various kinds of wall material block, road block, tracery wall blocks, using hydraulic conveying pressure molding, high speed and strong vibration, ensure molding products of high quality, floor tile shop layered cloth can be optionally producing all kinds of color, especially suitable for the production of high content fly ash Solid blocks, porous blocks, etc.
II. Features of Brick making machine line :
1.Multi function: host displacement different molds can produce a variety of products. Such as the standard bricks, hollow brick, road brick, porous blocks ,etc..
2.Less electricity: in the process of operation, the motor is running for the moment, therefore, less electricity performance highlights.
3.Fast speed: the use of concave and convex mold landing fast, host molding and automatic material storage synchronously moving plate system makes the turnover plate instant replacement and forming a 26 block class output with habitat type vanguard.
4.High quality: special mold materials by professional staff Seiko made by the product geometry size, standard, the external quality and inner quality, unique design and mold shock combined external force caused by the product reaches the limit in the molding, so the density is very high, greatly improve the product the compressive and flexural strength.
5.Easy to operate: the machine molding pressure, the raw material used in water less at low temperatures can still production, equipment operation cycle is relatively prolonged years.

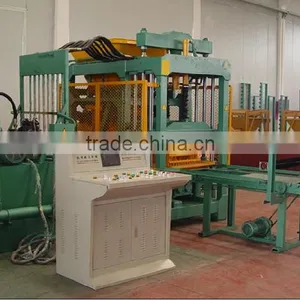

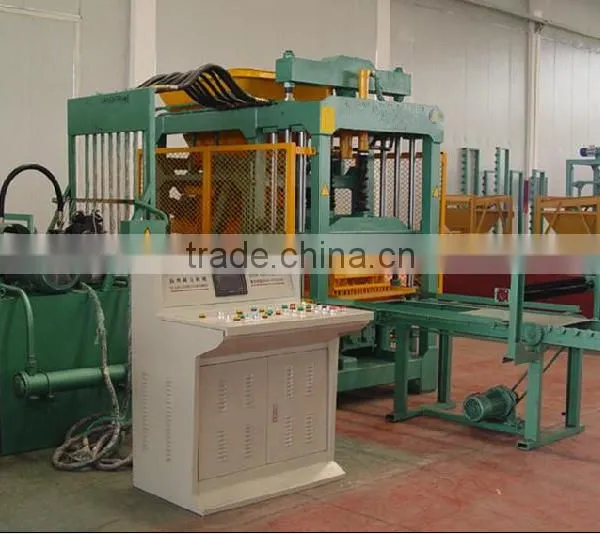

Brick making machine working photo
III. Main parts of the whole unit :

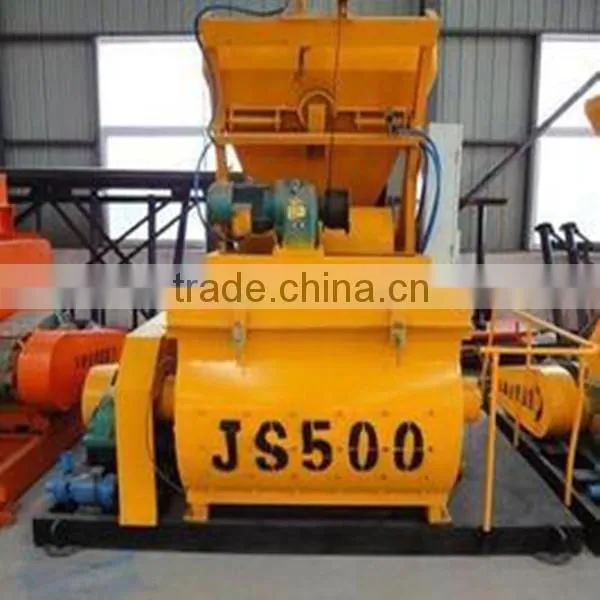

1.Mixer
Put all the materials into the mixer tank and mixed in it at the same time. It need one worker to operate the mixer.
2.Conveyor :
The mixed materials down from mixer conveyed to molding machine hopper for making blocks.
3.Brick machine :
The molding machine is the key of all production line. By pressing the mixed materials, it can make hollow bricks, porous bricks and standard bricks with different moulds.
It is controlled by PLC and Hydraulic station.
3.Block conveyor frame:
It will support the fresh blocks.
The fresh block/brick come out from mould convey to the block conveyor.
4.Trolley:
The trolley will transport the pallets with fresh blocks to the store yard for curing. Usually transport 3 pallets each time.
IV. Making bricks and pavers materials :
Making pavers and blocks materials

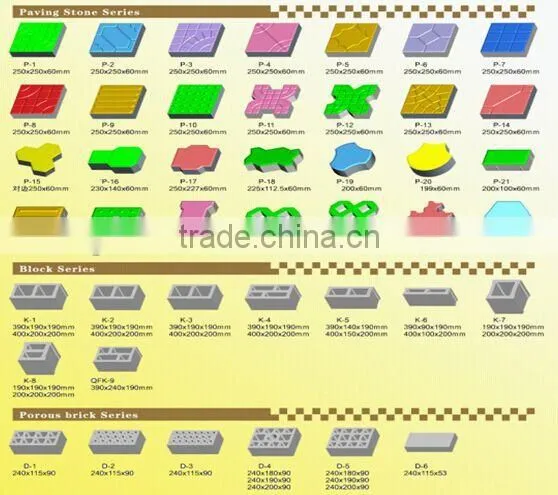

Bricks sample for reference
Brick moulds photos
Cement brick photo
V. Technical parameter of Brick making machine line:
Pieces /Pallet |
4Pcs (390*190*190)mm 28Pcs(240*115*53)mm |
Forming cycle |
15s |
Theoretical output table |
6400-7480pcs (390*190*190)mm 50000-53760pcs (240*150*53)mm |
Vibration frequency |
4800times/minutes |
Exciting force |
40-50KN |
Machine power |
26kw |
Overall size |
9500*2800*2750mm |
Machine weight |
7.5T |
Executive standard |
GB/T8533-1998 |
Production capacity | |||
Product specification (mm) |
Pcs/mould |
Pcs/hour |
Pcs/8hour |
|
Hollow block 390×190)×190mm |
4 |
960 |
7680 |
|
Porous block 240×115×90mm |
13 |
3360 |
26880 |
|
Solid block 240×115×53mm |
26 |
6720 |
53760 |
Machine be sent photo
Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.
How about the quality of our machine?
Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery
How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.
Note: Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
