China High quality save energy Sand Cement ball grinding mill design

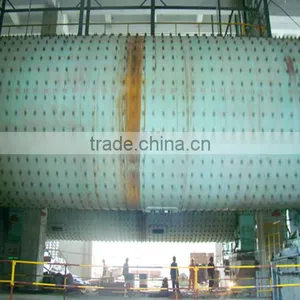

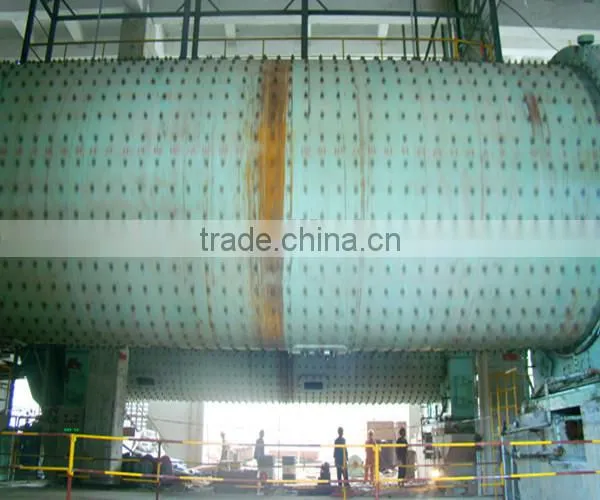

Ball grinding mill photos in our working shop
I. Description of Cement Ball grinding mill :
The ball mill is used to grind many kinds of mine and other materials, or to select the mine.
Ball mill is widely used in building material, black metal,nonferrous metal mining section, electricity, coal, traffic, chemical industry, etc. There are two ways of grinding: the dry process and the wet process.
Ball mill can be divided into tabular type and flowing type according to different forms of discharging material.
II. Working principle of Cement Ball grinding mill :
Ball mill is a horizontal cylinder, and front-rear, hollow shaft, and grind. Within the cylinder for a long cylinder, cylinder is equipped with the grinding body, cylinder for steel manufacturing, steel plate and cylinder fixed. The grinding medium is commonly steel ball .
And according to the different diameter and a certain proportion into the cylinder, the grinding medium steel section is also available.
III.Cement Ball grinding mill Main parts include :
Feeding part ,discharging part, Rotary part, Transmission, Reducer, Small gear,motor, electric control and other major parts.

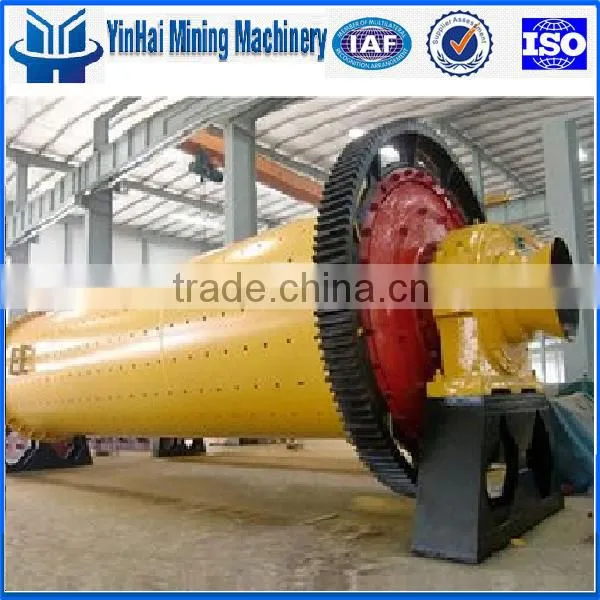

Main parts of Cement ball mill photo
Ball grinding mill accessories:
A ball mill wheel, ball mill pinion and mill hollow shaft, ball mill gear ring, ball mill big gear ring, ball mill, ball mill storehouse board, insulation ball mill gearing, ball mill bearing, ball mill end lining and so on.
Cement ball grinding mill working drawing photo
III. Technical Parameter of Cement Ball grinding mill :
Model |
Material |
Material out |
Capacity (t/h) |
Speed (t/min) |
Max weight |
Motor |
Weight |
in size mm |
size mm |
|
|
of ball(t) |
Power(kw) |
(t) |
|
Φ900*1800 |
≤20 |
0.075-0.89 |
0.65-2 |
36-38 |
1.5 |
18.5 |
4.6 |
Φ900*3000 |
≤20 |
0.075-0.89 |
1.1-3.5 |
36 |
2.7 |
22 |
5.6 |
Φ1200*2400 |
≤25 |
0.075-0.6 |
1.5-4.8 |
36 |
3 |
30 |
12 |
Φ1200*3000 |
≤25 |
0.075-0.4 |
1.6-5 |
36 |
3.5 |
37 |
12.8 |
Φ1200*4500 |
≤25 |
0.075-0.4 |
1.6-5.8 |
32.4 |
5 |
55 |
13.8 |
Φ1500*3000 |
≤25 |
0.075-0.4 |
2-5 |
29.7 |
7.5 |
75 |
15.6 |
Φ1500*4500 |
≤25 |
0.075-0.4 |
3-6 |
27 |
11 |
90 |
21 |
Φ1500*5700 |
≤25 |
0.075-0.4 |
3.5-6 |
28 |
12 |
130 |
24.7 |
Φ1830*3000 |
≤25 |
0.075-0.4 |
4-10 |
25.4 |
11 |
130 |
28 |
Φ1830*4500 |
≤25 |
0.075-0.4 |
4.5-12 |
25.4 |
15 |
155 |
32 |
Φ1830*6400 |
≤25 |
0.075-0.4 |
6.5-15 |
24.1 |
21 |
210 |
34 |
Φ1830*7000 |
≤25 |
0.075-0.4 |
7.5-17 |
24.1 |
23 |
245 |
36 |
Φ2100*3000 |
≤25 |
0.075-0.4 |
6.5-36 |
23.7 |
15 |
210 |
34 |
Φ2100*4500 |
≤25 |
0.075-0.4 |
8-43 |
23.7 |
24 |
245 |
42 |
Φ2100*7000 |
≤25 |
0.075-0.4 |
8-48 |
23.7 |
26 |
280 |
50 |
Note : We also have other bigger models.

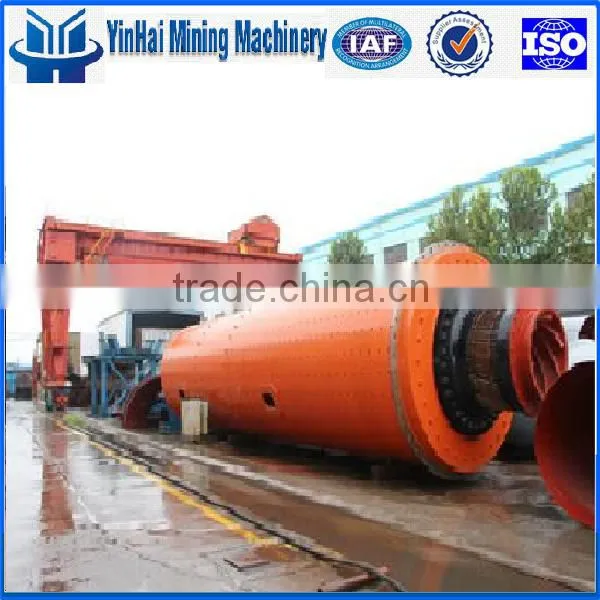

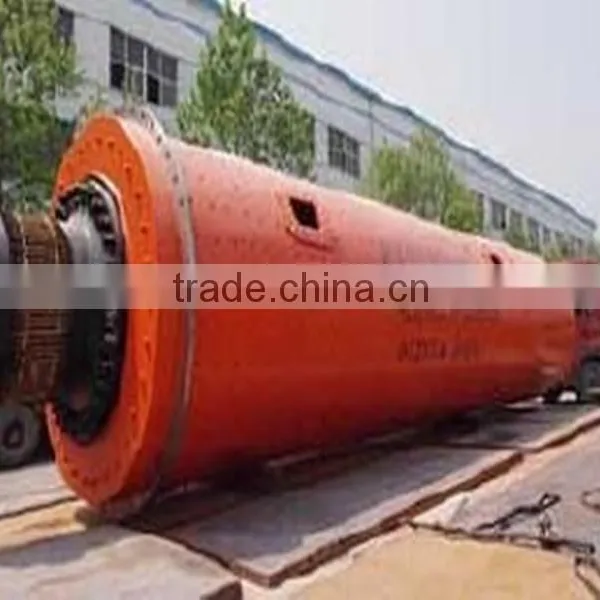

IV. Photos of Cement Ball grinding mills

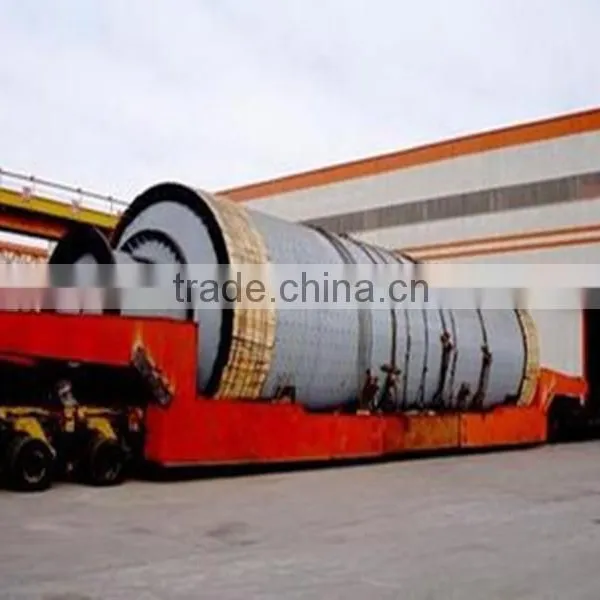

Ball mill ready for sending to customer photos
We’re specialize in this field for several years. With best service and competitive price ,good products quantity . we’re 2year Alibaba gold supplier.
More service we can provide :
1.Professional free design .
2.OEM support .
3.Low MOQ .
4.Fast Delivery .
Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.
1.How about the quality of our machine?
Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery.
2.How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.
3.How about the after-sale service of your company?
Our engineer is aviliable to installation machine overseas.
The guarantee period of our machine is one year.
Spare parts will supply at any time.
Note:
Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
