Cement raw material milling Portable ball mill price list
- 450 Set / Sets per Month
- any port in china
- T/T L/C D/P D/A
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 18.5-800 | Capacity(t/h): | 0.65-90 | Place of Origin: | Henan, China |
Brand Name: | YinHai | Model Number: | 900*3000 | Dimension(L*W*H): | 900*1800-3200*4500 |
Weight: | 4.6-137T | Certification: | ISO9001:2008 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Cement raw material milling Portable ball mill price list

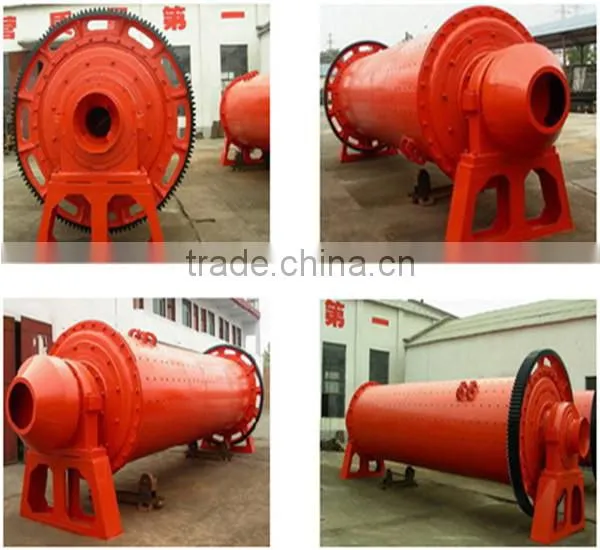

I.Introduction of Portable ball mill
The cone ball mill is widely applied in mineral classification, cement, fireproof materials, glass, pottery, chemical industry and so on. The ball mill can grind all kinds of rocks and grinding materials. There are two ways of grinding: the dry process and the wet process.
II. Working Principle of Portable ball mill

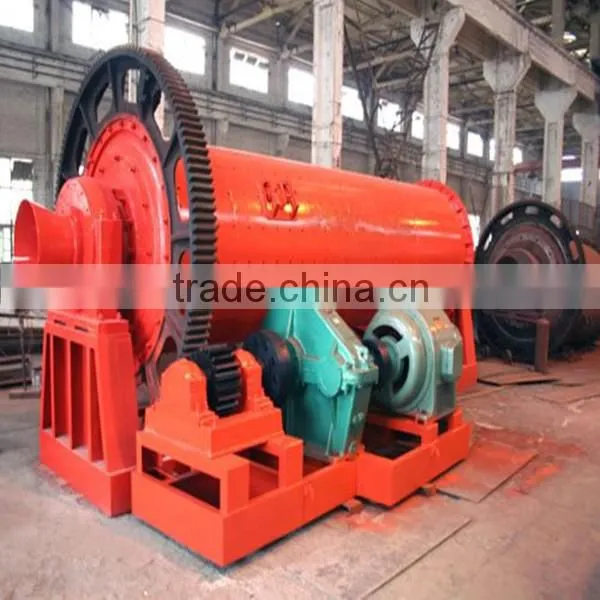

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.
III.Main technical parameters of Portable Ball mill
Model | Shell rotation speed(r/min) | Ball load(t) | Feeding size(mm) | Discharging size(mm) | Capacity | Motor power(kw) | Weight(t) |
(t/h) | |||||||
Ø900*1800 | 36-38 | 1.5 | <=20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
Ø900*3000 | 36 | 2.7 | <=20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
Ø1200*2400 | 36 | 3 | <=25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
Ø1200*4500 | 32.4 | 5 | <=25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
Ø1500*3000 | 29.7 | 7.5 | <=25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
Ø1500*4500 | 27 | 11 | <=25 | 0.074-0.4 | 3-6 | 110 | 21 |
Ø1500*5700 | 28 | 12 | <=25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
Ø1830*3000 | 25.4 | 11 | <=25 | 0.074-0.4 | 4-10 | 130 | 28 |
Ø1830*6400 | 24.1 | 21 | <=25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
Ø1830*7000 | 24.1 | 23 | <=25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
Ø2100*3000 | 23.7 | 15 | <=25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
Ø2100*4500 | 23.7 | 24 | <=25 | 0.074-0.4 | 8-43 | 245 | 42 |
Ø2100*7000 | 23.7 | 26 | <=25 | 0.074-0.4 | 8-48 | 280 | 50 |
Ø2200*4500 | 21.5 | 27 | <=25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
Ø2200*6500 | 21.7 | 35 | <=25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
Ø2200*7500 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-30 | 380 | 56 |
Ø2400*3000 | 21 | 23 | <=25 | 0.074-0.4 | 7-50 | 245 | 54 |
Ø2400*4500 | 21 | 30 | <=25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
Ø2700*4500 | 20.7 | 48 | <=25 | 0.074-0.4 | 12-90 | 430 | 102 |
Ø3200*4500 | 18 | 65 | <=25 | 0.074-0.4 | ----- | 800 | 137 |
Before sale:
Be a good consultant and assistant of our customer to ensure our customer's investment will be rewarded with great profit.
1.Select the right model of equopment for customer.
2.Our service engineers would be ready for service 24 hours per day.
3.We will answer your qustion any time
4.Provide training for customer's technician
During sale:
Respect every customer and provide them convenience and reliability.We are devoted to help customer gain more.
1.Inspect before accept the products sent by us.
2.Assist our customer to make a constrution plan.
After sale:
1.The installation and testing of equipment.
2.We would be ready for service 24 hours per day to accept your feedback .
3.we would provide maintaince if our product have problem.
Leadtime:
25-30 days after confirm the order.

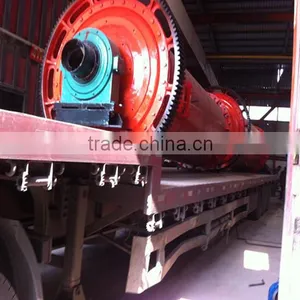

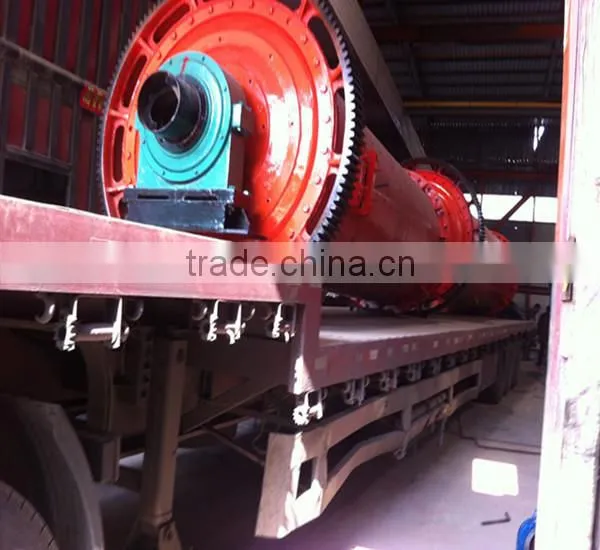

Packing:
naked or as your requirement
Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.
How about the quality of our machine?
Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery.
How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.
How about the after-sale service of your company?
Our engineer is aviliable to installation machine overseas.
The guarantee period of our machine is one year.
Spare parts will supply at any time.
