Wholesales & Retails AHRS for car navigation, human body capture,remote control helicopter,Truck mounted satellite

1pcs/box with sponge, 100pcs/ctn

Specifications

1.High performance drift stability
2.Long life, strong stability
3.Low noise,Light weight
4.Excellent vibration performance

Wholesales & Retails AHRS for car navigation, human body capture,remote control helicopter,Truck mounted satellite

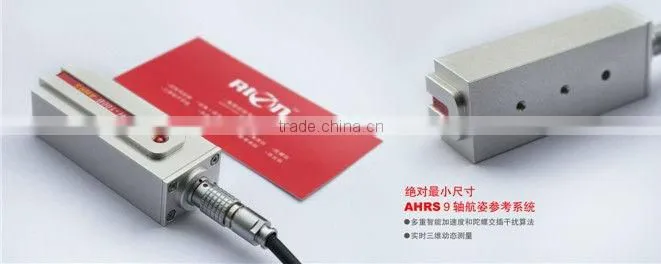

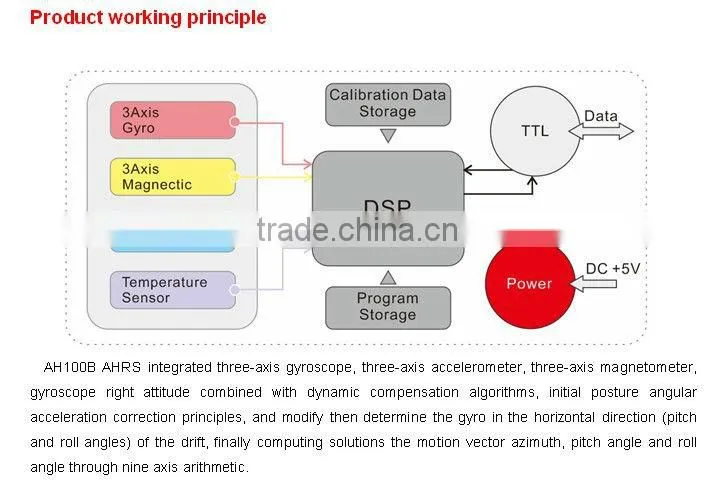

AH100B is a high performance AHRS (Mini AHRS) with low price, can be widely used in aircraft model , unmanned aerial vehicles, robots and other high homeostasis electromechanical devices. The device through collecting sensor data and fusion kalman filter, output real-time gesture data, because of using three-axis accelerometer and three-axis magnetic sensor to assist the three-axis gyroscope and  temperature compensation algorithm technology, making the product to achieve full posture excellent stability and instantaneity, it is widely used in all kinds of sports attitude monitoring fields. The product not only can output attitude data, throught modifying the system parameters,but also can output the raw data of sensor like Physical quantities, quaternion, etc , meanwhile can modify the system running period to facilitate a variety of interfaces , use flash IAP (in application program) technology , according to the user needs, to keep the user's parameters after power off can still remember, in favour of user's secondary development .

Features

• Intergrated nine axis sensor and temperautre sensor
• Multiple intelligent acceleration and gyro cross interference algorithm
• High performance drift stability
• Low noise
• Light weight
• Long life, strong stability
• Highly cost-effective   Excellent vibration performance
• 50Hz updated rate
• Compact and lightweight design
• TTL/RS232 output optional
• Wide temperature working:-40 ~ +85°
• DC+5V power supply
• Real time 3D dynamic measurement

Application

• Military & Industry
• Navigation
• Car Navigation
• Platform stability
• The human body to capture
• Remote control helicopter
• Truck mounted satellite
• Industry control





Technical data







Company and Factory

Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.

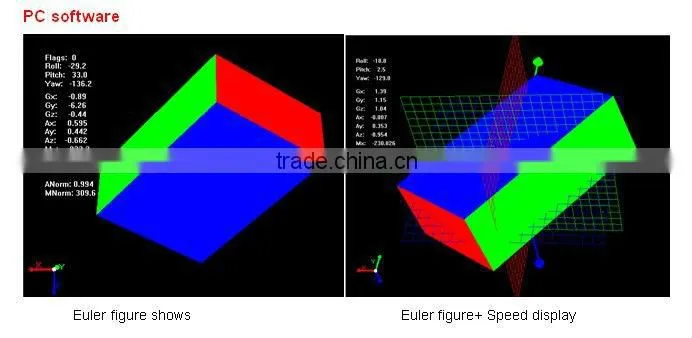

Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.

You satisfaction is our mission.



Certificates & Honor







• Packaging: carton with sponge
• Delivery time: within 7 business days for common order after we receive the full payment
• Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.

  Our Services

Pre-sale service

• Evaluate your application, recommend the most suitable item;
• Make you fully understand the products, usage and maitenance;
• Answer all your questions, and let you have no doubt before make any decision;
• Adjust, revise or redesign our products to consist with the application(for customized service);

Sales service

• Recommend the best payment term and shipping term for you;
• Make official quotation and PI with company Stamp;
• Keep you posted about the products producing;
• Send exactly requried products on time;
• Provide tracking NO. and inform you when products leave factory and arrive destination;

Post-sale service

• Instruct products connection, installation and application;
• if anything happen to products(barely will), engineer will evaluate the problem, solve the problem or exchange malfunction item for free, make sure you get the best solution and service.
• Keep tracking the products usage and ask for suggestion and advice.

  FAQ
• How to choose suitable item: bowse our webiste and choose products by catalog, or contact us directly by email, skype, TM.
• How to buy: We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
• How to ship: by DHL, Fedex, UPS, EMS, TNT and ARAMEX Express mainly, we have long term and reliable logistic cooperator to ensure the safety and cost-saving
• How to apply: We provide instruction manual, software and online service to instuct you to connect, install, use and maintain our products.
• What if anything happen to products: contact us, we will evaluate the problem and instruct you, exchange the wrongly purchased item or fix the malfunction item for free...till you get the best solution.
• What if no suitable item to be found: customerized service is available.
• How to cooperate: we offer technical support, products info, samples, favorable terms&condition and sales support in concerned region.
