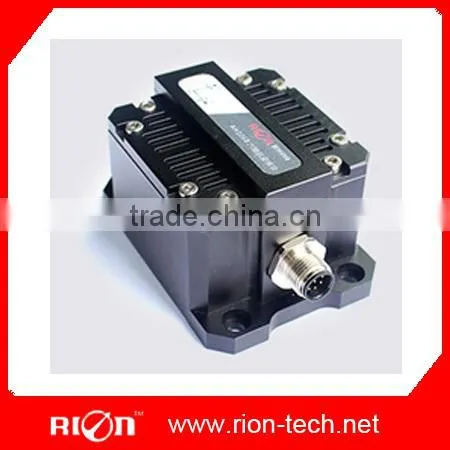

Digital Output Advanced AHRS With Excellent Vibration Performance and Low Noise MADE IN CHINA
- 1000 Unit / Units per Month
- Shenzhen
- Credit Card
-
Smart AHRS Sensor Intergrated Nine Tilt Sensors & Temperature Sensor ,Can Real Time 3D Dynamic Measurement
-
Full Posture Excellent Stability AHRS Widely Used For Various Moving Posture Monitoring Fields
-
High Performance Portable mini AHRS From Reliable Shenzhen Factory
-
GPS combination Using MEMS AHRS Platform Stability Military & Industry Using AHRS Sensor Low Cost AHRS
-
AH-100B AHRS
-
AHRS supplier manufacturer based on MEMS
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | RION | Model Number: | AH106B |
| Usage: | Position Sensor | Theory: | Other, MEMS | Output: | Digital Sensor |
Packaging Details
1pcs /inner box , 100pcs/ctn
Product Description
Digital Output Advanced AHRS With Excellent Vibration Performance and Low Noise MADE IN CHINA
- UAV posture control
- vessel posture calculation
- Agricultural machinery control
- Communication vehicle radar
- Truck - mounted satellite
- Industrial Manipulator
- 3D Virtual Reality
- underwater robot
- RC Helicopter
- robot
- Ships electronic
Technical index of accelerometer
Measure range | ±2 | ±08 | ±40 | g |
Bias calibration | <2 | <5 | <10 | mg |
Measure axis | X,Y,Z | X,Y,Z | X,Y,Z | axis |
Output signal | 0-5V;4-20mA;RS232;RS485;RS422 available | |||
Annual bias stability[2] | 1.5 (<5) | 7.5 (<25) | 22 (<75) | Mg typical value(max value) |
power-up/power-off repeatability | <10 | <10 | <20 | mg(max value) |
Power-up stability time | <25 | <25 | <25 | ms |
Bias temperature coefficient[3] | 0.1 | 0.5 | 1.5 | mg/℃ typical value |
| ±0.4 | ±2 | ±6 | mg/℃ max value |
Resolution/threshold value (@ 1Hz) | < 1 | < 5 | < 15 | mg(max value) |
Non-linearity | <0.1 | <0.5 | <0.6 | % FS(max value) |
| <0.02 | <0.09 | <0.27 | g(max value) |
bandwidth[4 ] | 0~≥400 | 0~≥400 | 0~≥400 | Hz |
resonance frequency | 1.6 | 6.7 | 6.7 | kHz |
Output speed(digital version) | 5Hz,15Hz,35Hz,50Hz,100Hz,300Hz (settable) | |||
Unless special description, all parameters testified under condition ±20℃(±68℉)and 12VDC. | ||||
Power supply voltage | DC 9~36V |
Working current | <60mA |
insulation resistance
| ≥100mega-oh |
Anti-impact | 200g pk,2ms,½sine |
Anti-shock | 10grms,10~1000Hz |
waterproof | IP67(air plug) IP68(direct lead) |
Connector | 8 pin air plug, 1m cable(analog version) 5 pin air plug, 1m cable(RS232/RS485) 8 pin air plug, 1m cable(RS422) |
Screw | 4*M5 |
weight | <250g(exclude cable) |
Working temperature | -40℃~ +85℃ |
Storage temperature | -55℃~ +100℃ |
Low air pressure | 1.9×104Pa; |
RH | 95%(25℃),shall not lower than 30% within operation temperature |
salt-mist, mycete | Fit GJB1060 |
MTBF | ≥50000 hours/time |
credence
| 0.
|
