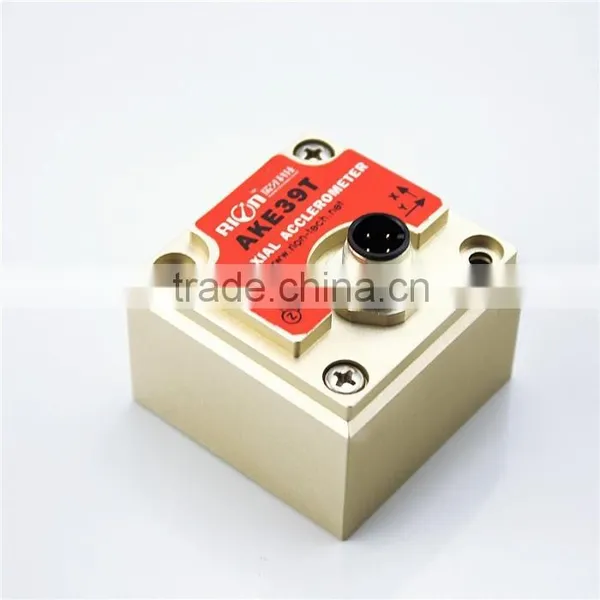

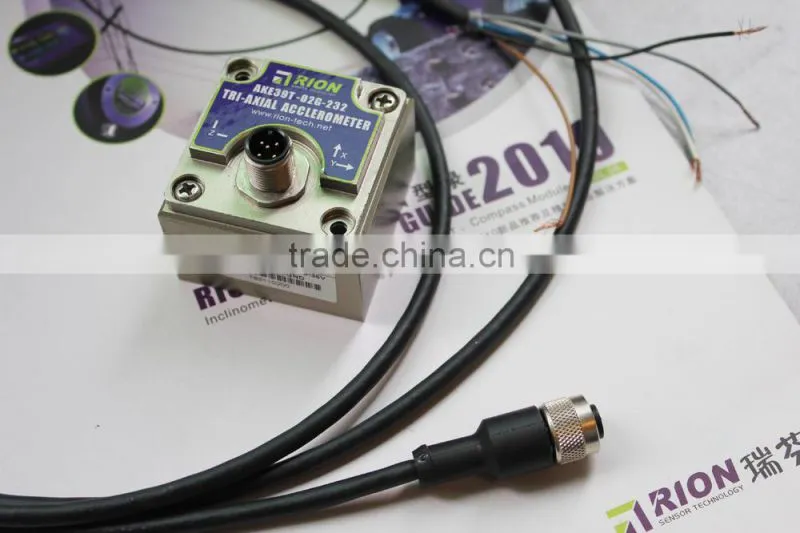

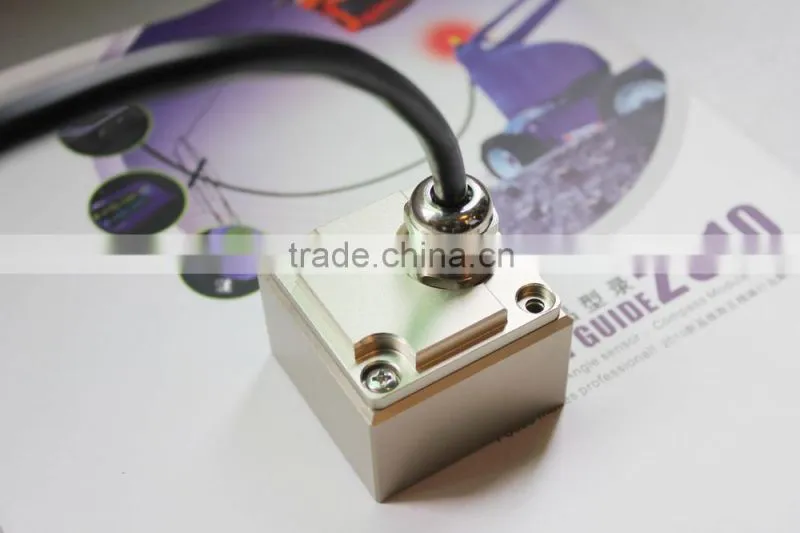

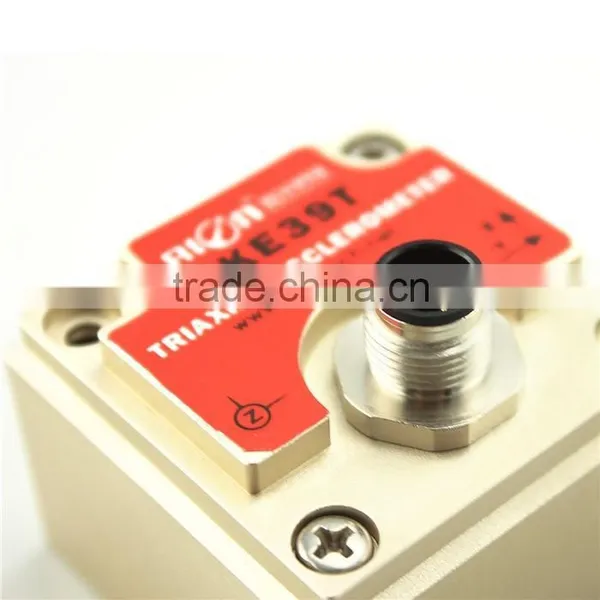

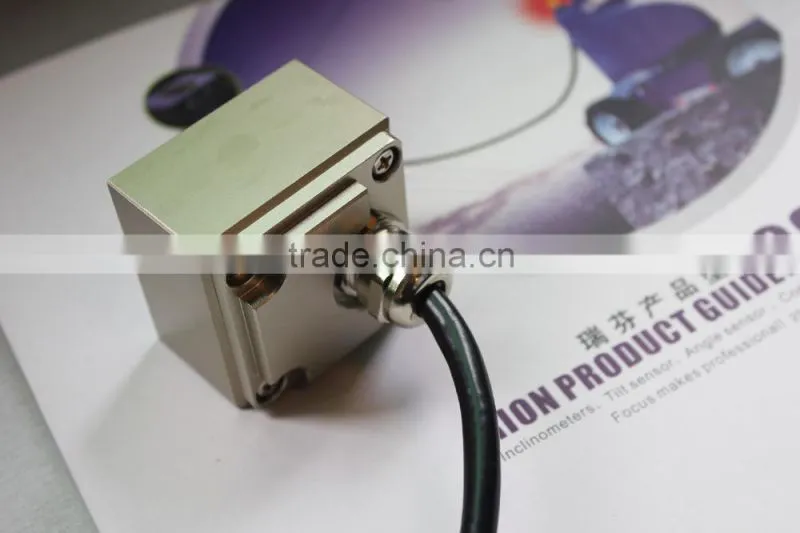

Triaxial Digital Accelerometer Vibration Sensor With RS232 To USB Connection Industry Using
General Description
AKE392B three-axis accelerometer sensor series products isRION company imported the Switzerland patented technology to produce for using widely, suitable for vibration testing, impact testing and more fields. The product uses a digital interface output, RS232/485/TTL optional, can be set to a different address code, long distance series with multiple sensors to facilitate multi-point measurement and data analysis.AKE392B is a monocrystalline silicon capacitive sensor, composed by a silicon chip of micro-mechanical treatment, low power ASIC for the signal adjustment, a microprocessor for storing compensation value and a temperature sensor. The product with low power consumption, after calibration, firm structure, stable output . New electronic configuration reset to provide a solid-state power, to provide comprehensive protection for overcurrent. Scale factor in the full range of long-term stability and the deviation is typically less than 0.1%.This series products with firm structure,low power consumption, excellent deviation stability .etc characteristics to guarantee the reliability of outstanding output .
Key Features
- Three axis measurement optional (X,Y,Z)
- Output signal:RS232/RS485/TTL
- Voltage supply:9-36V
- Shock resistance:2000G
- Size:L47×W47×H38mm
- Weight:100g
- Working temperature:-40°C to +85°C
- Storage temperature:-55°C to +100°C
- Measuring range optional:±01G;±02G;±04G;±08G;±16G;±32G;±40G
- Excellent deviation stability Good environment performance shock,vibration and temperature)
Application
- Crash records, fatigue monitoring and forecasting
- Military and civilian flight simulator
- The shipboard satellite tracking system
- Low frequency vibration and automatic monitoring
- Traffic system monitoring, the roadbed analysis and high-speed railway fault detection
Technical Data
AKE392B Three-axis accelerometer | ||||
|
AKE392B -02 |
AKE392B-08 |
AKE392B-40 |
Unit |
Measuring range |
±2 |
±08 |
±40 |
g |
Deviation calibration |
<2 |
<5 |
<10 |
mg |
Meausring Axis |
X,Y,Z |
X,Y,Z |
X,Y,Z |
Axis |
Annual deviation stability[2] |
1.5 (<5) |
7.5 (<25) |
22 (<75) |
mg typical value( Maximum value) |
Power on/off repeatability |
<10 |
<10 |
<20 |
mg(Maximum value) |
Deviation temperature coefficient[3] |
0.1 |
0.5 |
1.5 |
mg/℃ typical value |
|
±0.4 |
±2 |
±6 |
mg/℃ typical value |
Resolution/threshold (@ 1Hz) |
-50 / 250 |
-50 / 250 |
-50 / 250 |
(Minimum/Maximum value) |
|
< 1 |
< 5 |
< 15 |
mg(Maximum value) |
Nonlinearity |
<0.1 |
<0.5 |
<0.6 |
% FS(Maximum value) |
Bandwidth[4 ] |
<0.02 |
<0.09 |
<0.27 |
g(Maximum value ) |
|
1~≥400 |
1~≥400 |
1~≥400 |
Hz |
Resonance frequency |
1.6 |
6.7 |
6.7 |
kHz |
Output interfaceOutput rate |
5Hz,15Hz,35Hz,50Hz,100Hz,300Hz can be set |
|||
Output signal |
RS232/RS485/RS422/TTL/PWM/CAN |
|||
Reliability |
MIL-HDBK-217,Grade two |
|||
Shock resistance |
100g@11ms,3Times/Axis(half sinusoid) |
|||
Recovery time |
<1ms(1000g, 1/2 sin 1ms, impact in I shaft) |
|||
Vibration |
20g rms,20~2000Hz (Random noise,o ,p,I each shaft effect 30 minutes) |
|||
LCC sealed |
Meet MIL-STD-833-E |
|||
Input(VDD_VSS) |
9-36 VDC. |
|||
Output voltage range |
0~5 VDC @12VDCInput voltage( 0 g as 2.5V±10mV) |
|||
Operating current consumption |
<60mA @ 12 VDC |
|||
Weight |
Typical value:100g |
|||
Size |
Typical value: L47×W47×H38mm, |
|||
Unless other specified,all the parameter values were tested under ±20℃(±68℉)and 12VDC conditions. | ||||
