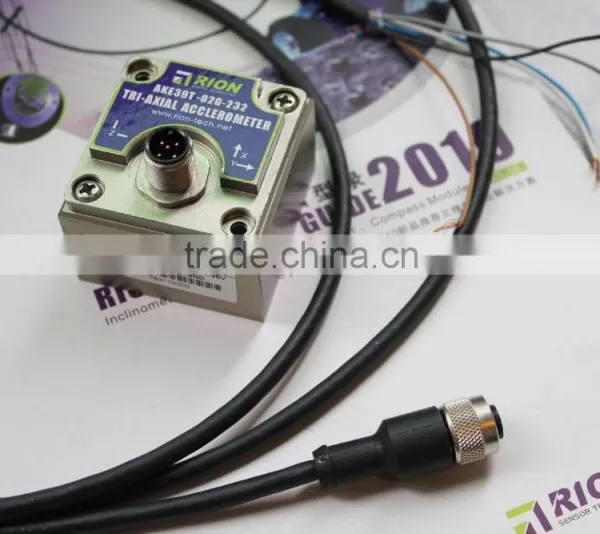

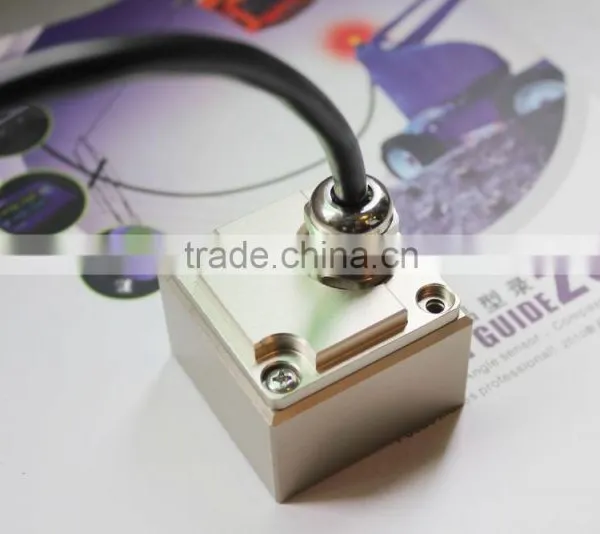

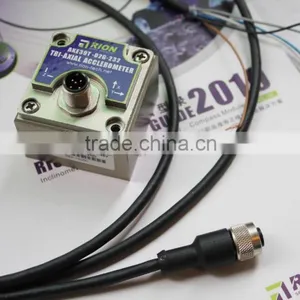

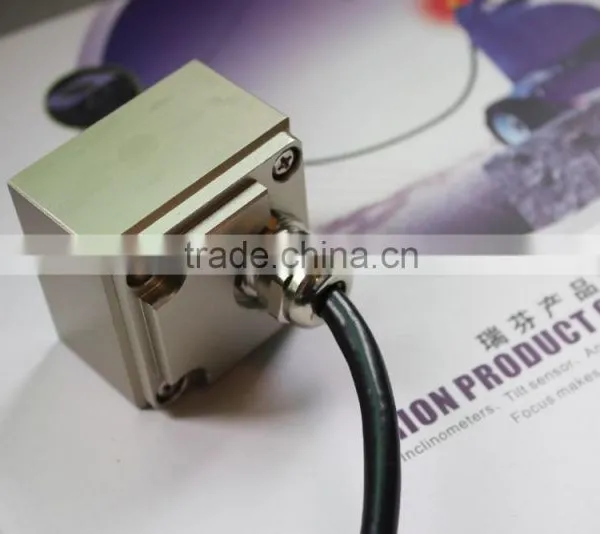

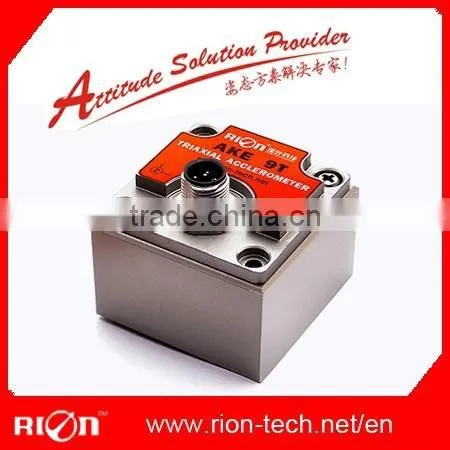

Excellent Performance Analog Accelerometer Sensor With Low Cost
General Description
AKE390B voltage type accelerometer sensor series products isRION company imported the Switzerland patented technology to produce for using widely, suitable for vibration testing, impact testing and more fields. This series products with firm structure,low power consumption, excellent deviation stability .etc characteristics to guarantee the reliability of outstanding output .
AKE390B is a monocrystalline silicon capacitive sensor, composed by a silicon chip of micro-mechanical treatment, low power ASIC for the signal adjustment, a microprocessor for storing compensation value and a temperature sensor. The product with low power consumption, after calibration, firm structure, stable output . New electronic configuration reset to provide a solid-state power, to provide comprehensive protection for overcurrent. Scale factor in the full range of long-term stability and the deviation is typically less than 0.1%.
Key Features
- Three axis measurement optional (X,Y,Z)
- Output signal:0-5V
- Voltage supply:9-36V
- Shock resistance:2000G
- Measuring range optional:±01G;±02G;±04G;±08G;±16G;±32G;±40G
- Excellent deviation stability
- Good environment performance shock,vibration and temperature)
- Size:L47×W47×H38mm
- Weight:100g
- Working temperature:-40°C to +85°C
- Storage temperature:-55°C to +100°C
Application
- Crash records, fatigue monitoring and forecasting
- Traffic system monitoring, the roadbed analysis and high-speed railway fault detection
- Military and civilian flight simulator
- The shipboard satellite tracking system
- Low frequency vibration and automatic monitoring
Technical Data
Measuring range |
±2 |
±08 |
±40 |
g |
Deviation calibration |
<10 |
<50 |
<150 |
mg |
48h deviation stability |
0.5 |
<1 |
<2 |
mg Typical value |
Meausring Axis |
X,Y,Z |
X,Y,Z |
X,Y,Z |
Axis |
Annual deviation stability[2] |
1.5 (<5) |
7.5 (<25) |
22 (<75) |
mg Typical value(Maximum value) |
Power on/off repeatability |
<2 |
<10 |
<20 |
mg(Maximum value) |
Deviation temperature coefficient[3] |
0.1 |
0.5 |
1.5 |
mg/℃ Typical value |
±0.4 |
±2 |
±6 |
mg/℃ maximum value |
|
Annual scale factor stability |
300 (< 1000) |
300 (< 1000) |
300 (< 1000) |
ppm Typical value |
Scale factor temperature coefficient |
100 |
100 |
100 |
ppm/℃(Typical value) |
-50 / 250 |
-50 / 250 |
-50 / 250 |
(Minimum/Maximum value) |
|
Resolution/threshold (@ 1Hz) |
< 1 |
< 5 |
< 15 |
mg(Maximum value) |
Nonlinearity |
<0.1 |
<0.5 |
<0.6 |
% FS(Maximum value) |
<0.02 |
<0.09 |
<0.27 |
g(Maximum value) |
|
Bandwidth[4 ] |
1~≥400 |
1~≥400 |
1~≥400 |
Hz |
Resonance frequency |
1.6 |
6.7 |
6.7 |
kHz |
Operating temperature |
-40°C to +85°C |
|||
Reliability |
MIL-HDBK-217,Grade two |
|||
Shock resistance |
100g@11ms,3Times/Axis(half sinusoid) |
|||
Recovery time |
<1ms(1000g, 1/2 sin 1ms, impact in I shaft) |
|||
Vibration |
20g rms,20~2000Hz (Random noise,o ,p,I each shaft effect 30 minutes) |
|||
LCC sealed |
Meet MIL-STD-833-E |
|||
Input(VDD_VSS) |
9-36 VDC. |
|||
Output voltage range |
0~5 VDC @12VDC Input voltage( 0 g as 2.5V±10mV) |
|||
Operating current consumption |
<3mA @ 12 VDC |
|||
Weight |
Typical value:100g |
|||
Size |
Typical value : L47×W47×H38mm, |
|||
Unless other specified,all the parameter values were tested under ±20℃(±68℉)and 12VDC conditions. | ||||
Electrical Connection
4cables socket pin |
5cables socket pin |
Cable color |
Single-axis accelerometer |
Dual-axis accelerometer |
Three-axis accelerometer |
1 |
1 |
Brown |
Power positive |
Power positive |
Power positive |
2 |
2 |
White |
X Axis voltage signal |
X Axis voltage signal |
X Axis voltage signal |
3 |
3 |
Blue |
Y Axis voltage signal |
Y Axis voltage signal |
Y Axis voltage signal |
4 |
4 |
Black |
Power GND |
Power GND |
Power GND |
|
5 |
Gray |
Z Axis voltage signal |
Z Axis voltage signal |
Z Axis voltage signal |
Our Company & Workshop View :
Certificates & Honors :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
