gyro sensor helicopter's built-in electronic gyroscope
- 100 Piece / Pieces per Month
- HK
- T/T Credit Card
- AKE292B Industrial Field Used Dual axis / 2 axis Accelerometer With Vibration Test Based On High Performance
- AKE192B Firm Structurer & Low Power Consumption Single axis Accelerometer Vibration Sensor Providing Protection For Over Current
- AKE290B Outstanding & Reliable Output Type Vibration Accelerometer Sensor In Dual axis
- MEMS BASED Accelerometer Used For Vibration Testing Sensor
- AKE390B MEMS Accelerometers | MEMS and Sensors | Analog Devices From China Shenzhen Manufacturer
- AKE392B MEMS Digital Triaxial Accelerometer Made In China
Product Details
Type: | Bearing | Use: | Other, bobot bomb | Condition: | New |

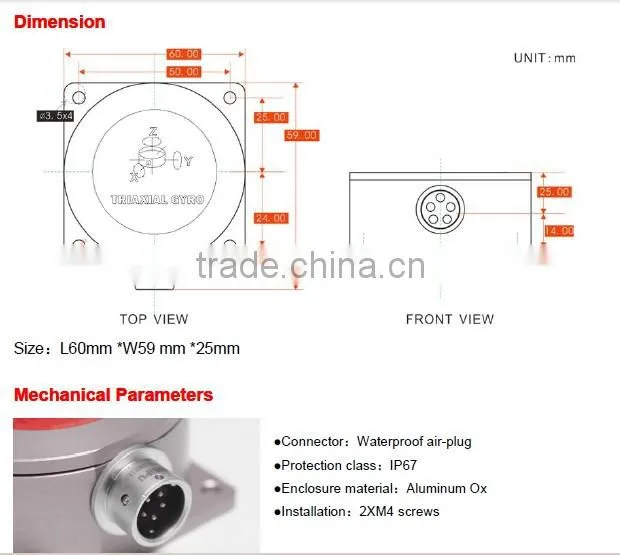

Size: | 60*59*29mm | Place of Origin: | Guangdong, China | Model Number: | TL-61T |
Brand Name: | RION |
Packaging Details
in Sponge&Cartons
Product Description
Specifications
1. High drift stability2. Temperature drift no more than 0.2deg/sec
3. Long-life and strong stability
4. Wide temp

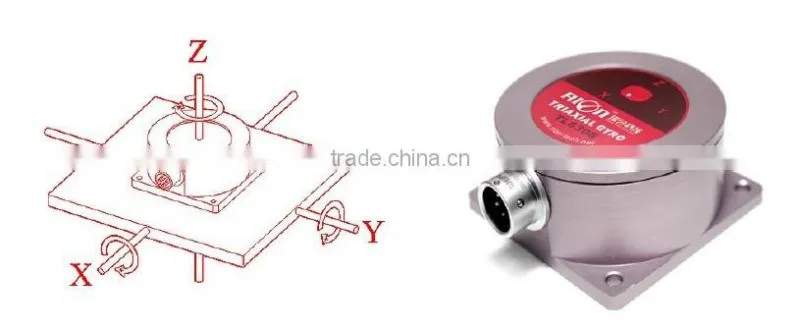

Gyro Sensor,Helicopter's Built-in Electronic Gyroscope
General Description
TL610D is a gyroscope (angle rate sensor)based on the micro mechanical principle,a miniature inertial devices for mainly measuring the angular velocity of a moving object. Product internal withthe silicon ultrafine precision ring sensing technology so that it has a high-performance, waterproof,anti-vibration, light weight,anti-electromagnetic interference characteristics and etc. Uninterrupted the machine with self-test technology, the filtering algorithm and the first time in the country by eliminating resonance technology to solve the influence on data because of the surrounding noise or vibration interference source to the ordinary gryoscope. TL610D add another new temperature sensor compensation technology to solve the temperature drift impact problems,with over-temperature stability and long life characteristics etc. to realizethe domestic similar products technology-leading technology.
Products with high cost-effective, small volume,more advantages than the FOG in application fields, is now widely used in the automotive, military, marine, moving objects, position control & attitude control, and other applications that require precise angle measurement occasions!
Key Featuers
1.High performance drift stability
2.Low noise
3.Light weight
4.Long life,strong stability
5.Cost-effective
6.Excellent vibration performance
7.All solid state
8.Compact & light design
9.0~5V voltage output
10.Wide temperature range
11.DC+9~36V power supply
12.Temperature drift< ±0.2°/sec
Application
1.Military & Industry
2.Navigation
3. Car navigation
4.Platform stability
5. Auto safety system
6.Remote control helicopters
7.Turck-mounted satellite antenna equipment
8.Industrial control
9.Equipments
10.GPS combination
11.Camera stability
12.Robot
13.3D virtual reality
14.Ships electronic needle error compensation on inclined(angle rate)inductioni equipment
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
Other more information please visit our website :
Now please contact us through below methods for your any requirement or comments !
Contact person : Ms kity(sales)
SHEN ZHEN RION TECHNOLOGY CO.,LTD
Factory Address:
3F/Block 5, HuaFeng Tech- Park, Xin'an Road 6 #, BaoAn Dis. Shenzhen, China
Tel : +86-755-29657137 ext 807 Cell phone: 15625295088
Fax : +86-755-29123494 MAIL: kiting AT
Skype: sz_rion_tech MSN: tradeofchina AT
RIONWEB: ALIWEB: http://rion.en.china.cn
Company Profile
RION Technology Co., Ltd. is located in a fantastic city - Shenzhen. Our company is a high technology company that integrates research, development, production and sale, and is mainly engaged in the sale of inclinometer sensors, digital compasses, digital dipmeters and acceleration sensors. These products are widely used in many industrial control fields, such as automobiles, ships, airplanes, railways, medical facilities, dam safety monitoring, oil drilling, coal mining and ocean surveying. Our company has established good business relationships with many international famous companies.
We adhere to the service guideline of "Client-centered". "Client uppermost, credit first, service best" is our business philosophy. Our company provides accurate, efficient, civilized and complete services for clients.
Let us provide you with the best products. To save purchasing cost and time, contact us now.
.
