Specifications
1. Low power consumption;2. Firm struction & stable output;
3. New electronic configuration;
4. Excellent deviation stabilit
AKE190B High Quality Single axis Analog Accelerometer China Supplier
General Description
AKE390B voltage type accelerometer sensor series products isRION company imported the Switzerland patented technology to produce for using widely, suitable for vibration testing, impact testing and more fields. This series products with firm structure,low power consumption, excellent deviation stability .etc characteristics to guarantee the reliability of outstanding output .
AKE390B is a monocrystalline silicon capacitive sensor, composed by a silicon chip of micro-mechanical treatment, low power ASIC for the signal adjustment, a microprocessor for storing compensation value and a temperature sensor. The product with low power consumption, after calibration, firm structure, stable output . New electronic configuration reset to provide a solid-state power, to provide comprehensive protection for overcurrent. Scale factor in the full range of long-term stability and the deviation is typically less than 0.1%.
Key Features
- Three axis measurement optional (X,Y,Z)

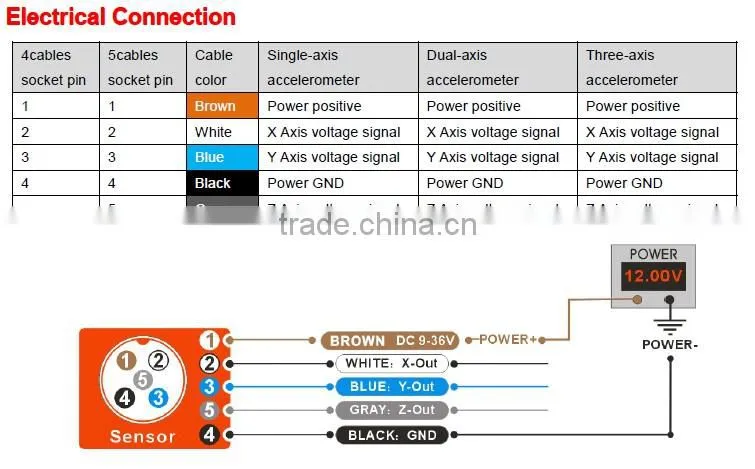

- Output signal:0-5V
- Voltage supply:9-36V

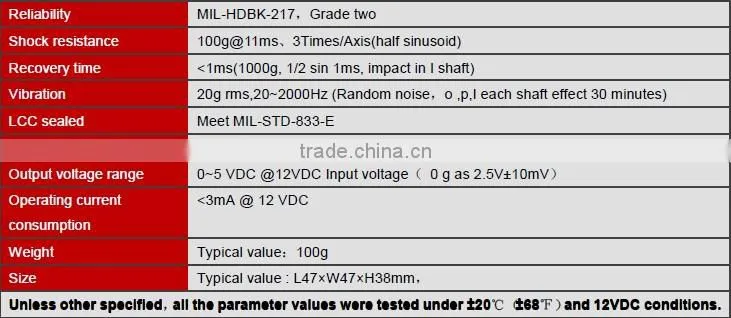

- Shock resistance:2000G
- Measuring range optional:±01G;±02G;±04G;±08G;±16G;±32G;±40G
- Excellent deviation stability
- Good environment performance shock,vibration and temperature)

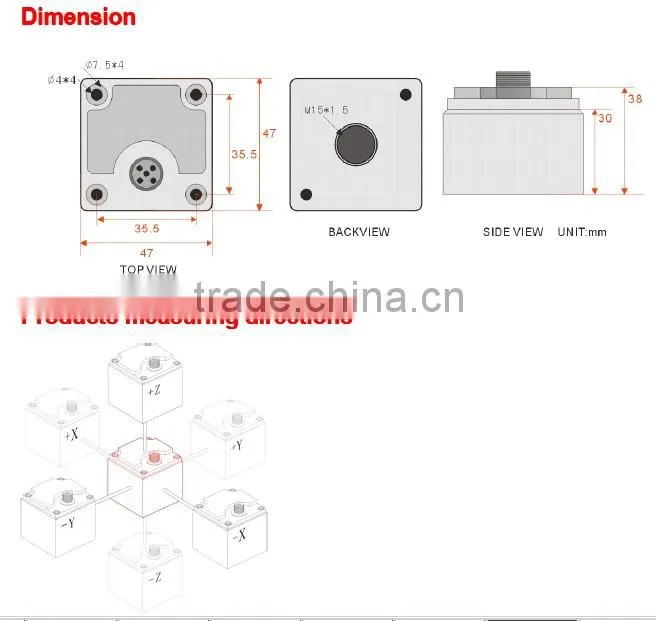

- Size:L47×W47×H38mm
- Weight:100g
- Working temperature:-40°C to +85°C
- Storage temperature:-55°C to +100°C
Application
- Crash records, fatigue monitoring and forecasting
- Traffic system monitoring, the roadbed analysis and high-speed railway fault detection
- Military and civilian flight simulator
- The shipboard satellite tracking system
- Low frequency vibration and automatic monitoring
