New Invention High Accuracy Digital Protractor Slope Sensor With Touch Screen Using External Power Supply DC9-36V

New Invention High Accuracy Digital  Protractor Slope Sensor With Touch Screen  Using External Power Supply DC9-36V

General Description

DMI815 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.Thecore of this product is using the micro-mechanical control principle, dual-core measurement unit,can use the Y-axisto compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI815 is a single axis 90deg measurement, resolution 0.001 °,the highest accuracy <0.005 degree full-scale,fast response, stable data, products specially designed forthe sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI815 (SMI815) with the use of separate measurement, used in combination with the Division HCA series tiltsensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI815 series has strong scalability, convenient & practical application andindustrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

Features:

• Best accuracy:<0.003°
• Repeatability:0.003°
• Angle resolution:0.001°
• Maximum measuring range:±30°
• User can set the alarm value by himself
• Data store function
• Absolute/Relative measurement can switch
• Both sides and bottom can measure
• Working Temperature : -10°~ +70℃
• Auto temperature drift compensation
• User can calibrate ZERO by himself
• IP54 protection class
• °/mm/m Dual units switch function
• Filter frequencyoptional
• Three kinds of measurement mode selectable (radian, angle, mm)

Application :

• Building construction
• Automobile four-wheel testing
• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Pan unit angle detection
• Production jig
• Medical instruments

Technical Data

Ordering information

E.g:DMI815-15 is standard single-axis digital display inclinometer with measuring range ±15°

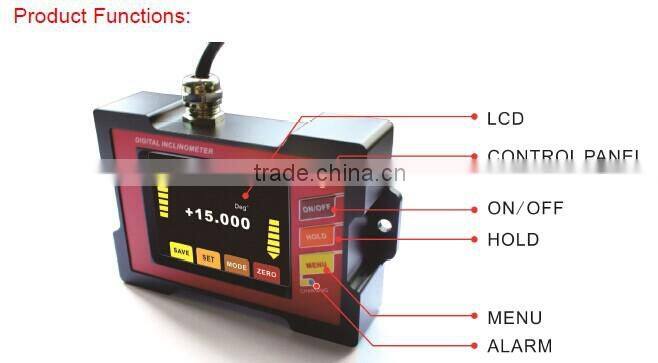

ON/OFF: Press for 2seconds to power on or off ;

HOLD:  This key to lock the current data, convenient customer records;

MENU:        Press MENU menu disappears, then re-press appears..

WARNING LIGHT:Charging warning lights, lights up means is charging, light off mens has been filled with power then can take off the charger .( In order to keep the battery with a long life please don't use it as much as possible when it is charging with power.)

Functional menu instructions :

1.ON/OFF press 3 seconds or so, when heard “beep...”Let go,startup/shutdown .

2..Press “HOLD” button to lock , re-press to unlock , Upper right corner of the monitor icon  display.

3. Press MENU menu disappears, then re-pressappears..

4.Press the“ MENU” and “HOLD”  keys at same timeto enter the touch screen calibration.

      4.1 Click “OK”  enterinto nex step ,click “EXIT” to Exit touchscreen calibration.

      4.2 Click the red dot with a small pen to move the red finish four points automatically exit calibration.

Other more data sheet pls download the file from our official website :  or contact us for sending .

RION' software for DMI815 Inclinometer ;

Products maintenance :

1. The instrument reliability and can be used in the vibration environment, please don’t  high-altitude fall the instrument to avoid cause permanent damage.

2. If found instrument damage please don’tdisassemble it by yourself, please contact us at  first for professional guidance , such as personal removed , subject to manufacturer shall refuse to repair.

Warning :

1.This producthas a high precision sensor and information processing circuit, it is forbidden to drop impact or to tear open outfit, otherwise the consequence is proud.

2. Don't press the multiple keys at the same time, it is easy to affect the service life of the

Product.

3.This product should be placed ina safe place where Children can not touch.
