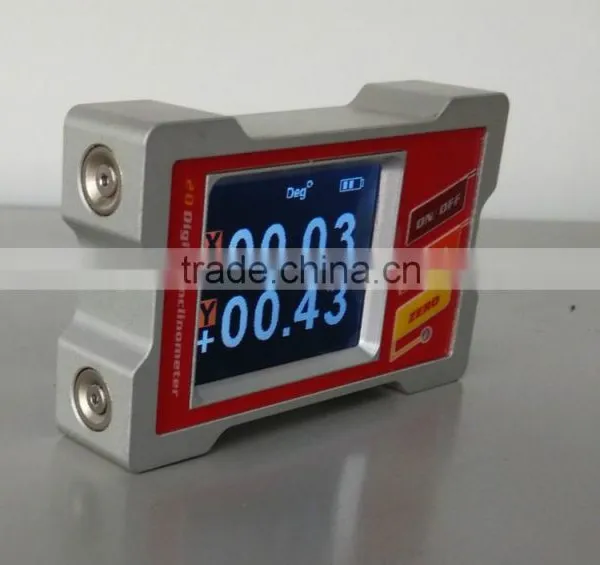

DMI310 Digital Bevel Box Inclinometer Angle Gauge Meter Protractor 360deg With Strong Magnets

1pcs in box with safe sponge inside,300pcs/ctn

Specifications

1. Data Hold Function ;
2. Deg/mm dual units switch;
3. User can set Alarm;
4. PC connection
5. Calibration , IP54

DMI310 Digital Bevel Box Inclinometer Angle Gauge Meter Protractor 360deg With Strong Magnets



General Description



  DMI320 is a digital display inclinometer which took RION company three years to develop professional for various industy angle controling and measuring.Thecore of this product is using the micro-mechanical control principle, dual-core measurement unit,can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI320 is a uniaxial 360deg measurement, resolution 0.01 °,accuracy 0.1 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI320 (SMI320) with the use of separate measurement, used in combination with the Division LCA series tiltsensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI320 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !



Features:

• Accuracy:0.1°
• Repeatability:0.05° Resolution:0.01°
• Measuring range:±180°
• Fast response
• Data hold on function
• Absolute/Relative measurement can switch
• Both sides and bottom can measure
• Double benchmark strong magnet installation
• Working Temperature : -20°~ +65°C
• Auto-angle interleaved compensation function
• Auto temperature drift compensation
• User can calibrate by himself
• Built-in rechargable industy battaries
• Night vision fours colors screen
•  IP54protection class
• °/mm Dual units switch funciton
• 100g High anti-impact



Application :

• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Cloud deck angle detection
• Production jig
• Medical instruments
• Building construction Automobile four-wheel testing

Parameter :







Product & Packing Photos :

















Our Company & Workshop View :



Certificates & Test Reports :







We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :



• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc

Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .



Payment ways :

T/T, WU or Paypal;



Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;



Quality Policy :

We gurantee 1 year in free charge .



Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
