Specifications
Low Cost Inclinometer1. Resolution:0.01
2. Measuring range:+/-180 or +/- 90 optional
3. Repeatability:0.0

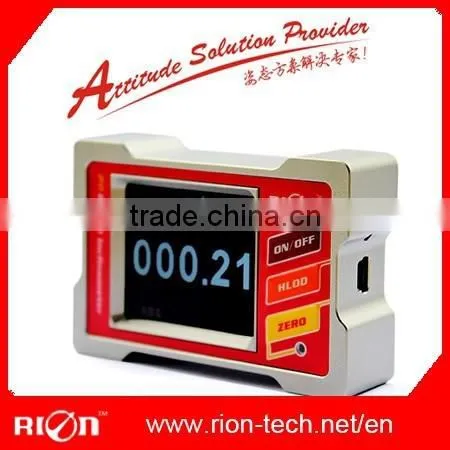

DMI410 Low Cost Digital Bevel Box / Digital Protractor / Inclinometer 360 degree with Magnet BASED USB1.1 Connection
General Description
DMI410 is a digital display inclinometer which took RION company three years to develop professional for various industy angle controling and measuring.Thecore of this product is using the micro-mechanical control principle, dual-core measurement unit,can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI410 is a uniaxial 360deg measurement, resolution 0.01 °,accuracy <0.1 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI410 (SMI410) with the use of separate measurement, used in combination with the Division LCA series tiltsensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI420 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !
Features:
- Accuracy:0.05°
- Repeatability:0.05° Resolution:0.01°
- Measuring range:±180°
- Fast response
- Data hold on function
- Absolute/Relative measurement can switch

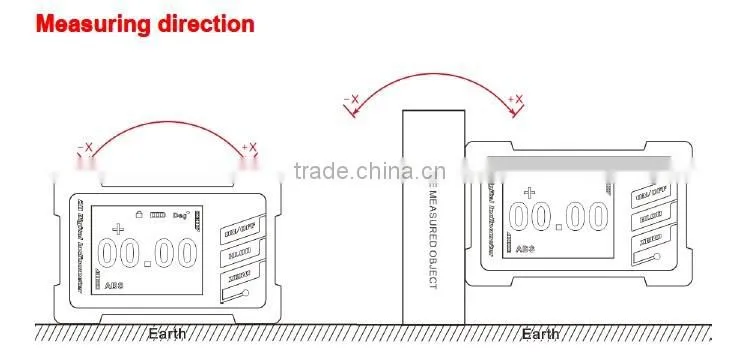

- Both sides and bottom can measure
- Double benchmark strong magnet installation
- Working Temperature : -20°~ +65°C
- Auto-angle interleaved compensation function
- Auto temperature drift compensation
- User can calibrate by himself
- Built-in rechargable industy battaries
- Night vision fours colors screen
- IP54protection class
- °/mm Dual units switch funciton
- 100g High anti-impact

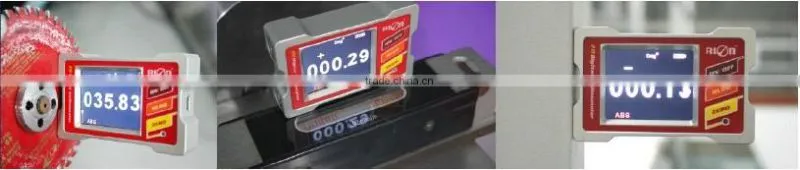

Application :
- Road slope
- Machinery installation
- Piping installation
- Industrial platform
- Turntable testing
- Cloud deck angle detection
- Production jig
- Medical instruments
- Building construction Automobile four-wheel testing
Parameter :

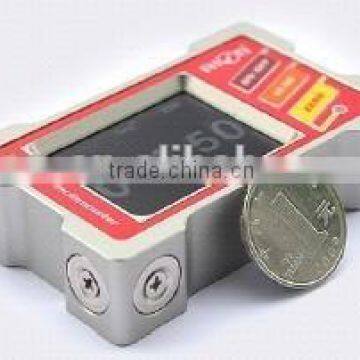

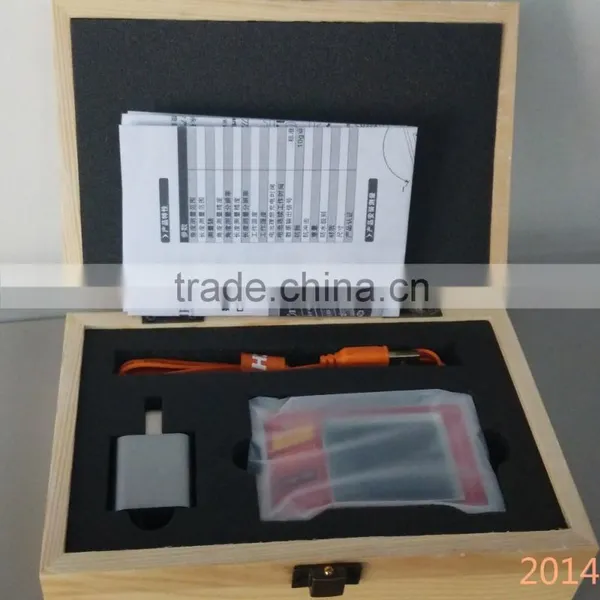

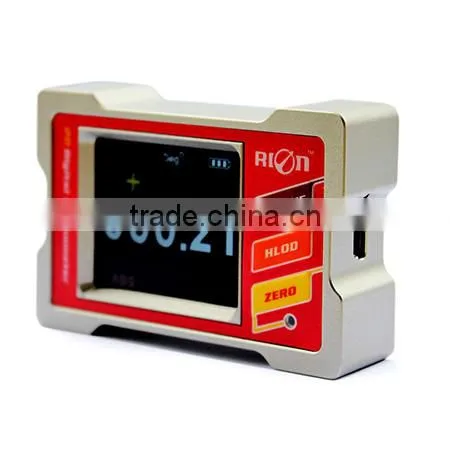

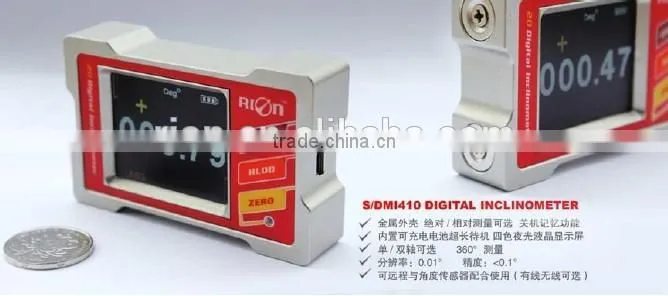

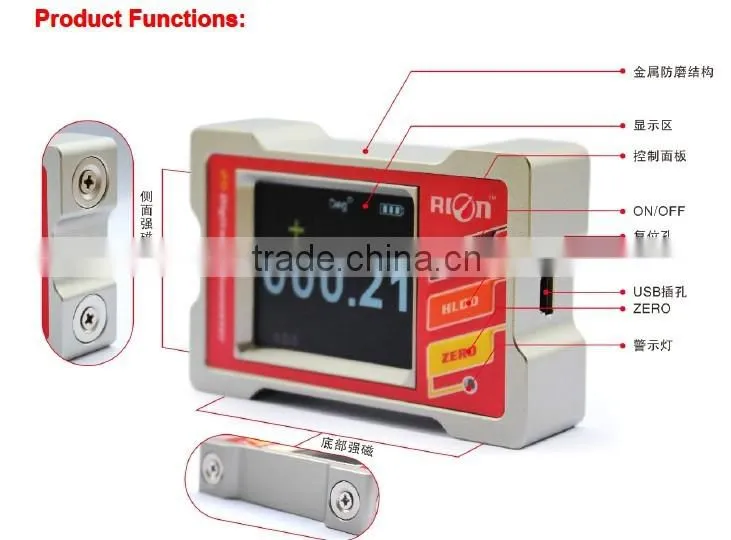

Product Photo :
