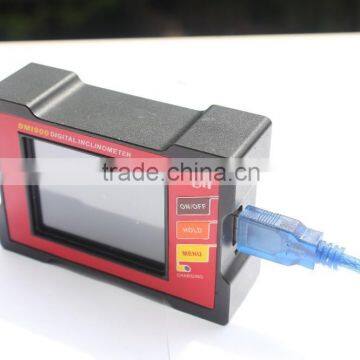

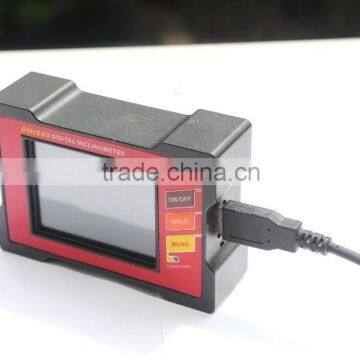

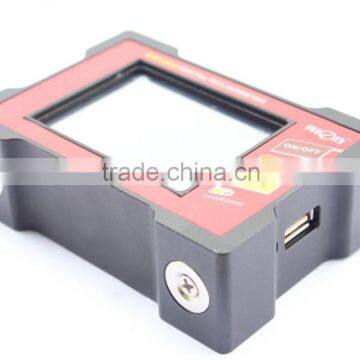

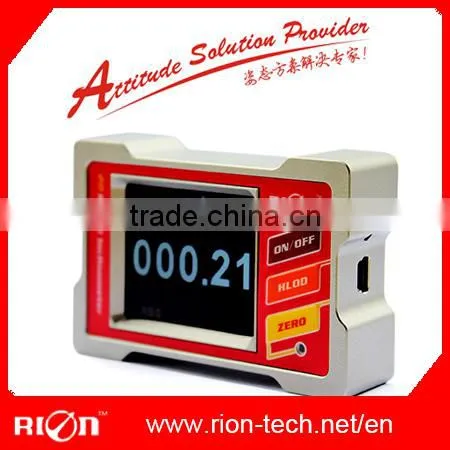

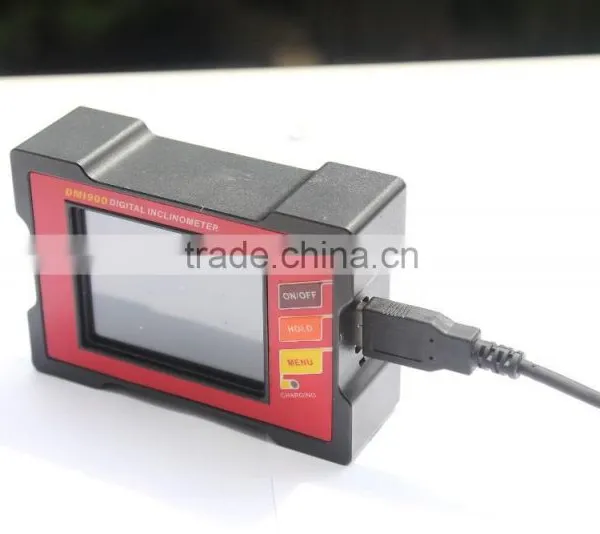

DMI810 High Precision Small Magnetic Sensor With Best Accuracy 0.003deg BIG MEASUREMENT Data Store , Calibration , deg/mm Supplier's Choice

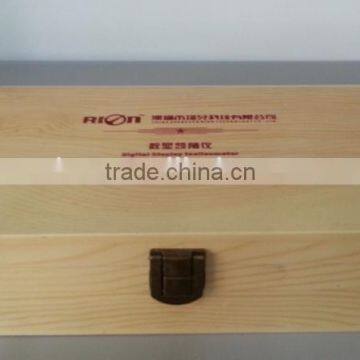

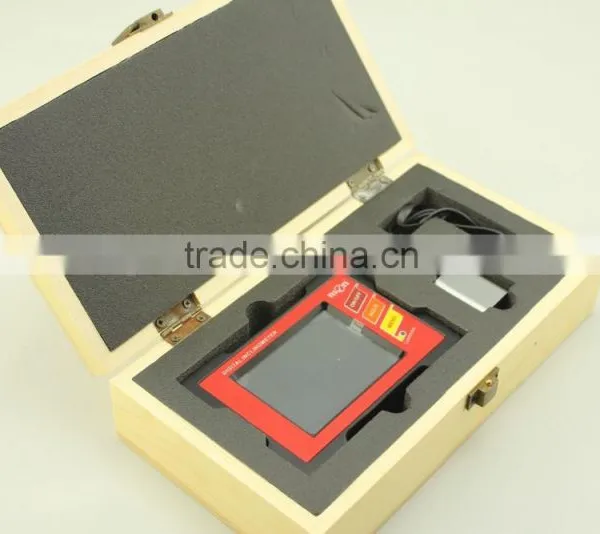

1pcs / inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

Specifications

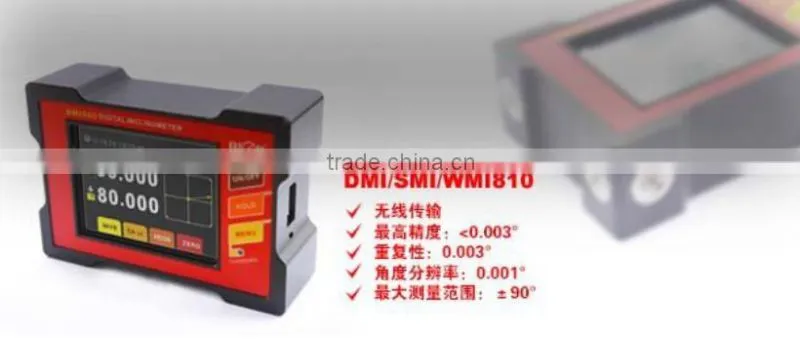

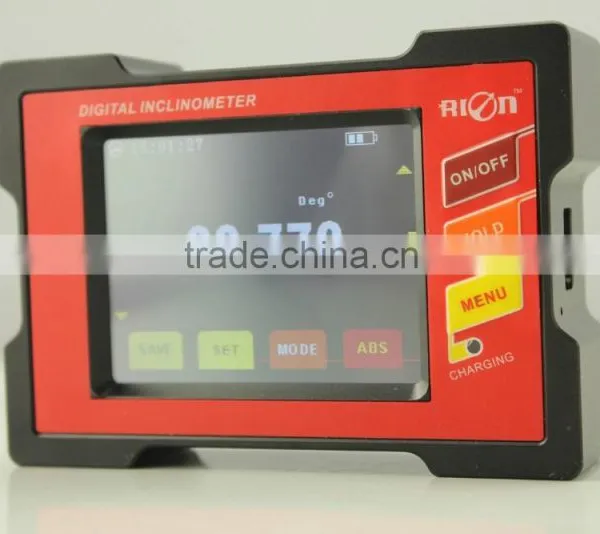

High Precision Digital Level
1.Accuracy:<0.003 deg
2.Angle resolution:0.001deg
3.Max measuring range: +/-90deg





DMI810 High Precision Small Magnetic Sensor With  Best Accuracy 0.003deg  BIG MEASUREMENT  Data Store , Calibration , deg/mm













General Description:

DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industy angle controling and measuring.The core of this product is using the micro-mechanical control principle...etc

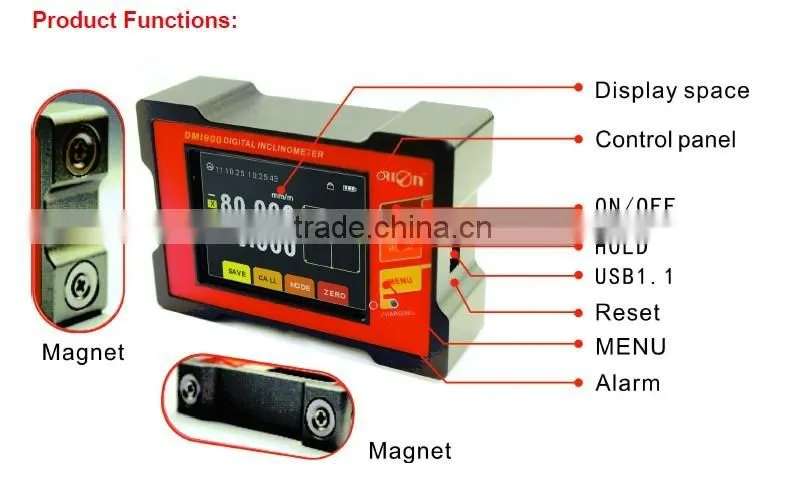

Features:

• Accuracy:<0.003°
• Repeatability:0.003°
• Angle resolution:0.001°
• Measuring range:±15°,+/-30°

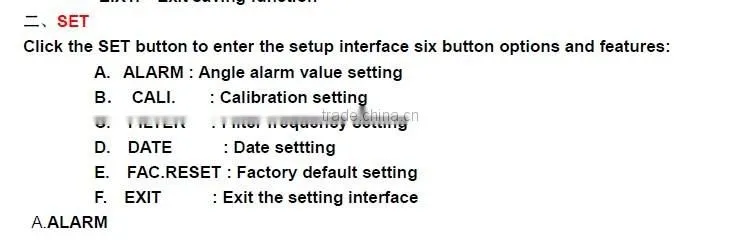

• User can set the alarm value by himself

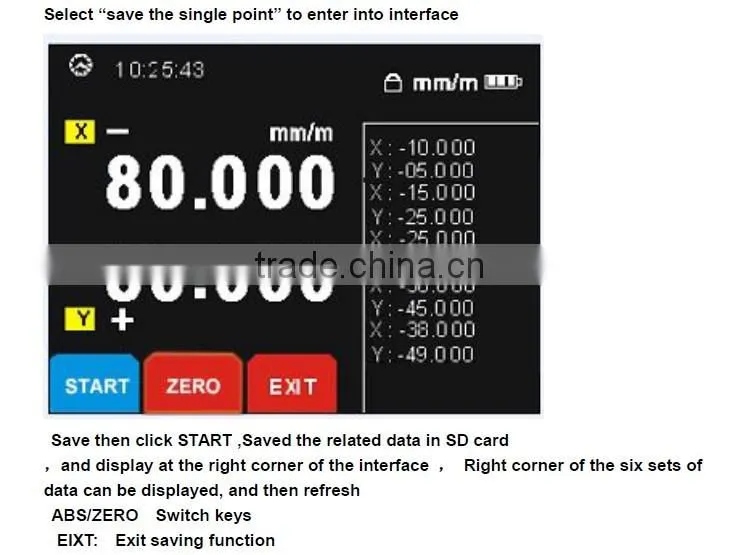

• Data store function
• Absolute/Relative measurement can switch

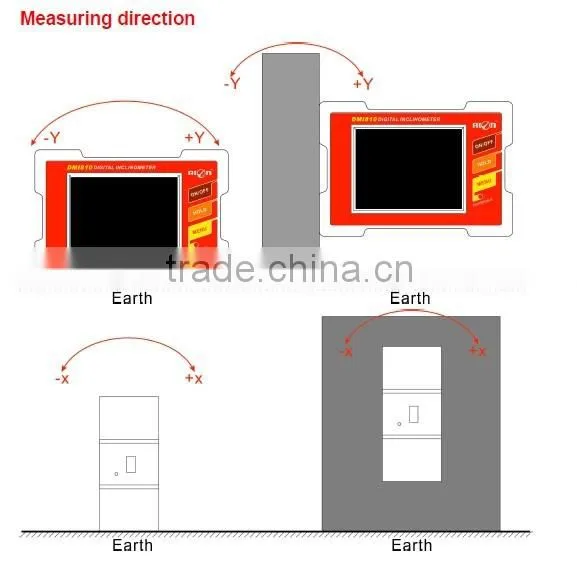

•  Both sides and bottom can measure
• Double benchmark strong magnet installation
• Working Temperature : -10°~ +65°C
• Auto-angle interleaved compensation function
• Auto temperature drift compensation
• User can calibrate ZERO by himself
• Built-in rechargable industy battaries
• Night vision fours colors screen
• IP54protection class
•  °/mm/m Dual units switch funciton
• Filter frequency optional
• Three kinds of measurement mode selectable (radian, angle, mm)



Application :

• Building construction
• Automobile four wheel testing
• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Pan unit angle detection
• Production jig
• Medical instruments







Specification :



Parameter	DMI810-15	DMI810-30	Unit
Angle Measuring range	DMI810: +/-15 °	DMI810: +/-30 °	°
MM measuring range	267	577	mm
Measuring axis	single axis	single axis
The highest measuring accuracy	<0.005deg (Full range)	<0.01(Full range)	°
Angle Measuring Resolution	0.001 °	0.001 °
MM measuring accuracy	0.1	0.2	mm

Three measurement mod      slectable	radiam , angle , mm    measuring can be selected
MM measuring resolution	0.02	mm

LCD color

64 true colors night vision display screen

LCD visible area size

L57.6*W43.2

mm











Related or Similar Products :







Model : DMI410 Single axis Digital Inclinometer

Measuring range: +/-180deg (0-360deg)

Angle Measurement Accuracy : 0.05deg(Full Measuring range)

Angle Measurement Resolution : 0.01deg



Length Measurement range : +/-999.99 mm/m

Length Measurement Accuracy : 0.9mm/m (Full Measuring range)

Length Measurement Resolution: 0.17mm/m



Data Output Signal : Standard 5Pin USB Connector Virtual Series Port

Power Supply : Rechargeable Lithium Battery

Battery Working Time : 8 hours When Charging Full Power

Product Size : L83*W53*H19.2mm

Product Weight : 125g

Protection : IP54

Product Enclosure Material : Metal Aluminum

Products Cert. : FCC/CE/CCC



Packing Method : Each in a Wooden Box

Packing size : L18*W12*H6CM

Packing Weight : 1KGS
