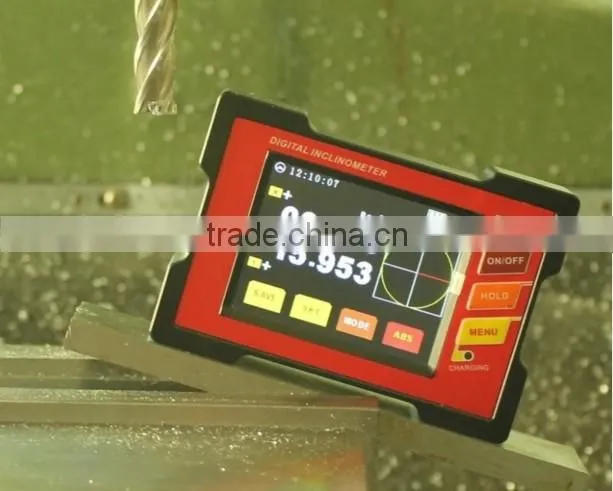

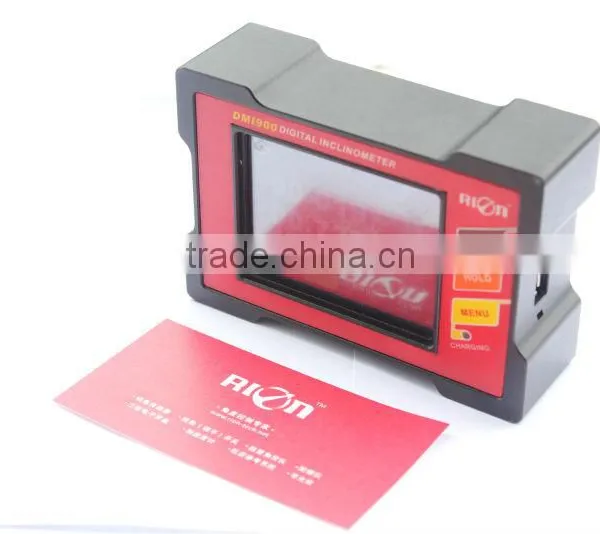

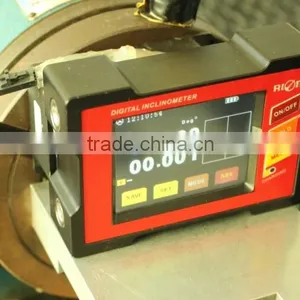

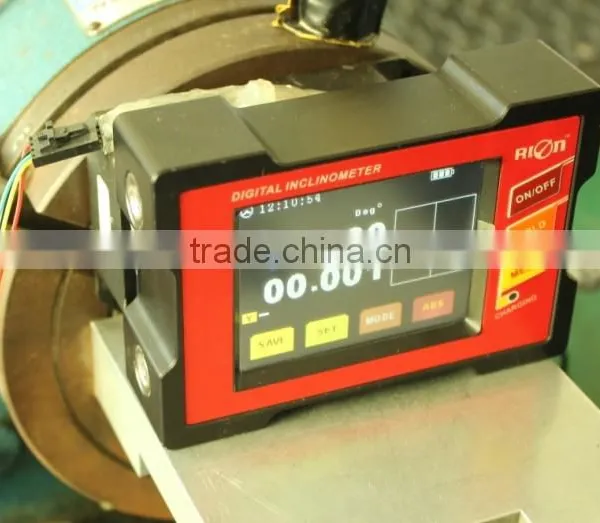

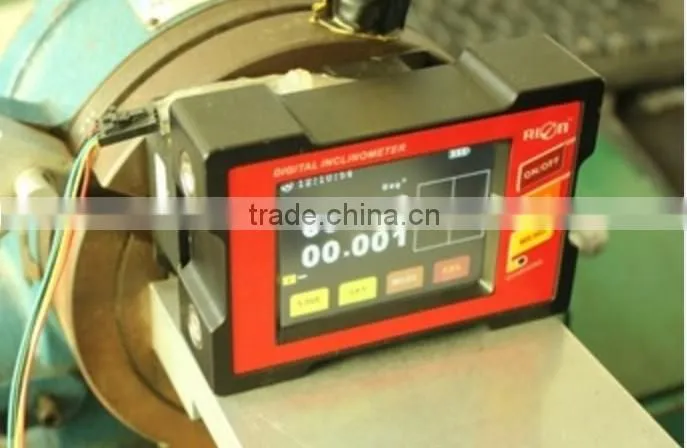

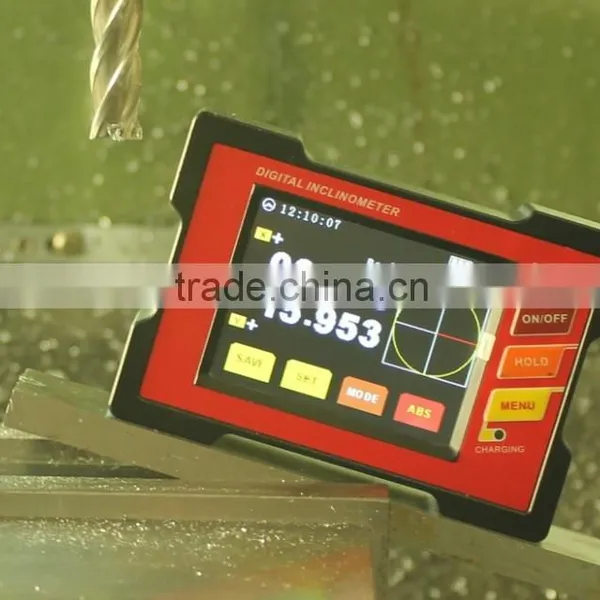

New Touch Screen Inclinometer High Precision With Data Store and Clibration
Features:
*Best accuracy:<0.003°
*Repeatability:0.003°
*Angle resolution:0.001°
*Maximum measuring range:±90°
*User can set the alarm value by himself
*Data store function
*Absolute/Relative measurement can switch
*Both sides and bottom can measure
*Double benchmark strong magnet installation
*Working Temperature : -10°~ +70°C
*Auto-angle interleaved compensation function
*Auto temperature drift compensation
*User can calibrate ZERO by himself
*Built-in rechargable industry batteries
*Night vision fours colors screen
* IP54 protection class
* °/mm/m Dual units switch function
*Filter frequency optional
*Three kinds of measurement mode selectable (radian, angle, mm)
Application :
*Building construction
*Automobile four-wheel testing
*Road slope
* Machinery installation
*Piping installation
*Industrial platform
*Turntable testing
*Pan unit angle detection
*Production jig
*Medical instruments
Technical data
|
Parameter |
DMI820-15 |
DMI820-30 |
Unit |
|
Angle Measuring range |
DMI820:±15 ° ; | DMI820:±30 ° ; | ° |
| MM measuring range | 267 | 577 | mm |
| Meausring axis | Single axis | Single axis | |
| The highest meausring accuracy | <0.005 (Full measuring range) | <0.01 (Full measuring range) | ° |
| Angle Measuring resolution | 0.001 | 0.001 | ° |
| MM measuring accuracy | 0.1 | 0.2 | mm |
| Three measurement mode selectable | radian, angle, mm measuring can be selected | ||
| MM measuring res | 0.02 | mm | |
| LCD | 64 true colors night vision display screen | ||
| LCD visible area size | L57.6*W43.2 | mm | |
| Working temperature | -10°~ +70ºC | °/ºC | |
| Working humidity | 85 | %RH | |
| Power supply | 3.7VCharging Lithium battery | V | |
| Ideal charging time | 3~4 | h | |
| Battery sustainable charging times | 11 | h | |
| Equipped with PC software | VC software | ||
| Data output signal | USB1.1 | ||
| Connect plug in | Standard 5Pin USB connector | ||
| Shock resistance | 10g@11ms,3Times/Axis(half sinusoid) | g | |
| Shock impact | 10grms,10~100Hz | g | |
| Weight | 300 | g | |
| Waterproof grade | IP54 | ||
| Material | Metal | ||

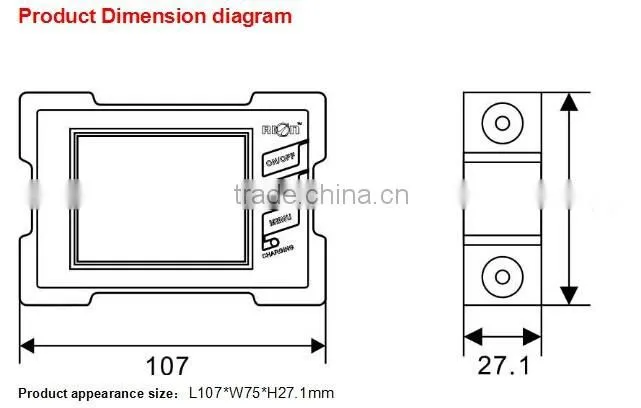

| Size | L107*W75*H27.1mm | mm | |
Ordering information :
| Item No. | Desc. |
| DMI820-15 | Standard dual-axis digital display inclinometer +/-15deg15 |
| DMI820-30 | Standard dual-axis digital display inclinometer +/-30deg |
E.g:DMI820-15 is standard Dual-axis digital display inclinometer with measuring range ±15°
ont-kerning:1.0000pt;" >E.g:DMI820-15 is standard Dual-axis digital display inclinometer with measuring range ±15°
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
