Inclinometer,inclination Tilt Sensor,electronic Inclinometer With Much High Precision 0.002deg

Specifications

inclinometer,inclination tilt sensor,electronic inclinometer with high precision 0.002deg

HCA518T is a single-axis inclinometer(tilt sensor,level sensor) with current output, standard current outputs 4-20 mA. Product adopts the newest MEMS production technology, so it can get the precise compensation and correction for the temperature and nonlinearity error. long term stability less than 0.002°, high accuracy ,small dimension, under strong shock and impact, inner radio frequency immunity and high anti-EM interference capability as well as long distance transmission stability data. In particular, it is suited for underground non-excavation machinery and another adverse industrial circumstances.
Besides technical parameter is the better than common product in the market, it adopts high-tech levels such as MCU, Water-proof, dust prevention and anti-corrosion PCB, import cable,wide temperature metal-clad ,and so on, to improve the stability and reliability.

Features:
1:Single-Axis inclinometer
2:4-20mA Output interface
3:Measuring range:±1-±85°
4:Long term stability<0.002°
5:DC 9-36V wide voltage power supply
6:Wide Temperature-40+100
7:Shockproof>20000g
8:Resolution0.0025°
9:Full Metal Jacket,IP68 protection

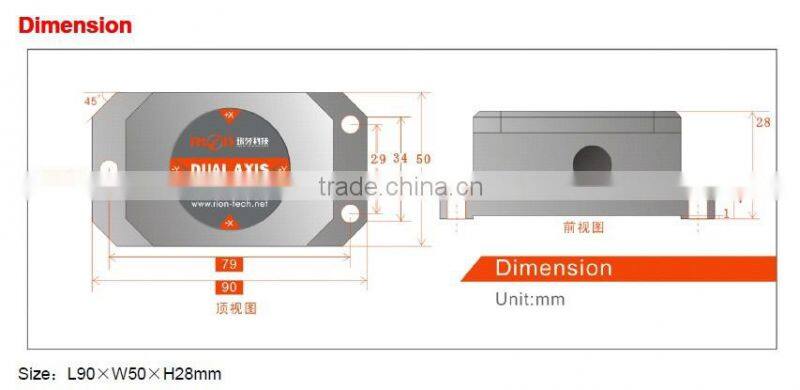

10:small size(91*40*26mm)

Applications:
1.Push bench shield machine deviation
2.Special vehicles automatic leveling
3.Aerial Platform Vehicle,lifter
4.Medical facilities angle control
5.Satellite positioning Search
6.Underground drill posture navigate
