Specifications
electronic inclinometer1.Dual-axis current-type
2.Long term stability<0.02degrees
3.IP67
4.DC 9-36V power supply
SCA128T High stability electronic inclinometer current output inclinometer dual axis inclinometer
SCA128T is a dual-axis electronic inclinometer(tilt sensor,clinometer) with current output, standard current outputs 4-20 mA. Product adopts the newest MEMS production technology, so it can get the precise compensation and correction for the temperature and nonlinearity error. long term stability less than 0.014°, high accuracy ,small dimension, under strong shock and impact, inner radio frequency immunity and high anti-EM interference capability as well as long distance transmission stability data. In particular, it is suited for underground non-excavation machinery and another adverse industrial circumstances.
Besides technical parameter is the better than common product in the market, it adopts high-tech levels such as MCU, Water-proof, dust prevention and anti-corrosion PCB, import cable,wide temperature metal-clad ,and so on, to improve the stability and reliability.
Features:
1:Dual-Axis inclinometer
2:4-20mA Output interface
3:Measuring range:±1-±85(degrees)
4:Long term stability<0.02(degrees)
5:DC 9~36V wide voltage power supply
6:Wide Temperature-40~+100(degrees celsius)
7:Shockproof>20000g
8:Resolution0.0025(degrees)
9:Full Metal Jacket,IP67 protection
10:small size(91*40*26mm)
Applications:

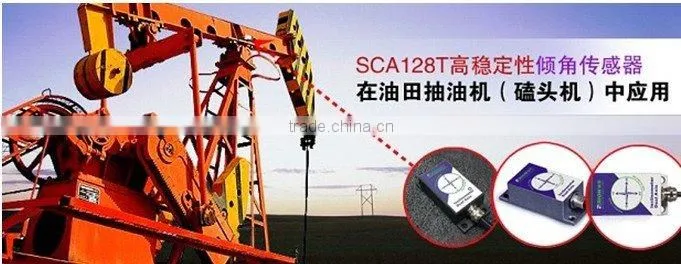

1:Push bench shield machine deviation
2Special vehicles automatic leveling
3:Platform Vehicle,lifter
4:Medical facilities angle control
5:Satellite positioning Search
6:Underground drill posture navigate
