Standard Single Axis Inclinometer, Clinometer, Clination Sensor Output Through Serial Interface RS232 ,RS485 or TTL.

Specifications

Standard single axis inclinometer, clinometer, clination sensor Output through serial interface RS232 ,RS485 or TTL.

Desc.

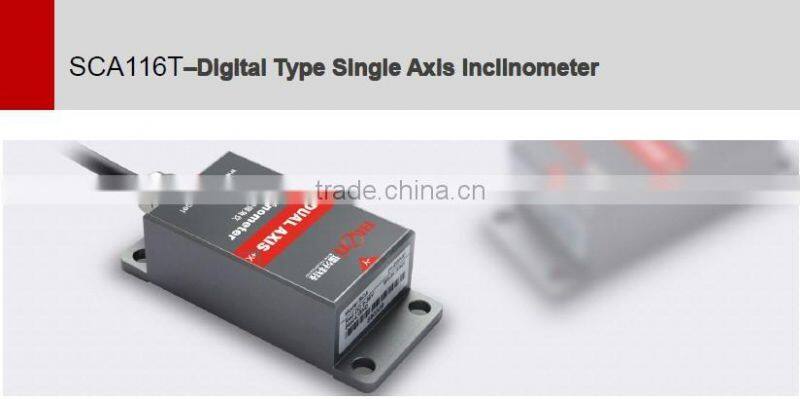

SCA116T is a Single-Axis inclinometer which is researched and produced by Shenzhen RION with high accuracy and high stability , The maximum measuring range is±85°. This series Output through serial interface RS232 ,RS485 or TTL.

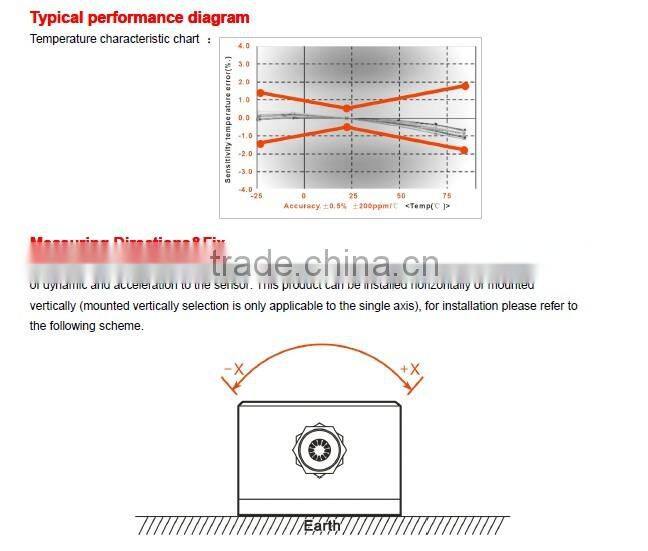

As the built-in ADI’s high-precision digital temperature sensor, Therefore, the output angle value have been revised again within the working temperature, To ensure high repeatability of products in wide temperature.
Sensor angle response speed is 20Hz, and has five filters. Product belongs to real industral grade and is suited for various of adverse industrial control circumstances it features stable and reliable performance, good expansibility and many kinds of output ways to be chosen.

Features:

1:Single-axis inclinometer
2:Output RS232,RS485,TTL serial interface
3:Measuring range:±1-±85(degrees)
4:Long term stability<0.02(degrees)
5:DC 9~36V wide voltage power supply
6:Wide Temperature-40~+100(degrees celsius)
7:Shockproof>20000g

8:Resolution0.01(degrees)
9:Full Metal Jacket,IP67 protection

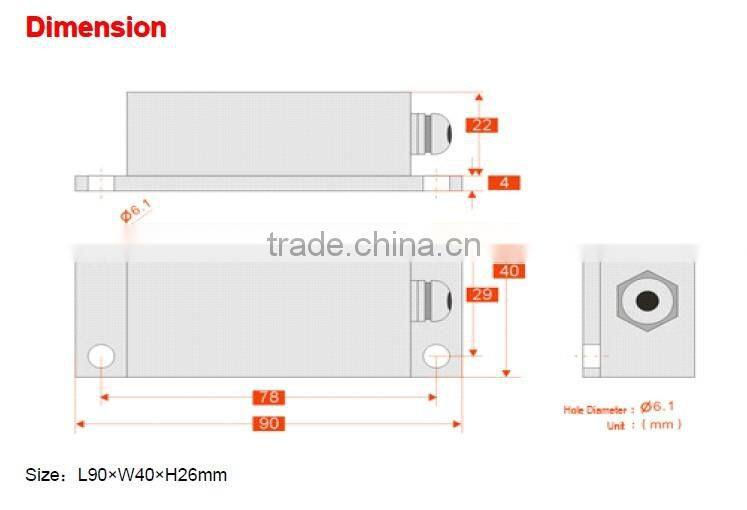

10:small size(91*40*26mm)

Applications:

1:Satellite positioning Search
2:Rail-mobile monitoring
3:Engineeringmechanical measurement of dip angle
4:Mining mechanism,oil-well drilling equipment
5:Radardetection of vehicle platform
6:Gun Barrel angle measurement in early shooting
