+/-5V or +/-10V High Precision Inclinometer Level Sensor With Excellent Temp Compensation

+/-5V or +/-10V High Precision  Inclinometer Level Sensor With Excellent Temp Compensation

General Description

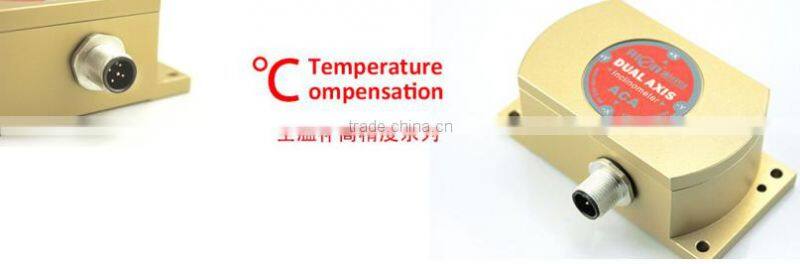

 ACA620T is a high precision & full temperature compensation dual-axis inclinometer with analog voltage output, high-precision 24bit A / D differential converter inside the product, to ensure the the products output voltage signal linearity, and users no need to do linearity correction by themselves in the future , install then to use, stability and reliability ! In addition, because of ACA620T system integrates high-resolution temperature sensor, with the MCU central processing system secondary temperature compensation, full temperature zero drift can be controlled to 0.0008 °/°C ,normal temperature small measuring range the most accurate up to 0.002 °, in domestic the counterparts products with absolute competitive advantage.

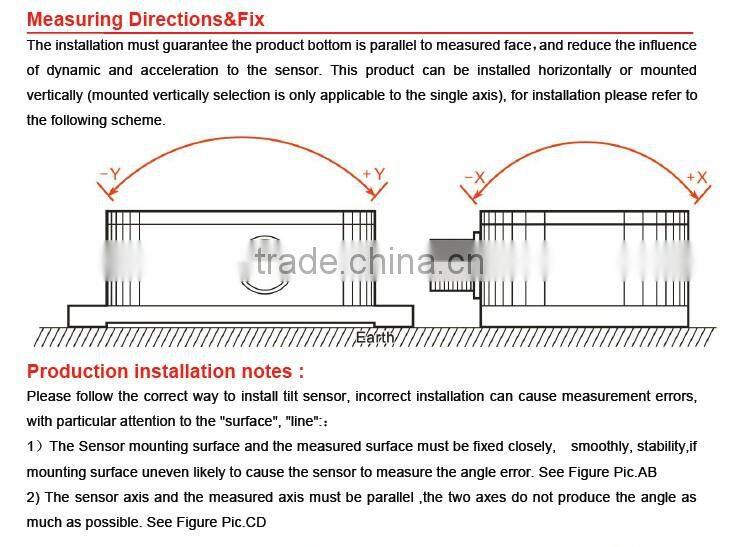

   Non-contact installation features make ACA610T with superior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to operate, easy to install. Newest MEMS high-technology for production , high-precision, small size, with strong ability resistance to external electromagnetic interference and to withstand shock and vibration, has been widely used in the industrial and military fields!

Features

• Dual-Axis Inclinometer
• Measuring Range :±1~±30° optional
• Accuracy: refer to the technical data
• Wide voltage input: 9~36V
• Wide temperature working: -40~+85°C
• IP67 protection class
• Highly anti-vibration performance >2000g
• High Resolution: 0.001°
• Temperature drift 0.0008°/°C

Application:

• Engineering vehicles automatic leveling
• Bridge & dam detection
• Precise instrument level control
• Medical facilities angle control
• Underground drill posture navigation
• Railway gauging rule , gauge equipment leveling
• Based on the angle direction measurement
• Geological equipment inclined monitoring
• Directional satellite communications antenna pitching angle measurement

Parameters

Our Company & Workshop View :

Certificates & Test Reports :

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc

Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .

Payment ways :

T/T, WU or Paypal;

Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;

Quality Policy :

We gurantee 1 year in free charge .

Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
