Specifications

HCA526T Dual Axis digital Inclinometer slope sensor

Description:

HCA526T is a Dual-Axis inclinometer (tilt sensor,angle sensor)which is researched and produced by Shenzhen RION with resolution:0.001degree , The maximum measuring range is±85degree. This series Output through serial interface RS232 ,RS485 or TTL.
As the built-in ADI's high-precision digital temperature sensor, Therefore,the output angle value have been revised again within the working temperature, To ensure high repeatability of products in wide temperature.
Sensor angle response speed is 20Hz, and has five filters. Product belongs to real industral grade and is suited for various of adverse industrial control circumstances it features stable and reliable performance, good expansibility and many kinds of output ways to be chosen.

Features:
1:Dual-Axis inclinometer

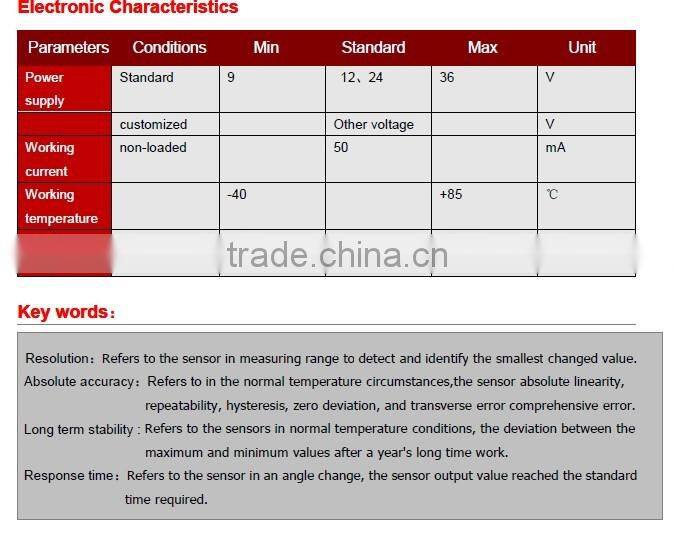

2:DC 9-36V wide voltage power supply
3:Shockproof>20000g
4:Output RS232,RS485,TTL serial interface
5:Full Metal Jacket,IP68 protection

6:Resolution0.001°
7:Wide Temperature-40-+85(Degrees Celsius)
8:small size(90*45*29mm)

Applications:
1:Satellite positioningSearch
2:Rail-mobile monitoring
3:Engineeringmechanical measurement of dip angle
4:Mining mechanism,oil-well drilling equipment
5:Radardetection of vehicle platform
6:Gun Barrel angle measurement in early shooting
