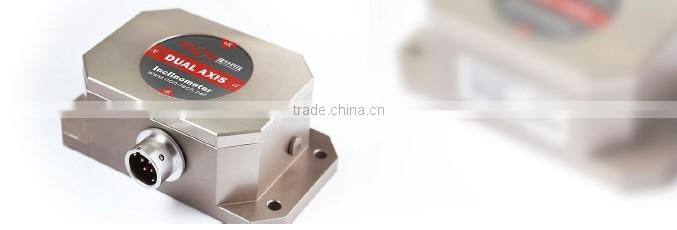

High Precision MEMS Inclinometer Sensor With 4-20mA Stable Data Output
General Description
HCA528T inclinometer use the dynamic zero test compensation technology to ensure product Quick Launch, high resolution ,stable data, good capacity to bear shock & vibration, built-in anti-RF, adopts anti-electromagnetic interference circuit to ensure that the output signal to a higher anti-interference ,in addition to this product is better than the similar market product on software technical data, on the reliability and stability the product is also using the high-end application-level MCU,three-proofing PCB board, imported cable, wide temperature shielded metal enclosure and other measures to improve product industrial level,to ensure the product can be long-term & safetyextraordinary operation in harsh environments.
Feature
- Dual-Axis Inclinometer
- Measuring Range :±1~±90° optional
- Wide voltage input: 9~36V
- Output interface : 4-20mA
- Wide temperature working: -40~+85°C
- IP67 protection class
- Highly anti-vibration performance >2000g
- Resolution: 0.001°

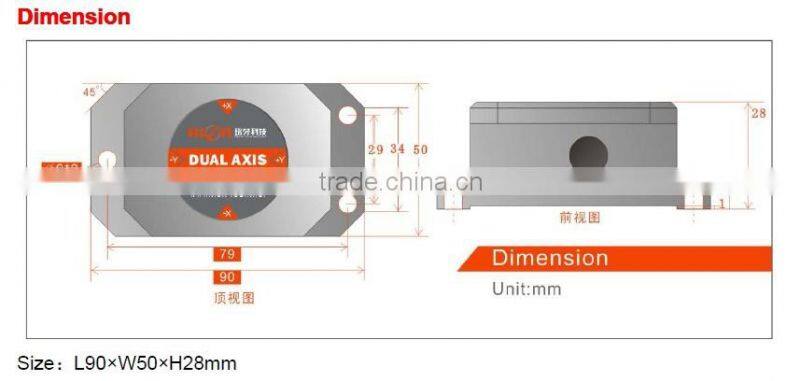

- Small Volume : L90×W50×H28mm(customized)
Application:
- Engineering vehicles automatic leveling
- Bridge & dam detection
- Aerial platform vehicle,lifter safety & protection
- Medical facilities angle control
- Underground drill posture navigation
- Railway gauging rule , gauge equipment leveling
- Mining machinary, oil-well drilling equipment
- Geological equipment inclined monitoring
- Directional satellite communications antenna pitching angle measurement
Technical Data :
Measuring range |
|
±10 |
±30 |
±60 |
±90 |
° |
Measuring axis |
|
X,Y |
X,Y |
X,Y |
X,Y |
|
Zero output |
0°Output |
12 |
12 |
12 |
12 |
mA |
Resolution |
|
0.001 |
0.001 |
0.001 |
0.001 |
° |
Absolute accuracy |
|
0.005 |
0.01 |
0.02 |
0.05 |
° |
|
Long term stability |
|
0.01 |
0.02 |
0.05 |
0.08 |
|
|
Zero temperature coefficient |
-40~85° |
±0.002 |
±0.002 |
±0.002 |
±0.002 |
°/℃ |
Sensitivity temperature coefficient |
-40~85° |
≤50 |
≤50 |
≤50 |
≤100 |
ppm/℃ |
Power on time |
|
0.5 |
0.5 |
0.5 |
0.5 |
S |
Response time |
|
0.05 |
0.05 |
0.05 |
0.05 |
s |
|
Response frequency response frequence |
|
1~20 |
1~20 |
1~20 |
1~20 |
Hz |
Electromagnetic compatibility |
According to EN61000 and GBT17626 |
|||||
MTBF |
≥50000 hours/times |
|||||
Insulation Resistance |
≥100M |
|||||
Shockproof |
100g@11ms,3Times/Axis(half sinusoid) |
|||||
Anti-vibration |
10grms,10~1000Hz |
|||||
Protection glass |
IP67 |
|||||

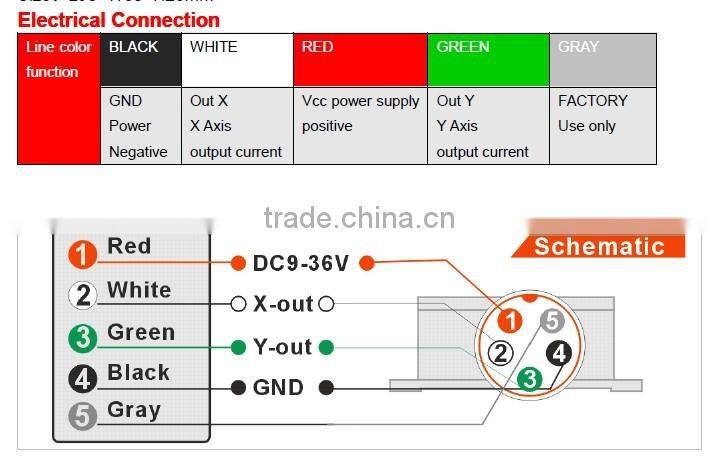

Cables |
Standard 1M length,wearproof,wide temperature, Shielded cables4*0.4mm2 air-plug connector |
|||||
Weight |
150g(without cable) |
|||||
* This Technical data only list ± 10 °, ± 30 °, ± 60 °, + 90 ° series for reference, other measuring range please refer to the adjacent parameters
Our Company & Workshop View :
Certificates & Test Reports :
