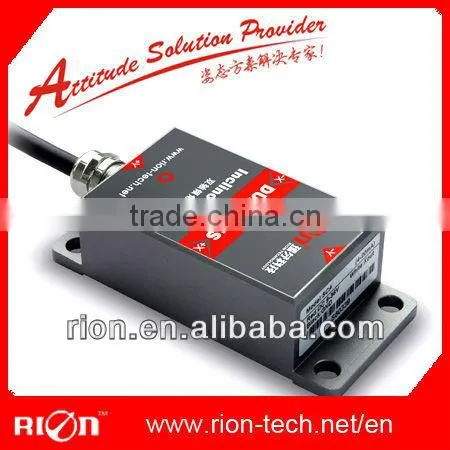

SCA116Z Standard Digital Inclinometer tilt sensor angle meter slope sensor with Z axis measurement +/-90deg measuring range
General Description
SCA116Z is a high accuracy & high performance inclinometer launched by RION company to the Z – Axis measurement application, in industrial applications, it is unpredictable the measured object inclination towards X or Y direction ,which means that the 360-degree horizontal posture may tilt to any one direction, under this application if you use single-axis X or dual-axis XY unable to accurately measure, the Z-axis tilt can meet customer demand, integrated operation of the X-axis and Y-axis data, get the Z-axis tilt angle. SCA116Z built-in high-precision 16bit A / D differential converter, through 5 filtering algorithm, the output interface RS485, RS232, RS422, TTL, PWM are optional.Because of Built in ADI company’s high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor, to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response standards up to 18Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability, and a variety of output options. Suitable for a variety of harsh industrial control environment.
Features:
Inclination tilt measuring
Measuring Range :±1~±90° optional
Accuracy: refer to the technical data
Wide voltage input: 9~36V
Wide temperature working: -40~+85°C
Resolution: 0.01°
IP67 protection class
Highly anti-vibration performance >2000g
Direct lead cable interface
Small size :90×40×26mm(customized)
Output mode RS232/RS485/TTL/ CAN 2.0B (optional)
Application:
Satellite positioning Search
Rail-mobile monitoring
engineering mechanical measurement of dip angle
oil-well drilling equipment
Radar detection of vehicle platform
Underground drill posture navigation
Gun Barrel angle measurement in early shooting
Pier posture measuring
Rubber hose flexural measuring
Technical Data
Parameters |
Conditions |
SCA116Z-10 |
SCA116Z-30 |
SCA116Z-60 |
SCA116Z-90 |
Unit |
Measuring rang |
|
±10 |
±30 |
±60 |
±90 |
° |
Measuring axis |
|
X |
X |
X |
X |
|
Resolution |
|
0.01 |
0.01 |
0.01 |
0.01 |
° |
Absolute accuracy |
|
0.02 |
0.05 |
0.08 |
0.1 |
° |
|
Long term stability |
|
0.05 |
0.05 |
0.05 |
0.05 |
|
|
Zero temperature coefficient |
-40~85° |
±0.006 |
±0.006 |
±0.006 |
±0.006 |
°/°C |
Sensitivity temperature coefficient |
-40~85° |
≤100 |
≤100 |
≤100 |
≤100 |
ppm/°C |
Power on time |
|
0.5 |
0.5 |
0.5 |
0.5 |
S |
Response time |
|
0.05 |
0.05 |
0.05 |
0.05 |
s |
Output rate |
5Hz,15Hz,35Hz,50Hz,100Hz can be setting |
|||||
Output signal |
RS232/RS485/RS422/TTL/PWM/CAN/MODBUS |
|||||
EMC |
According to EN61000 and GBT17626 |
|||||
MTBF |
≥50000hours/times |
|||||
Insulation Resistance |
≥100M |
|||||
Shockproof |
100g@11ms,3Times/Axis(half sinusoid)) |
|||||
Anti-vibration |
10grms,10~1000Hz |
|||||
Protection glass |
IP67 |
|||||
Cables |
Standard 1M length,wearproof,grease proofing,wide temperature, Shielded cables 4*0.4mm2 |
|||||
Weight |
120g(without cable) |
|||||
*This Technical data only list ± 10 °, ± 30 °, ± 60 °, + 90 ° series for reference, other measuring range please refer to the adjacent parameters
Mechanical Parameters
Connectors:1m lead cable(customized)
Protection glass:IP67
Enclosure material :Aluminum Oxide
Installation :4*M6 screws
