ACA610T Single-Axis High Precision Analog Inclinometer With Full Temperature Compensation (voltage Output)

Specifications

ACA610T Single-Axis High Precision Analog Inclinometer With Full Temperature Compensation (voltage output)

General Description

  ACA610T is a high precision & full temperature compensation single-axis inclinometer with analog voltage output, high-precision 24bit A / D differential converter inside the product, to ensure the the products output voltage signal linearity, and users no need to do linearity correction by themselves in the future , install then to use, stability and reliability ! In addition, because of ACA610T system integrates high-resolution temperature sensor, with the MCU central processing system secondary temperature compensation, full temperature zero drift can be controlled to 0.0008 °/°C ,normal temperature small measuring range the most accurate up to 0.002 °, in domestic the counterparts products with absolute competitive advantage.

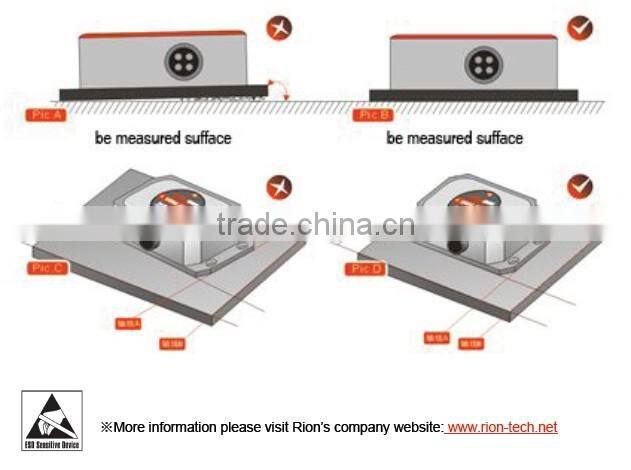

  Non-contact installation features make ACA610T with superior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to operate, easy to install. Newest MEMS high-technology for production , high-precision, small size, with strong ability resistance to external electromagnetic interference and to withstand shock and vibration, has been widely used in the industrial and military fields!

Features

• Single-Axis Inclinometer
• Measuring Range :±1~±30° optional

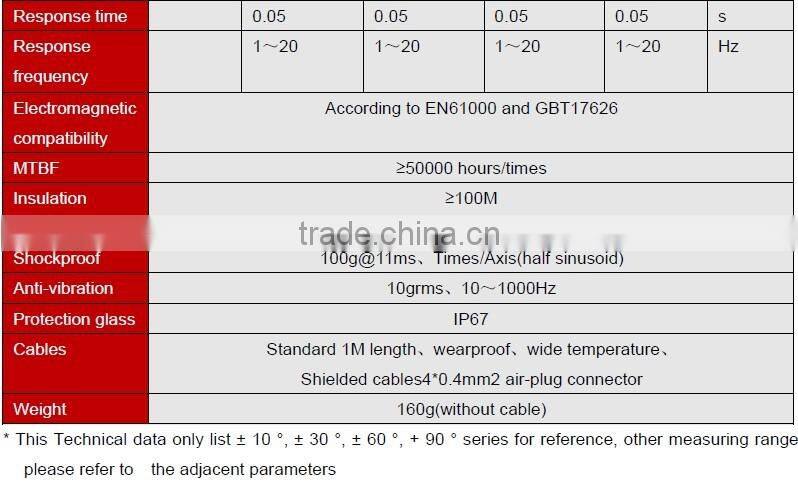

• Accuracy: refer to the technical data
• Wide voltage input: 9~36V

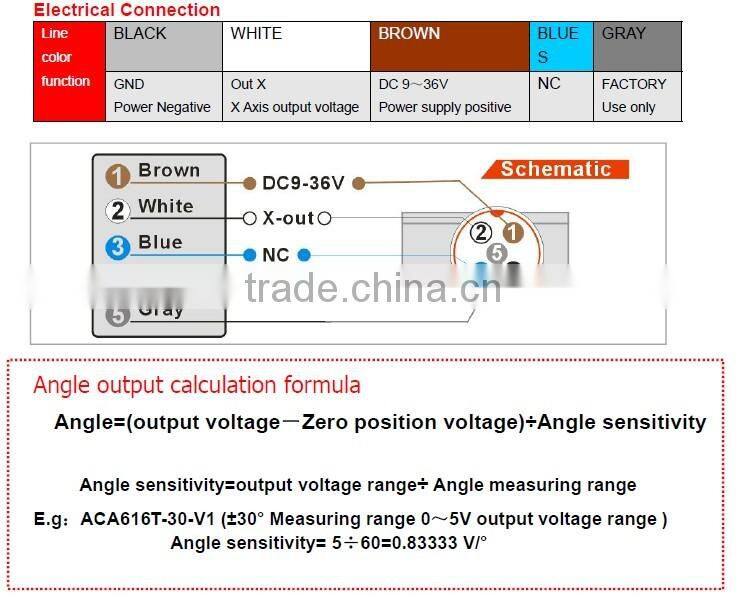

• Output interface :0~5V
• Wide temperature working: -40~+85°C
• IP67 protection class
• Highly anti-vibration performance >2000g
• High Resolution: 0.001°

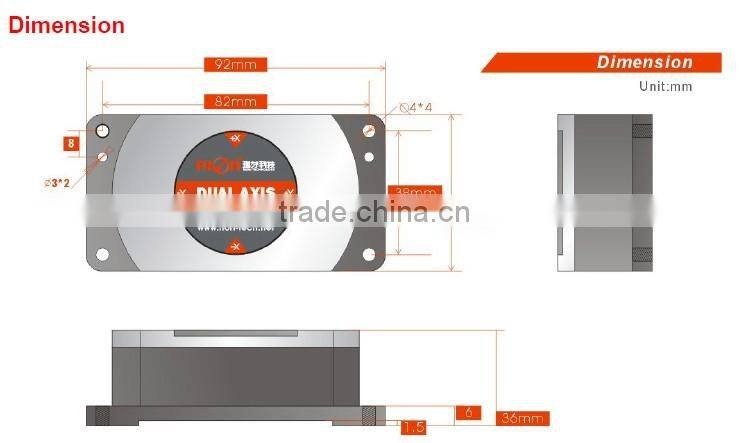

• Small Volume : L90mm×W50mm×H28mm(customized)

Application:

• Engineering vehicles automatic leveling
• Bridge & dam detection
• Precise instrument level control
• Medical facilities angle control
• Underground drill posture navigation
• Railway gauging rule , gauge equipment leveling
• Based on the angle direction measurement
• Geological equipment inclined monitoring
• Directional satellite communications antenna pitching angle measurement
