Industrial Electronic Compass Sensor With Heading 4-20mA and RS232/RS485 Output
Features:
- Heading accuracy: 0.3°~0.5°
- Roll angle measuring range :±180°
- Tilt angle resolution: 0.1°
- Tilt angle accuracy: 0.2°
- With hard magnetic ,soft magnetic and angle compensation
- Size: L:125×W:22×H:24 mm
- Standard RS232/RS485/TTL output interface
- Wide temperature : -40°C~+85°C
Application :
- Satellite antenna search satellite
- Marine navigation surveying and mapping
- GPS integrated navigation
- Antenna servo control
- Gun emission system
- Infrared imager
- Laser range finder
- Map for plotter
- ROV underwater robot navigation
- Oceanography measurement instruments
- Special occasion robot
- Unmanned aircraft
Parameter :
Compass heading parameter | The best heading accuracy | 0.3° tilt <10° |
|
| 1.0° tilt <180° |
| Resolution | 0.1° |
Compass tilt parameter | Pitch accuracy | 0.1°<15°(Measuring range) |
|
| 0.1°<30°(Measuring range) |
|
| 0.1°<60°(Measuring range) |
|
| 0.2°<90°(Measuring range) |
| Pitch tilt range | ±85° |
| Roll accuracy | 0.1°<15°(Measuring range) |
|
| 0.1°<30°(Measuring range) |
|
| 0.1°<60°(Measuring range) |
|
| 0.2°<180°(Measuring range) |
| Roll tilt range | ±180° |
| Resolution | 0.1° |
Calibration | Hard iron calibration | Yes |
| Soft iron calibration | Yes |
| Magnetic field interference calibration method | 24 points(3D calibration) |

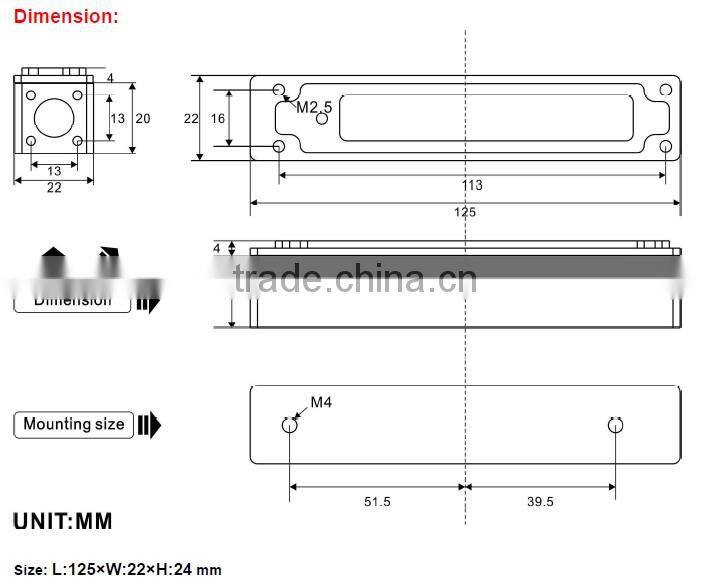

Physical features | Dimension | L:125 W:22 H:24 mm |
| Weight | 20g |
| RS-232/RS485/TTL interface connector | 5PIN connector |
Interface features | Start delay | <50MS |
| Maximum output rate | 20Hz/s |
| Communication rate | 2400 to19200baud |
| Output format | Binary high performance protocol |
Analog output | 4-20mA FS(0-360deg) | Only for heading 4-20mA output |
Power | Power supply | (Default)DC 12-36V |
| Current(Maximum) | 40mA |
| Ideal mode | 28mA |
| Sleep Mode | TBD |

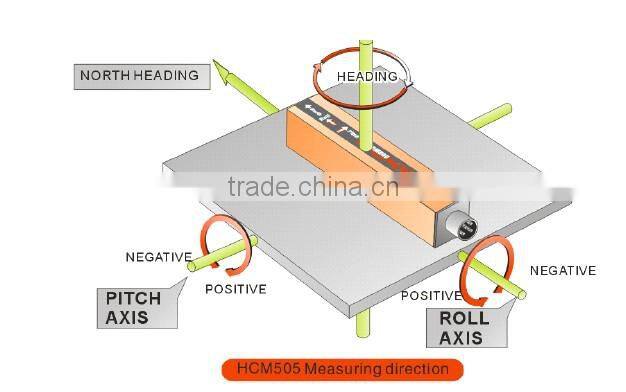

Fix & Measuring Direction :

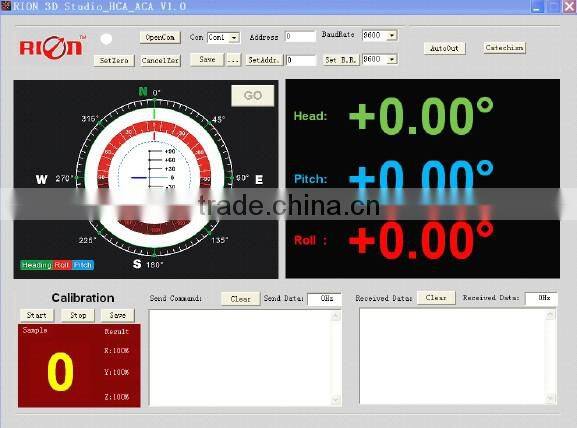

Product Software ref.
