DCM301B High Accuracy 3D Compass Sensor Circuit Board E Compass Sensor PCB Board With Heading Accruacy 0.5deg Tilt Angle +/-90

1pcs/polybag, 20pcs/inner box with sponge , 200pcs/ctn

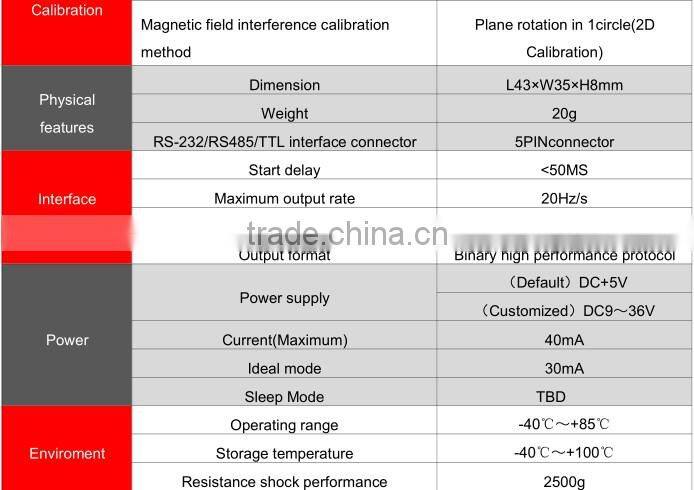

Specifications

3D Compass Sensor Circuit board
1.Heading accuracy:0.5~0.8 deg
2.Tilt angle accuracy: 0.3deg
3.Tilt angle resolution: 0.1d

DCM301B High Accuracy 3D Compass Sensor Circuit Board E Compass Sensor PCB Board With Heading  Accruacy 0.5deg Tilt Angle +/-90





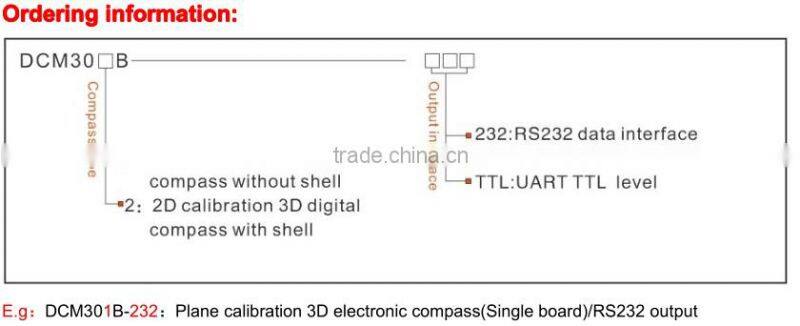

 General Description

   DCM301B is a high precision 3D electronic compass using the 2D plane calibration algorithm, the calibration no need 3D posture tilt , just flat-situ rotation a circle to complete the calibration process.  Using USA patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM301B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±90°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.

  DCM301B with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields , high shock resistance, high reliability makes the compass work properly in extremely harsh environments, and is more suitable for nowadays miniaturization military high-precision measurement integrated control system.



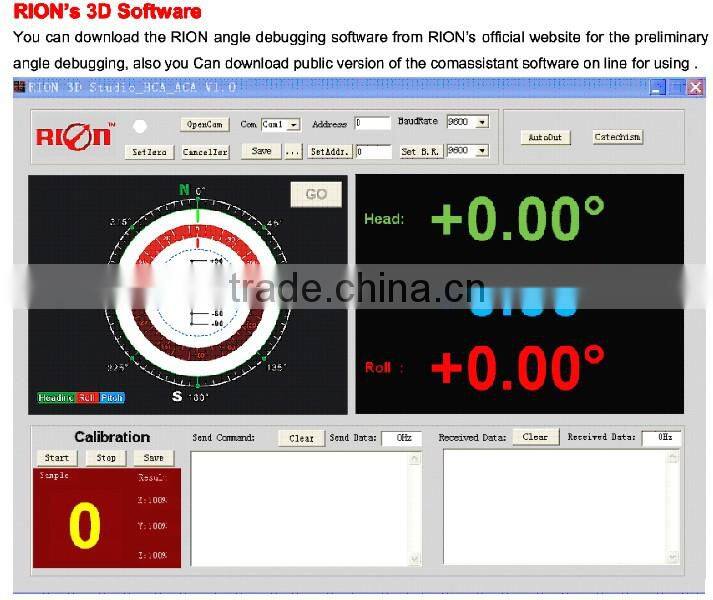

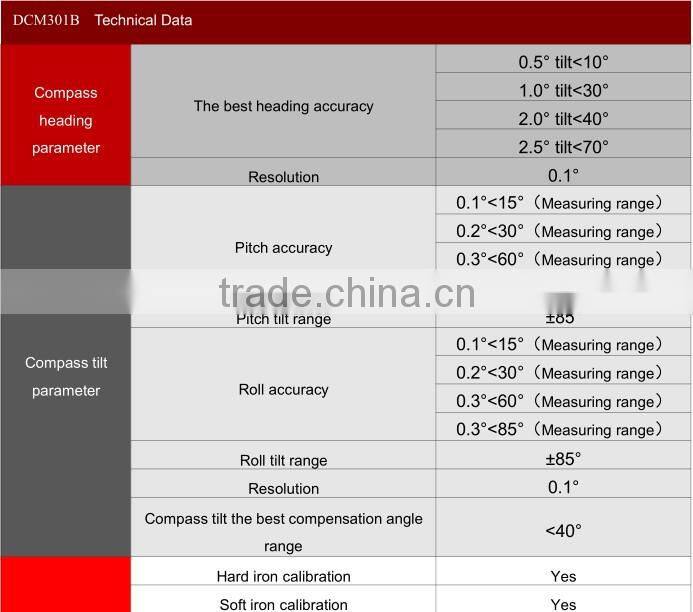

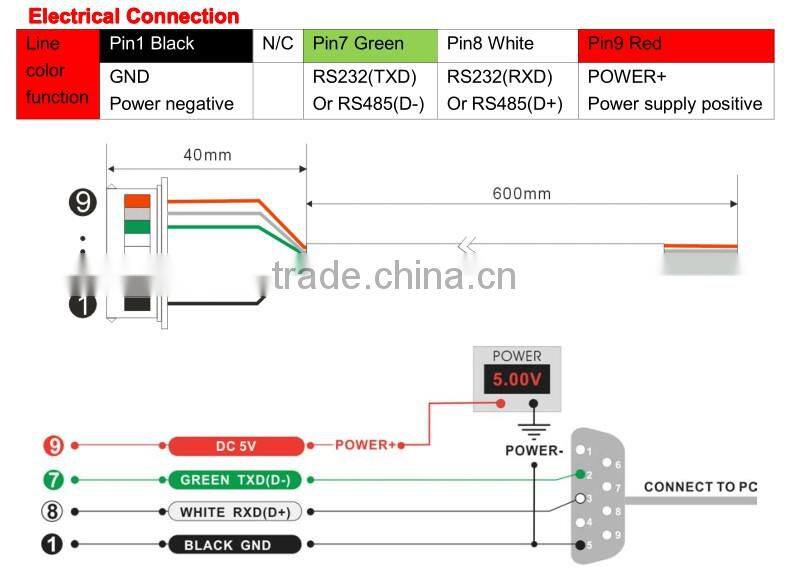

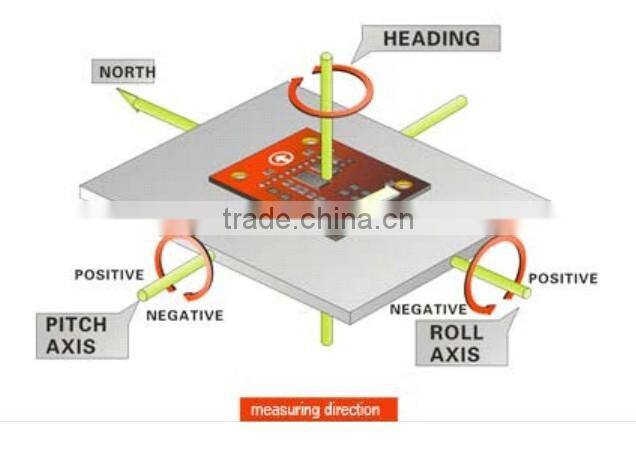

Features:

• Heading accuracy:0.5°~0.8°
• Tilt angle measuring range :±90°
• Tilt angle resolution: 0.1°
• Tilt angle accuracy: 0.3°
• Wide temperature :  -40°C~+85°C

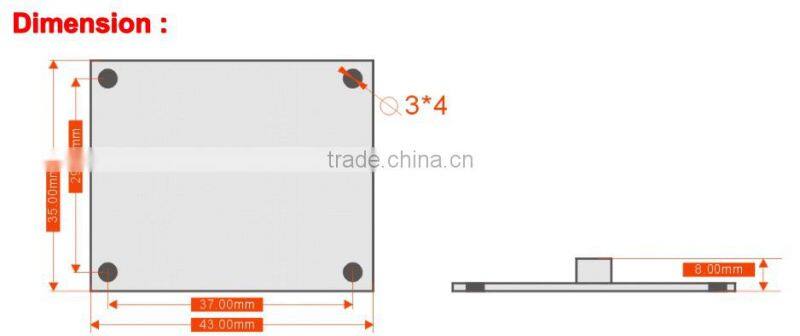

•  Size:  L43×W35×H8mm
• With hard magnetic ,soft magnetic and angle compensation
• DC 5V power supply
• 2D tilt calibration
• Standard RS232/RS485/TTL output interface



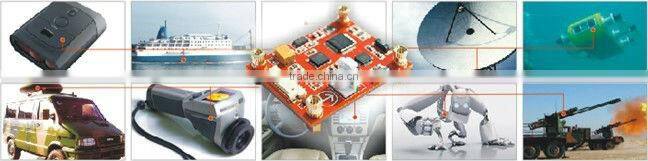

 Application :

• Satellite antenna search satellite
• Marine navigation surveying and mapping
• GPS integrated navigation
• Antenna servo control
• Gun emission system
•  Infrared imager
• Laser range finder
• Map for plotter
• ROV underwater robot navigation
• Oceanography measurement instruments
• Special occasion robot
• Unmanned aircraft









Our Company Views:



We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests



 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc

Other more information please visit our website :  or www.rion-tech.us
