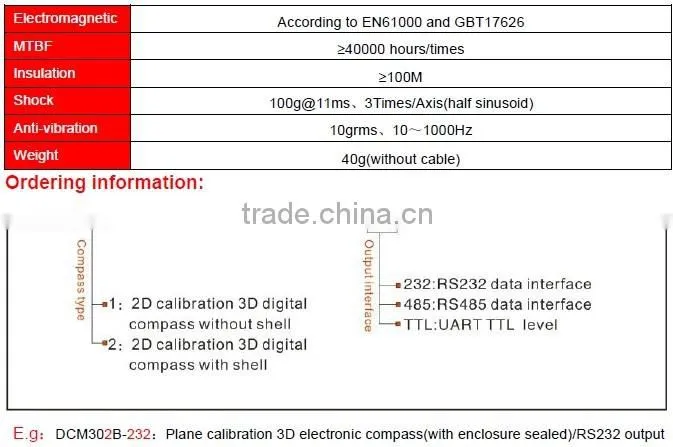

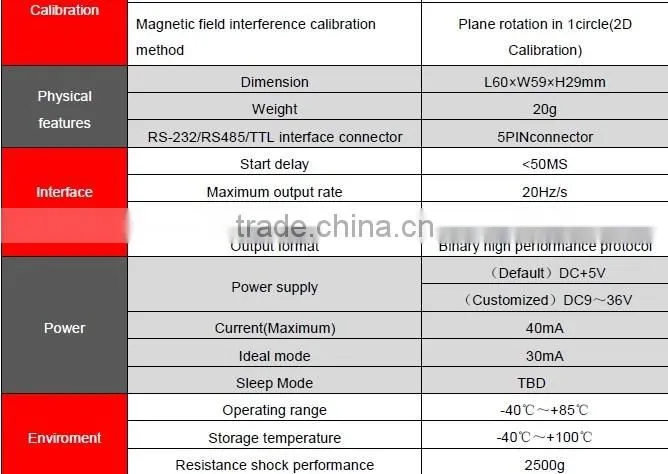

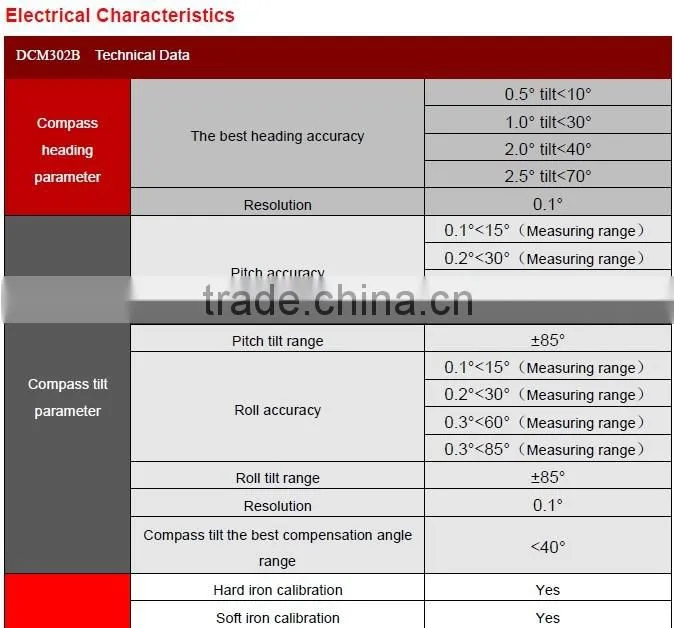

Specifications

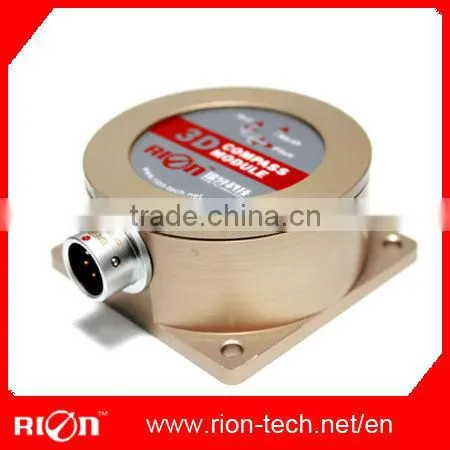

High Quality 180deg Tilt Compensated 3D Compass Module For Quad Copter Using

General Description:

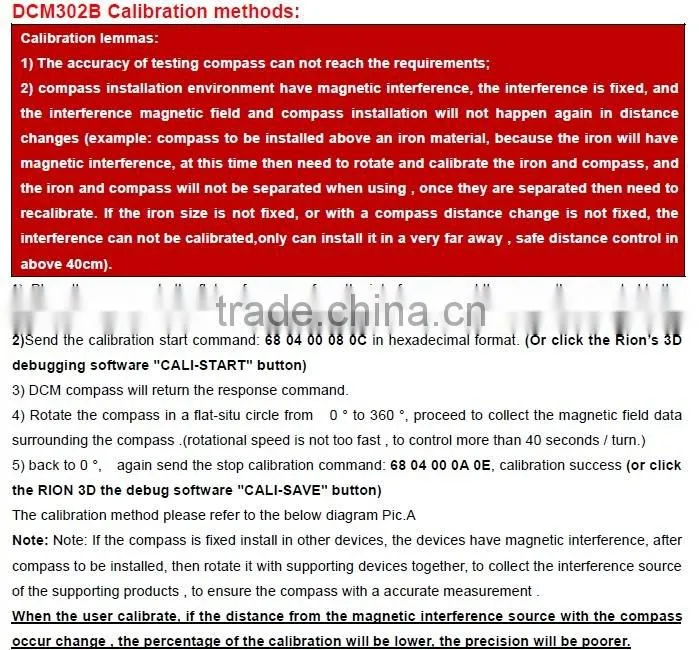

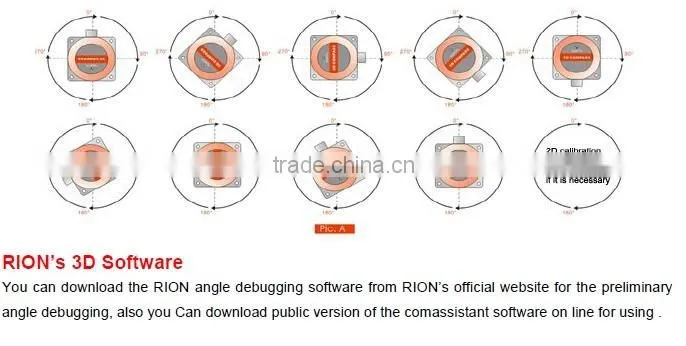

DCM302B is a high precision 3D electronic compass using the 2D plane calibration algorithm, the calibration no need 3D posture tilt , just flat-situ rotation a circle to complete the calibration process.  Using USA patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM302B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±85°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.

  DCM302B with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields , high shock resistance, high reliability makes the compass work properly in extremely harsh environments, and is more suitable for nowadays miniaturization military high-precision measurement integrated control system.

Features:

• Heading accuracy:0.5°~0.8°
• Tilt angle measuring range :±90°
• Tilt angle resolution: 0.1°
• Tilt angle accuracy: 0.1°
• Wide temperature : -40°C~+85°C

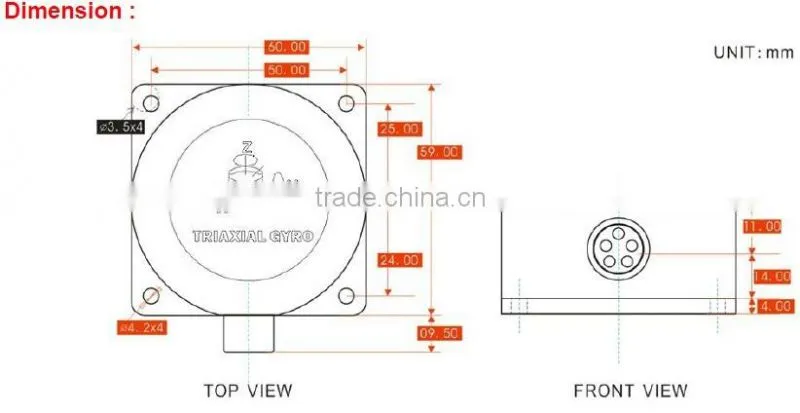

• Size: L60×W59×H29mm
• With hard magnetic ,soft magnetic and angle compensation
• DC 5V power supply
• Standard RS232/RS485/TTL output interface
• IP 67 protection class

Application :

• Satellite antenna search satellite
• Marine navigation surveying and mapping
• GPS integrated navigation
• Antenna servo control
• Gun emission system
• Infrared imager
• Laser range finder
• Map for plotter
• ROV underwater robot navigation
• Oceanography measurement instruments
• Special occasion robot
• Unmanned aircraft

Related & Similiar Products :

Model : HCM505B High Accuracy 3D Electornic Compass Sensor

Roll Tilt Angle : +/-180deg (0-360deg)

Pitch Tilt  Angle : +/-90deg

Heading Measuring Range : 360deg

Heading Accuray : 0.3~0.5deg

Power supply : DC5V /9-36V (Optional)

Size: L113*W20*H20mm

 Model : DCM301B 3D Electornic Compass Sensor Module (PCB board)

Roll / Pitch Tilt  Angle : +/-90deg

Heading Measuring Range : 360deg

Heading Accuray : 0.5~0.8deg

Power supply : DC5V

Size: L43*W35*H8mm

 Model : DCM260B 3D Electornic Compass Sensor

Roll / Pitch Tilt Angle  : +/-90deg

Heading Measuring Range : 0-360deg

Heading Accuray : 0.8deg

Power supply : DC5V /9-36V (Optional)

Size: L33*W27*H8mm

 Model : DCM250B 3D Compass Sensor PCB Board

Roll / Pitch Tilt Angle : +/-90deg

Heading Measuring Range : 0-360deg

Heading Accuray : 0.8deg

Power supply : DC5V

Size: L33*W27*H8mm

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc
